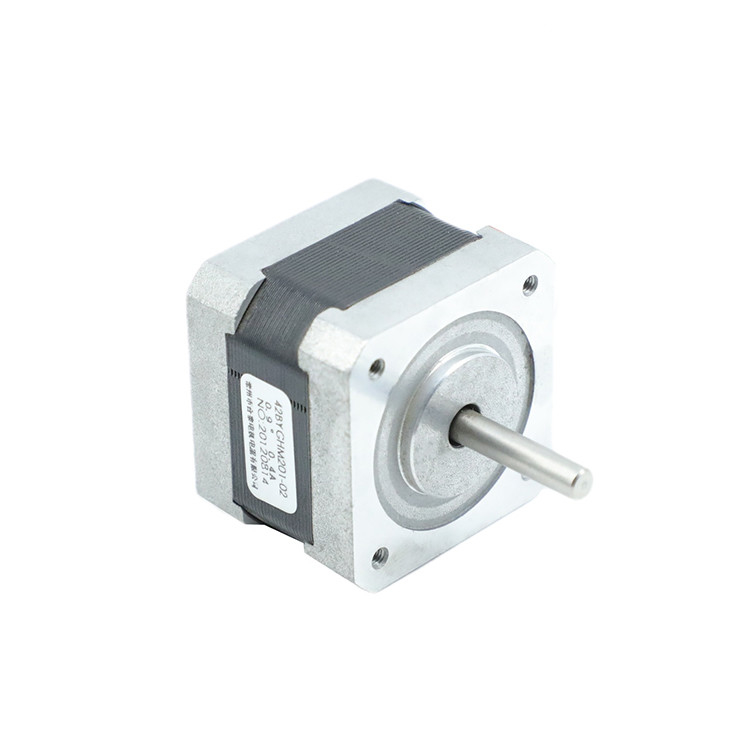

Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGHM607-16
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 0.9 °
Lead Wire 4 Rated Voltage 2.6V
Resistance 1.5 Ω Rated Current 1.7A
Inductance 3.2mH Holding Torque 3.2 Kg.cm
Motor Height 40 Mm Motor Weight 0.24 Kg
High Light

42mm Nema17 Stepping Motor

,

Hybrid Nema17 Stepping Motor

,

2.6V Hybrid Stepper Motor 42mm

Leave a Message
Product Description

Hetai Nema17 Hot Sale 42mm Manufacture Direct Supply High Quality Stepping Motor Hybrid Stepper Motor



Advantages of stepper motors:
1. The angular displacement of the stepper motor is proportional to the number of electrical pulses, so the speed of the stepper motor is also proportional to the pulse frequency. Within the load capacity range of the stepper motor, its step angle and speed are not affected by voltage fluctuations and load changes, nor are they affected by environmental conditions such as temperature, air pressure, shock and vibration, which are only related to the pulse frequency. Therefore, stepper motors are suitable as actuators in open-loop systems.
2. The stepper motor has good control performance. By changing the level of the pulse frequency, the speed of the stepper motor can be adjusted in a wide range and can be quickly started, braked and reversed. If several stepper motors are controlled with the same frequency pulse power supply, they can run synchronously.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
0.9°
Lead wire
4
Voltage (V)
2.6
Current (A/Phase)
1.7
Holding Torque (Kg.cm)
3.2 Kg.cm



Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 0


Mechanical Dimension Of Hybrid Stepper Motor

Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 1



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 3



New showroom of Hetai

Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 4Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 5



Market Range of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada

High quality material
Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 7Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 8

Stator Winding Machine
Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 9Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 10


CNC Center

Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 11Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 12Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 13



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17



Certificate of Hetai
Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 16Hybrid Nema17 Stepping Motor 42mm 2.6V 1.7A 17
