Contact Person : Nora
WhatsApp : +8618661153149

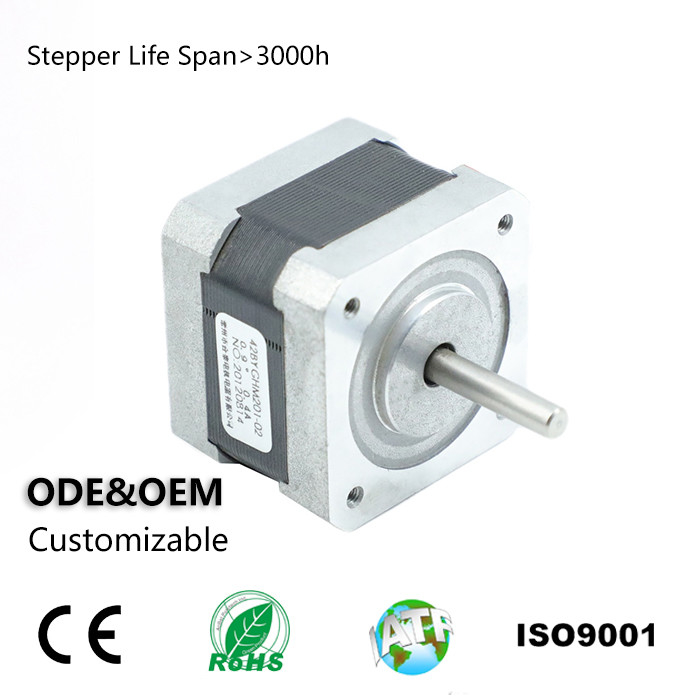

Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGHM619-08
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 0.9 °
Lead Wire 4 Rated Voltage 11.2V
Resistance 28 Ω Rated Current 0.4A
Inductance 60mH Holding Torque 2.8 Kg.cm
Motor Height 40 Mm Motor Weight 0.24 Kg
High Light

42BYGHM Series Stepper Motor

,

11.2V Hybrid Stepper Motor

,

42mm Nema 17 Stepper Motor

Leave a Message
Product Description

Nema17 Hot Sale 42mm 42BYGHM Series Manufacture Direct Supply 11.2V 0.4A High Quality Hybrid Stepper Motor



Stepper motor is an open-loop control motor that converts electrical pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems and is widely used. . In the case of non-overload, the speed and stop position of the motor only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. When the stepper driver receives a pulse signal, it drives the stepper motor to press The set direction is rotated by a fixed angle, called "step angle", and its rotation is performed step by step at a fixed angle.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
0.9°
Lead wire
4
Voltage (V)
11.2
Current (A/Phase)
0.4
Holding Torque (Kg.cm)
2.8 Kg.cm



Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 0


Mechanical Dimension Of Hybrid Stepper Motor

Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 1



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 3



New showroom of Hetai

Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 4Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 5



Market Range of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada

High quality material
Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 7Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 8

Stator Winding Machine
Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 9Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 10


CNC Center

Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 11Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 12Nema17 42BYGHM Series Hybrid Stepper Motor 42mm 11.2V 0.4A 13



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition
