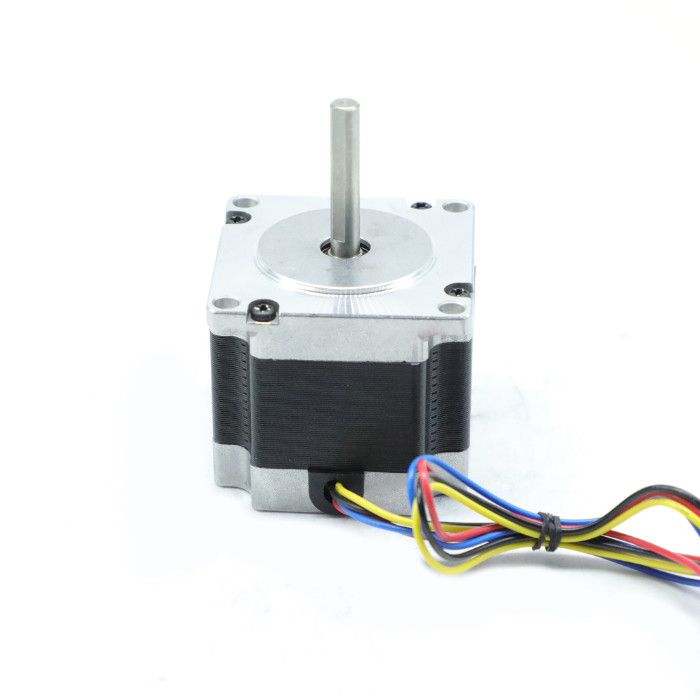

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg

  • 57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg
  • 57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg
  • 57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg
  • 57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg
  • 57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg
  • 57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg
  • 57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg
Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 57HN67-001-15
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 5.76V
Rated Current 1.6A Resistance 3.6Ω
Inductance 12mH Holding Torque 19 Kg.cm
Motor Height 67 Mm Motor Weight 0.70 Kg
High Light

Nema23 Hybrid Stepping Motor

,

1.8deg Hybrid Stepping Motor

,

High Torque 1.8deg Stepper Motor
Leave a Message
Product Description

Hetai 57HN67-001-15 hot sale stepper motor high torque good quality nema23 hybrid stepping motor

What is Hybrid Motor?
Definition: The combination of two motors like a permanent magnet and variable reluctance is known as a hybrid motor. The working principle of a hybrid motor is, the rotor in this motor is magnetized axially similar to a permanent magnet stepper motor, whereas the stator is energized electromagnetically similar to a variable reluctance stepper motor. So it is an actuator that changes electrical pulses to angular displacement.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
4
Voltage (V)
5.76
Current (A/Phase)
1.6
Holding Torque (Kg.cm)
19 Kg.cm




57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 0


Mechanical Dimension Of Hybrid Stepper Motor

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 1



Market Range of Hetai

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 2

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada



Hetai's Customers

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 3



A variety of types of stepper motors are available for you to choose, support customization.

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 4



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 5

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



High Quality Material
57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 6
57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 757HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 8

Stator Winding Machine
57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 957HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 10
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.

Stepper motor automatic assembly line
57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 11



Silent Room&Laser Range Finder

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 12

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 13



CE Certification of Stepper motor

57HN67-001-15 Nema23 Hybrid Stepping Motor High Torque 1.8deg 14



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
