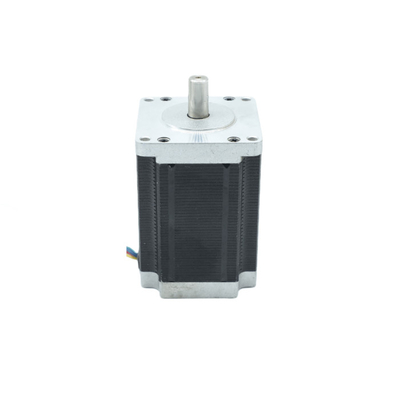

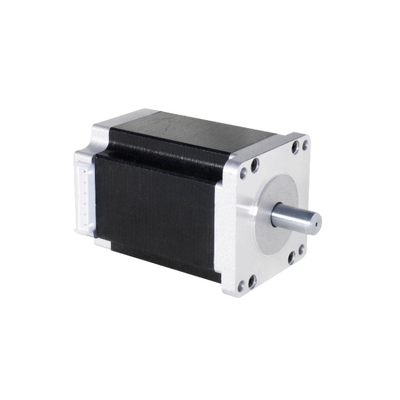

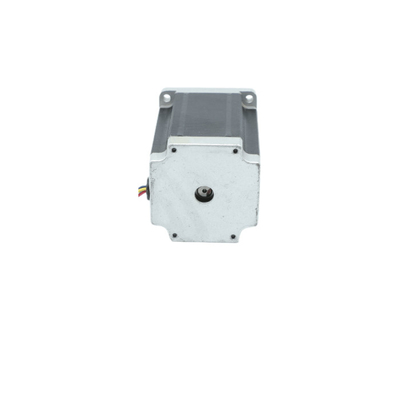

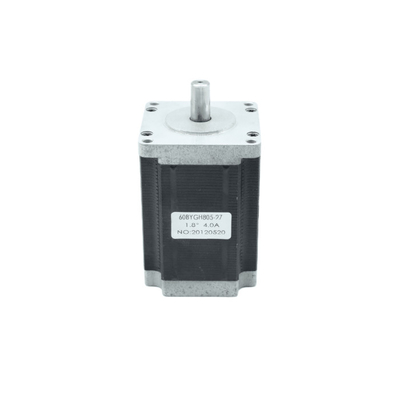

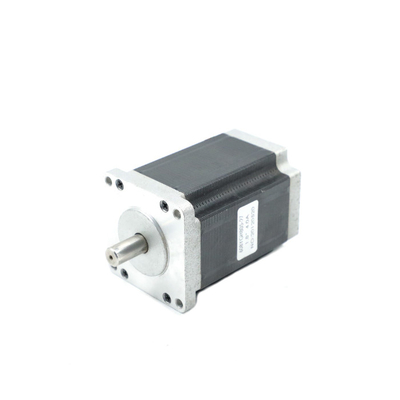

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 60BYGH402-13A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 6 Rated Voltage 2.4V
Rated Current 3.0A Resistance 0.8Ω
Inductance 1.6mH Holding Torque 10 Kg.cm
Motor Height 56 Mm Motor Weight 0.77 Kg
High Light

2.4V Hybrid Stepper Motor

,

10Kg.Cm Hybrid Stepper Motor

,

Nema24 6 Wires Stepping Motor

Leave a Message
Product Description

Hetai 60BYGH402-13A hot sale nema24 hybrid stepper motor 6 lead wires 2.4V 10Kg.cm stepping motor

Stepping motor is also called pulse motor, based on the most basic principle of electromagnet, it is a kind of electromagnet that can rotate freely, and its action principle is to rely on the change of air gap permeance to generate electromagnetic torque. Its original model originated between 1830 and 1860. Around 1870, attempts to control were started and applied to the electrode delivery mechanism of hydrogen arc lamps. This is considered the original stepper motor. In 1923, James Weir French invented the three-phase variable reluctance (Variable reluctance), which is the predecessor of the stepper motor.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
6
Voltage (V)
2.4
Current (A/Phase)
3.0
Holding Torque (Kg.cm)
10 Kg.cm




60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 0


Mechanical Dimension Of Hybrid Stepper Motor

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 1



Market Range of Hetai

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 2

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada



Hetai's Customers

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 3

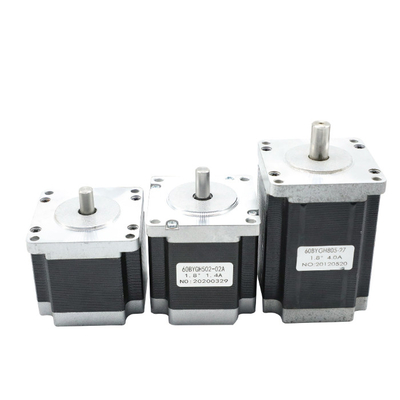

A variety of types of stepper motors are available for you to choose, support customization.

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 4



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 5

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Stator Winding Machine
60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 660BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 7
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.

Stepper motor automatic assembly line
60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 8



Silent Room&Laser Range Finder

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 9

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 10



CNC Center

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 1160BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 12



CE Certification of Stepper motor

60BYGH402-13A Nema24 Hybrid Stepper Motor 6 Lead Wires 2.4V 10Kg.Cm 13



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
