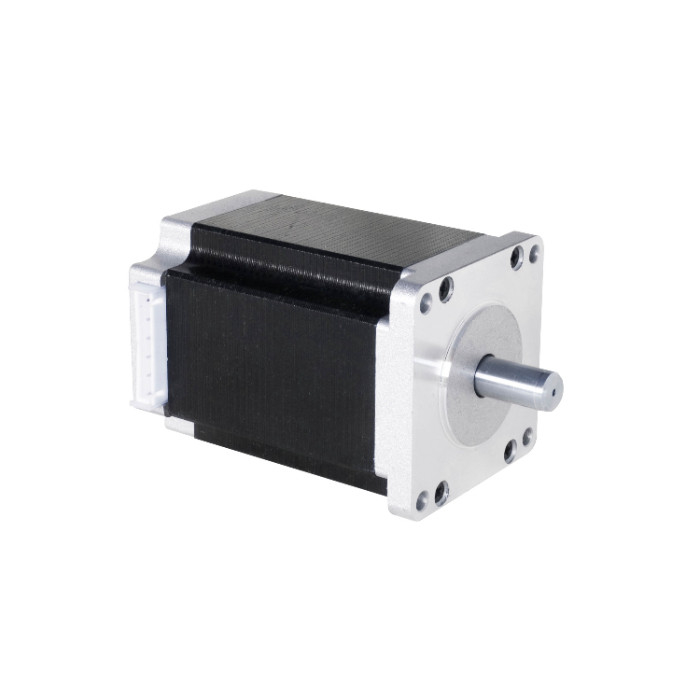

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 60BYGH502-03A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 5.32V
Rated Current 1.4A Resistance 3.8Ω
Inductance 10mH Holding Torque 12.5 Kg.cm
Motor Height 64 Mm Motor Weight 1.00 Kg
High Light

Low Noise Hybrid Stepping Motor

,

Nema24 Hybrid Stepping Motor

,

ROHS Nema24 Stepper Motor

Leave a Message
Product Description

Hetai nema24 60BYGH502-03A cheap price low noise hybrid stepper motor stepping motor for bulk sale

At the beginning of the 20th century, stepper motors were widely used in automatic telephone exchanges. As Western capitalist powers scrambled for colonies, stepper motors found widespread use in stand-alone systems such as ships and aircraft that lacked AC power. The invention of the transistor in the late 1950s was also gradually applied to stepping motors, making digital control easier. After the 1980s, due to the appearance of cheap microcomputers with a multi-functional attitude, the control methods of stepper motors became more flexible and diverse.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
4
Voltage (V)
5.32
Current (A/Phase)
1.4
Holding Torque (Kg.cm)
12.5 Kg.cm




Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 0


Mechanical Dimension Of Hybrid Stepper Motor

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 1



History of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 0



Market Range of Hetai

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 3

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada



Hetai's Customers

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 4



A variety of types of stepper motors are available for you to choose, support customization.

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 5



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 6

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Stator Winding Machine
Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 7Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 8
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.

Stepper motor automatic assembly line
Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 9
Products Annual Capacity
Hybrid stepper motor 3 million units
Brushless DC motor 2 million units
Servo motor 0.05 million units
Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.



Silent Room&Laser Range Finder

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 10

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 11



CNC Center

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 12Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 13



CE Certification of Stepper motor

Nema24 Low Noise Hybrid Stepping Motor 60BYGH502-03A 14



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
