57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 57BYGH636-XXXBE
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 2.52 V
Rated Current 4.2A Resistance 0.6Ω
Inductance 1.8mH Holding Torque 21 Kg.cm
Motor Height 121 Mm Motor Weight 0.9 Kg
High Light

57BYGH636 Stepper Motor

,

Hybrid Nema23 Integrated Stepper Motor

,

4.2A Nema23 Stepper Motor

Leave a Message
Product Description

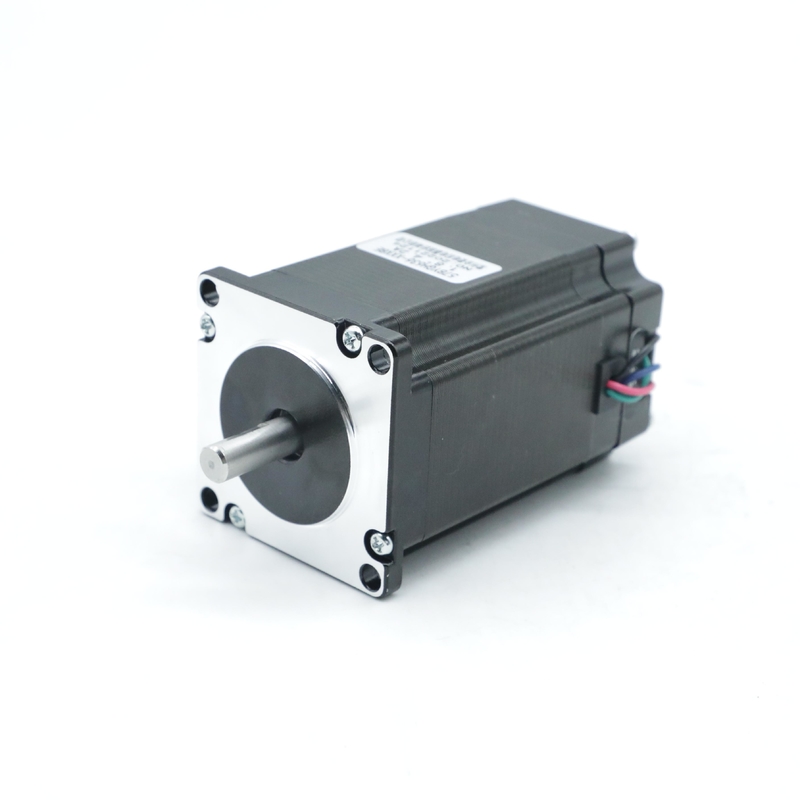

New product Hetai 57BYGH636-XXXBE integrated stepper motor with 485 communication nema23 hybrid stepper motor with drive

Advantages of integrated closed-loop stepper motor:
Compact structure, small size, and because the driver and motor are integrated, it saves the connection between the driver and the motor, effectively reduces the interference caused by the motor cable, and reduces the electromagnetic interference between the lines; adopts better vibration technology and low heat generation The technology effectively solves the problems of heating, vibration and noise of the motor and driver.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
4
Voltage (V)
2.52
Current (A/Phase)
4.2
Holding Torque (Kg.cm)
0.9 Kg.cm



Driver with 485 communication

Explanation IRC57N
  Minimum Value



Typical Value



Maximal Value



Unit

Continuous output current 0.7 4 6.0 A
Power supply voltage (DC) 15 24 50 Vdc
control method

RS485 communication fully isolated

electrical module design

RS485 communication frequency communication Up to 1MHz, recommended within 200KHz

Left and right limit control signal input current



6 10 16 mA

Left and right limit control signal input voltage, need 24V,

. A 2KΩ/1W resistor can be connected in series

with the common terminal of the common anode



- 5 - Vdc
Control signal pulse high level minimum time width 1.5 - - US
overvoltage point   55   Vdc
Insulation resistance 100



Driver usage environment

Cooling Mode Natural cooling or forced air cooling

Use environment



Occasion





Do not place it next to other heat-generating equipment. Avoid dust, oil mist, and corrosive gases.

In places with high humidity and strong vibration, combustible gas and conductive dust are prohibited.

  Temperature -10℃ ~ +50℃
  Humidity 40 ~ 90%RH
  Vibration 5.9m/s2MAX
Storage temperature -20℃~60℃
Use Elevation Below 1000 meters
Weight 1-2KG



Mechanical Dimension Of Hybrid Stepper Motor

57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 0







Market Range of Hetai

57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 1

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Stator Winding Machine
57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 357BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 4
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.


Professional Testing Equipment

57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 557BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 657BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 757BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 857BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 9



CNC Center

57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 1057BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 11



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.



Automatic assembly line

57BYGH636-XXXBE Integrated Stepper Motor With 485 Communication Nema23 Hybrid 14


Products Annual Capacity
Hybrid stepper motor 3 million units
Brushless DC motor 2 million units
Servo motor 0.05 million units
Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
