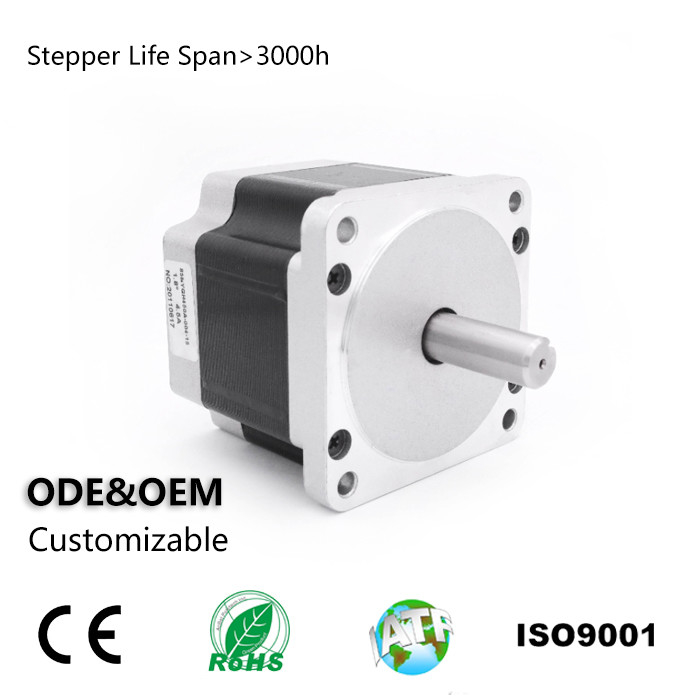

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 85BYGH350A-001
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.2 °
Lead Wire 3 Rated Voltage 3.1V
Rated Current 3.1A Resistance 1.0Ω
Inductance 4.1mH Holding Torque 2.0 N.M
Motor Height 68 Mm Motor Weight 1.7 Kg
High Light

Hybrid Stepper Motor Nema34

,

85BYGH350A-001 Stepper Motor

,

1.2 Step Hybrid Stepper Motor

Leave a Message
Product Description

Factory direct sale 85BYGH350A-001 high performance Nema34 hybrid stepper motor

Advantages of stepper motors
1. The angle of motor rotation is proportional to the number of pulses;
2. The motor has the maximum torque when it stops (when the winding is excited);
3. Because the accuracy of each step is 3% to 5%, and the error of one step will not be accumulated to the next step, it has better position accuracy and motion repeatability;
4. Excellent start-stop and reverse response;
5. Because there is no brush, the reliability is high, so the life of the motor only depends on the life of the bearing;
6. The response of the motor is only determined by the digital input pulse, so open-loop control can be used, which makes the structure of the motor relatively simple and cost-effective;
7. Merely connecting the load directly to the shaft of the motor also enables synchronous rotation at very low speeds.
8. Since the speed is proportional to the pulse frequency, it has a relatively wide speed range.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.2°
Lead wire
3
Voltage (V)
3.1
Current (A/Phase)
3.1
Holding Torque (N.M)
2.0




85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 0


Mechanical Dimension Of Hybrid Stepper Motor

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 1



Market Range of Hetai

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 2

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 3

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Certificate of Hybrid stepper motor

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 485BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 585BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 685BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 785BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 8



Stator Winding Machine
85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 985BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 10
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.


Professional experimental equipment

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 11

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 12



CNC Center

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 1385BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 14



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.



Automatic assembly line

85BYGH350A-001 High Performance Hybrid Stepper Motor Nema34 17


Products Annual Capacity
Hybrid stepper motor 3 million units
Brushless DC motor 2 million units
Servo motor 0.05 million units
Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
