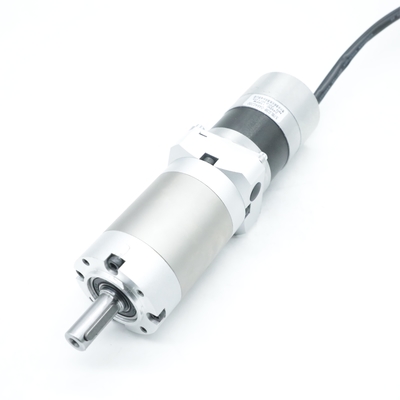

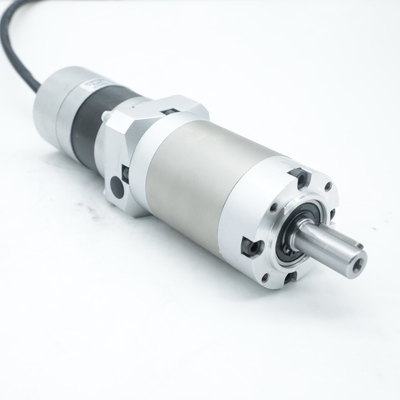

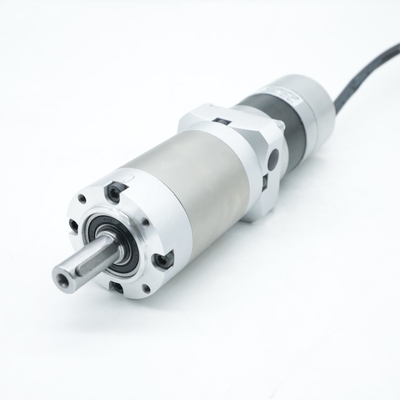

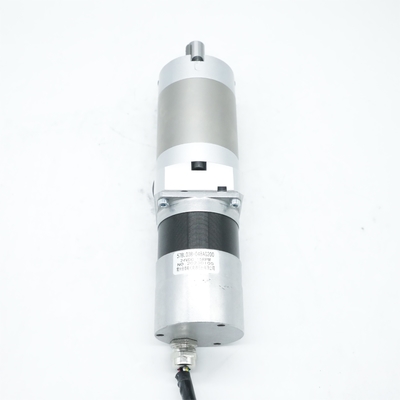

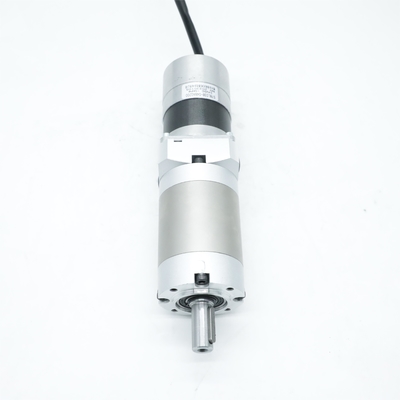

Nema23 57BL03B-048AG200 Dc integrated Brushless Motor With Gearbox 24V 25N.m 15Rpm

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 57BL03B-048AG200
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month
Product Details
Product Name Gearbox Brushless Motor Nominal Voltage 24 V
Rated Speed 15 RPM No-load Current 1.5 A
Rated Torque 25 N.M Reduction Ratio 1:200
Insulation Resistance 100MΩ Min.500VC DC Winding Type Star
Dielectric Strength 500V AC 1 Minute Certification CE ROHS ISO
Leave a Message
Product Description

Nema23 57mm 57BL03B-048AG200 Dc Brushless Motor With Gearbox 24V 25N.m 15Rpm



Advantages of brushless geared motors:



1. Brushless, low interference



The brushless motor removes the brush, and the most direct change is that there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of electric sparks on remote control radio equipment.



2. Low noise and smooth operation



There are no brushes in the brushless motor, the friction force is greatly reduced during operation, the operation is smooth, and the noise will be much lower. This advantage is a huge support for the stability of the model operation.



3. Long service life and low maintenance cost

Without the brushes, the wear of the brushless motor is mainly on the bearings. From a mechanical point of view, the brushless motor is almost a maintenance-free motor. When necessary, it only needs to do some dust removal maintenance.
With the downward trend of the cost of brushless controllers and the development and market competition of brushless technology at home and abroad, the brushless power system is in the stage of rapid development and popularization, which also greatly promotes the development of domestic brushless motors.



Electrical Specification:

Product Name
Brushless Gearbox Motor
Model
57BL03B-048AG200
Reduction Ratio
1:200
Voltage (V)
24 V
Rated Speed with gearbox (RPM)
15
Rated Torque with gearbox (N.M)
25
Power (W)
39
Insulation class
B


Other Gearbox Ratio

Reduction Ratio
15:1
4:1
6:1
18:1
26:1
48:1
66:1
Number of Poles
4
Number of Phase
3
Nominal Voltage
24V
Insulation Class
B
Rated torque after speed
200rpm
750rpm
500rpm
167rpm
115rpm
63rpm
45rpm
Rated torque with gearbox
1.9n.m
0.6n.m
0.9n.m
2.3n.m
3.4n.m
6.2n.m
8.6n.m
No-load Speed
4000rpm
No-load Current
0.6A


Mechanical Dimension

Nema23 57BL03B-048AG200 Dc integrated Brushless Motor With Gearbox 24V 25N.m 15Rpm 0



High-quality Raw Materials

Nema23 57BL03B-048AG200 Dc integrated Brushless Motor With Gearbox 24V 25N.m 15Rpm 1



​Brushless Motor Final Inspection

Nema23 57BL03B-048AG200 Dc integrated Brushless Motor With Gearbox 24V 25N.m 15Rpm 2
Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle
Nema23 57BL03B-048AG200 Dc integrated Brushless Motor With Gearbox 24V 25N.m 15Rpm 3
Measure the Screw Hole Distance Measure the Length of Wire Measure the Length of PVC
Nema23 57BL03B-048AG200 Dc integrated Brushless Motor With Gearbox 24V 25N.m 15Rpm 4
Test the Resistance Listening Test the speed
