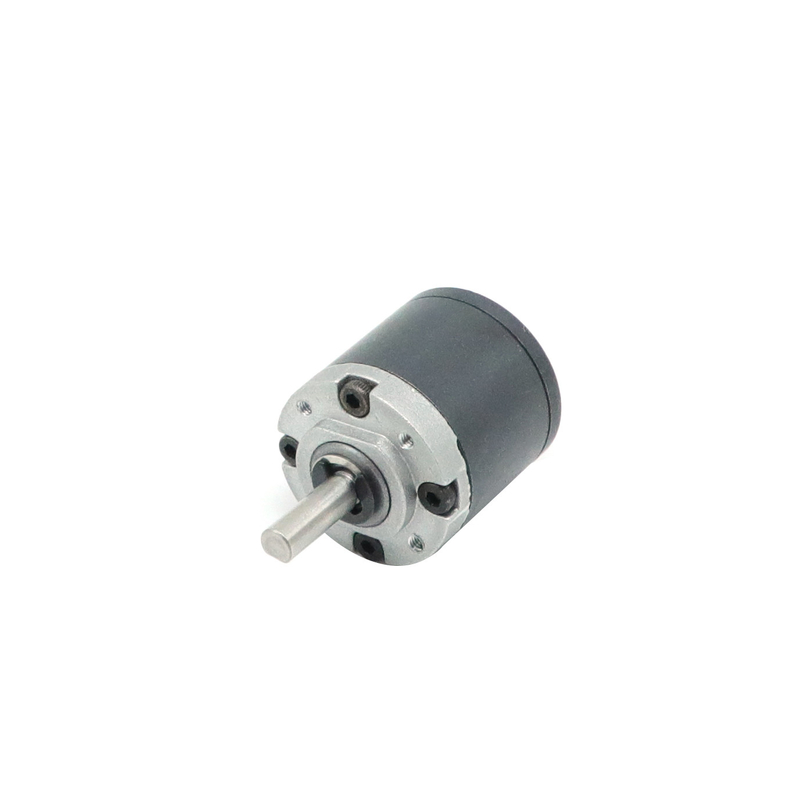

PG22A-PM-ST 22mm Dia Powder Metallurgy Planetary Gearbox Straight Teeth

Name: PG22A-PM-ST 22mm Dia Powder Metallurgy Planetary Gearbox Straight Teeth
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: PG22A-PM-ST
Availability: InStock

Brand Name:	Hetai
Model Number:	PG22A-PM-ST
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Planetary Gearbox

Type Of Teeth:

Straight Teeth

Mechanical Dimensions:

22mm

Reduction Ratio:

4.38/ 19.22/ 23.67/ 84.29/ 103.8/ 127.8

Gearbox Length:

29.7/ 29.7/ 36.4

Number Of Gear Trains:

1/1/2

Momentary Tolerance Torque （Nm）:

0.3/0.3/1.2

Material:

Powder Metallurgy

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000pcs/month

Highlight:

22mm Dia Planetary Gearbox

Straight Teeth Planetary Gearbox

ISO Planetary Reducer Gearbox

Product Description

PG22A-PM-ST 22mm dia Powder metallurgy Planetary gearbox Straight Teeth

1. Give full play to the advantages of stability, security and reliability

The star reducer can give full play to the advantages of stability, safety and reliability, especially to meet the requirements of various complex working environments, and can also reduce the speed, increase the torque and reduce the load. Furthermore, there are no special maintenance requirements to ensure an automated operating process.

2. Strong anti-seismic effect

The planetary reducer has a precise transmission function during work, especially has a strong anti-seismic function, and has an extremely long service life during work. Because we don't need special maintenance, we can reduce the cost of use and avoid unexpected failures during work.

In short, the planetary reducer can play the performance of these important advantages in operation and meet the requirements of various working environments.

Mechanical Dimension

PG22A-PM-ST 22mm Dia Powder Metallurgy Planetary Gearbox Straight Teeth 0

Gearbox Specification:

Reduction Ratio	Exact Reduction Ratio	Rated Tolerance Torque (Nm)	Momentary Tolerance Torque (Nm)	Efficiency(%)	Length (mm)	Weight (g)	Number of gear trains
1/4.38	1/4.38	0.3	1.0	90%	29.7	/	1
1/19.22	1/19.22	0.3	1.0	90%	29.7	/	1
1/23.67	1/23.67
1/84.29	1/84.29	1.2	3.5	80%	36.4	/	2
1/103.8	1/103.8
1/127.8	1/127.8

Different reduction ratio, torque, weight and length.

Different reduction gearboxs

Engineering plastic gearbox: low cost and low noise

PG22A-PM-ST 22mm Dia Powder Metallurgy Planetary Gearbox Straight Teeth 1

Powder metallurgy gearbox:long life and low noise

PG22A-PM-ST 22mm Dia Powder Metallurgy Planetary Gearbox Straight Teeth 2

Zinc alloy gearbox: low cost

PG22A-PM-ST 22mm Dia Powder Metallurgy Planetary Gearbox Straight Teeth 4

Right Angle Gearbox

PG22A-PM-ST 22mm Dia Powder Metallurgy Planetary Gearbox Straight Teeth 6

L type gearbox

Worm Gearbox

High-quality Raw Materials


Gearbox Assembled
​
Gearbox Material Placement
