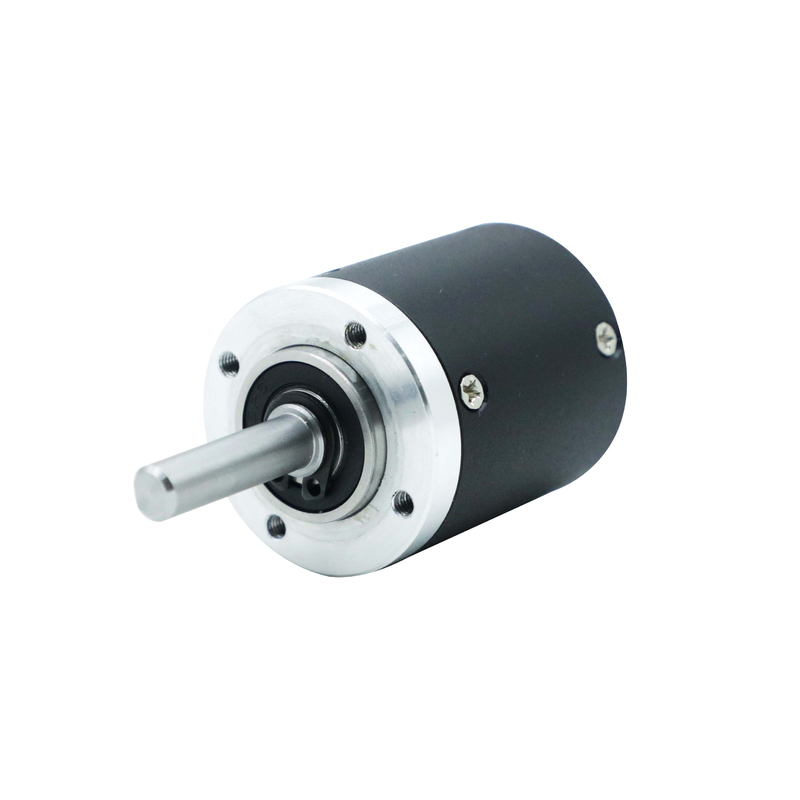

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number PG32A-PM-ST
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Planetary Gearbox Material Powder Metallurgy
Type Of Teeth Straight Teeth Mechanical Dimensions 32mm
Gearbox Length(mm) 29.7/36.4/43.1 Number Of Gear Trains 1/2/3
Momentary Tolerance Torque (Nm) 0.3/1.2/2.5 Efficiency 90%/80%/72%
High Light

Straight Teeth Planetary Reducer Gearbox

,

Planetary Reducer Gearbox 32mm

,

Powder Metallurgy Planetary Gearbox

Leave a Message
Product Description

PG32A-PM-ST 32mm diameter Powder metallurgy Straight Teeth Planetary gearbox ratio

1. Planetary gearbox Give full play to the advantages of stability, security and reliability

The star gearbox can give full play to the advantages of stability, safety and reliability, especially to meet the requirements of various complex working environments, and can also reduce the speed, increase the torque and reduce the load. Furthermore, there are no special maintenance requirements to ensure an automated operating process.

2. Strong anti-seismic effect

The planetary gearbox has a precise transmission function during work, especially has a strong anti-seismic function, and has an extremely long service life during work. Because we don't need special maintenance, we can reduce the cost of use and avoid unexpected failures during work.



In short, the planetary gearbox can play the performance of these important advantages in operation and meet the requirements of various working environments.



Mechanical Dimension

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 0



Gearbox Specification:

Reduction Ratio Exact Reduction
Ratio
Rated Tolerance Torque
(Nm)
Momentary Tolerance Torque
(Nm)
Efficiency(%) Length
(mm)
Weight
(g)
Number of
gear trains
1/3.7 1/3.7 0.3 1.0 90% 29.7 / 1
1/4.8 1/4.8
1/5.7 1/5.7
1/13.8 1/13.8 1.2 3.5 80% 36.4 / 2
1/17.8 1/17.8
1/21.4 1/21.4
1/23.0 1/23.0
1/27.6 1/27.6
1/33.1 1/33.1
1/51.2 1/51.2 2.5 7.5 72% 43.1 / 3
1/66.2 1/66.2
1/79.3 1/79.3
1/85.6 1/85.6
1/102.5 1/102.5
1/110.6 1/110.6
1/122.8 1/122.8
1/132.5 1/132.5
1/158.7 1/158.7
1/190.1 1/190.1

Different reduction ratio, torque, weight and length.



ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 1

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 2

Production Process
PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 3

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China



Different reduction gearboxs

Engineering plastic gearbox: low cost and low noise

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 4



Powder metallurgy gearbox:long life and low noise

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 5PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 6



Zinc alloy gearbox: low cost

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 7PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 8



Right Angle Gearbox

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 9PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 10



L type gearbox

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 11PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 12



Worm Gearbox

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 13PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 14



High-quality Raw Materials

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 15



Gearbox Assembled

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 16

Gearbox Material Placement

PG32A-PM-ST Powder Metallurgy Straight Teeth Planetary Reducer Gearbox 32mm 17
