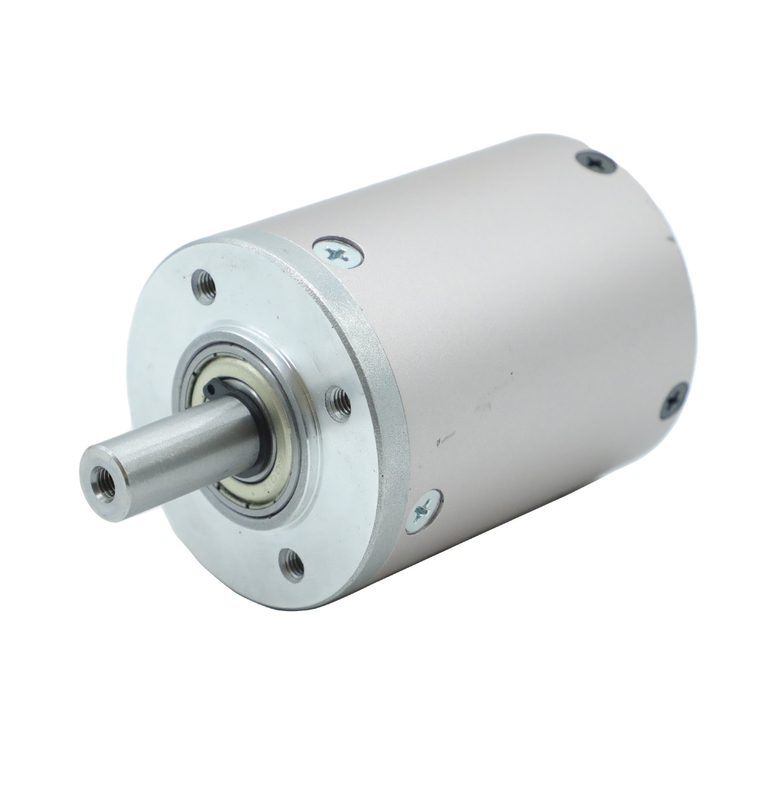

PG60A-PM-ST 60mm Planetary Reducer Gearbox Low Noise Straight Teeth
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE ROHS ISO |
| Model Number | PG60A-PM-ST |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Planetary Gearbox | Material | Powder Metallurgy |
|---|---|---|---|
| Structure | All-in-one | Type Of Teeth | Straight Teeth |
| Reduction Ratio | 3.5/4.33/12.25/15.17/42.88/53.08/65.72/81.37 | Rated Tolerance Torque（N.m） | 2/8/16 |
| Momentary Tolerance Torque （Nm） | 6/25/50 | Efficiency | 90%/81%/72% |
| Gearbox Length(mm) | 48/60/72 | Number Of Gear Trains | 1/2/3 |
| High Light | 60mm Planetary Reducer Gearbox,Low Noise Planetary Reducer Gearbox,Straight Teeth Planetary Speed Reducer |
||
Product Description
PG60A-PM-ST 60mm Straight Teeth Planetary Reducer Gearbox low noise Straight Teeth
Planetary reducer is a high-end planetary rotation principle, the design concept is very advanced, and the structure is extremely novel. The precision is very high and it is widely used in various industries. High-speed ratio and high-efficiency single-stage transmission of planetary reducer.
Mechanical Dimension
Gearbox Specification:
| Reduction Ratio | Exact Reduction Ratio |
Rated Tolerance Torque (Nm) |
Momentary Tolerance Torque (Nm) |
Efficiency(%) | Length (mm) |
Weight (g) |
Number of gear trains |
| 1/3.5 | 1/3.5 | 2.0 | 6.0 | 90% | 32.3 | / | 1 |
| 1/4.33 | 1/4.33 | ||||||
| 1/12.25 | 1/12.25 | 8.0 | 25.0 | 81% | 50.6 | / | 2 |
| 1/15.17 | 1/15.17 | ||||||
| 1/42.88 | 1/42.88 | 16.0 | 50.0 | 72% | 68.9 | / | 3 |
| 1/53.08 | 1/53.08 | ||||||
| 1/65.72 | 1/65.72 | ||||||
| 1/81.37 | 1/81.37 |
Different reduction ratio, torque, weight and length.
Product Range
Engineering plastic gearbox: low cost and low noise
Powder metallurgy gearbox:long life and low noise
Zinc alloy gearbox: low cost
Right Angle Gearbox
L type gearbox
Worm Gearbox
High-quality Raw Materials
Gearbox Assembled
Gearbox Material Placement
