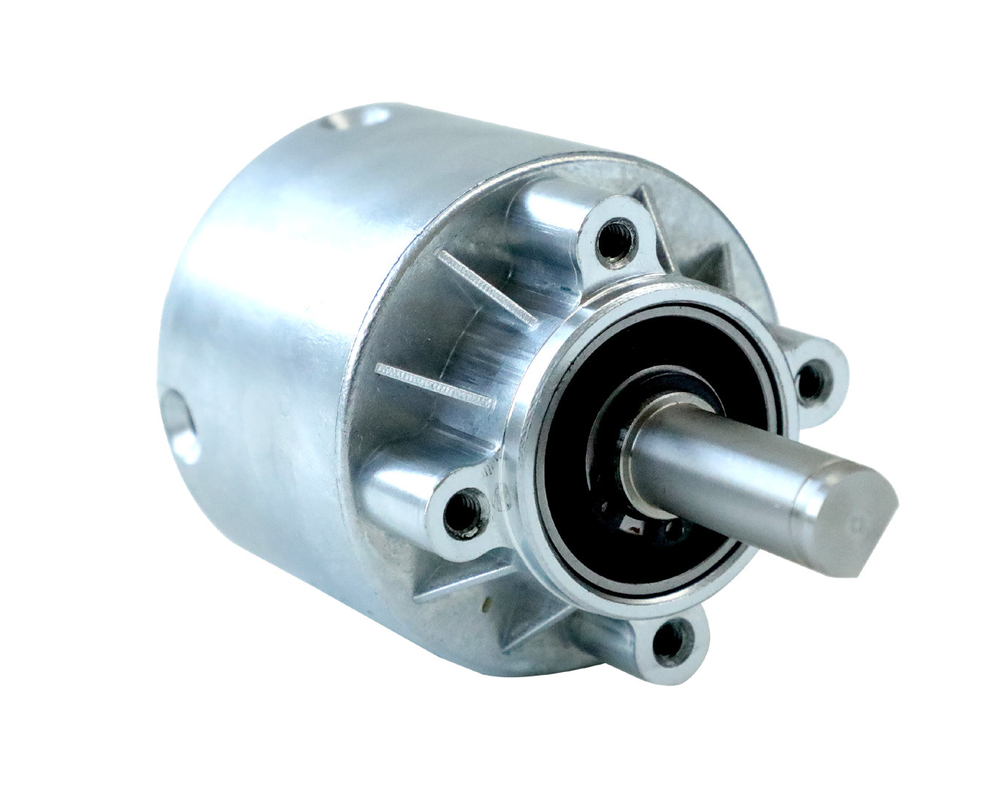

PG52A-ZA-HT 52mm Dia Durable Zinc Alloy Planetary Reducer Gearbox Helix Teeth
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Planetary Gearbox||Structure||All-in-one|
|Material||Zinc Alloy||Type Of Teeth||Helix Teeth|
|Reduction Ratio||1：13||Rated Tolerance Torque（N.m）||2.0|
|Momentary Tolerance Torque （Nm）||6.0||Efficiency||81%|
|Gearbox Length(mm)||52.9||Number Of Gear Trains||1|
52mm Planetary Reducer Gearbox,
Planetary Reducer Gearbox Helix Teeth,
Zinc Alloy Planetary Reducer
PG52A-ZA-HT 52mm dia more durable Zinc Alloy Planetary Reducer Gearbox Helix Teeth
The main transmission structure of the planetary gear reducer is: planetary gear, sun gear, and outer ring gear. Due to the structure of the planetary reducer, the minimum single-stage reduction is 3, and the maximum generally does not exceed 10. The number of stages of the reducer generally does not exceed 3. Compared with other reducers, the planetary reducer has high rigidity, high precision, high transmission efficiency, and high Torque, volume ratio, life-long maintenance-free and other characteristics. Because of these characteristics, most planetary reducers are installed on stepper motors and servo motors to reduce speed and increase torque. Match inertia.
|Reduction Ratio||Exact Reduction
|Rated Tolerance Torque
|Momentary Tolerance Torque
Different reduction ratio, torque, weight and length.
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China
Different reduction gearboxs
Engineering plastic gearbox: low cost and low noise
Powder metallurgy gearbox:long life and low noise
Zinc alloy gearbox: low cost
Right Angle Gearbox
L type gearbox
High-quality Raw Materials
Gearbox Material Placement
