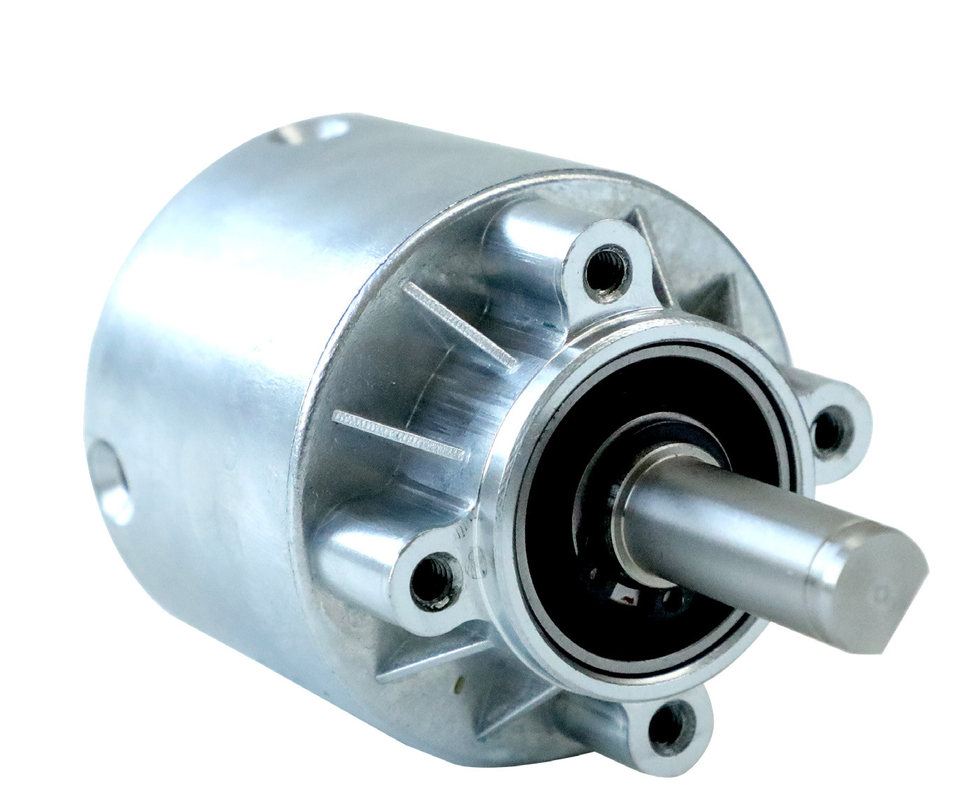

PG56A-ZA-HT Zinc Alloy Helix Teeth Planetary Gear Reducer 56mm Dia

Name: PG56A-ZA-HT Zinc Alloy Helix Teeth Planetary Gear Reducer 56mm Dia
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: PG56A-ZA-HT
Availability: InStock

Brand Name:	Hetai
Model Number:	PG56A-ZA-HT
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Planetary Gearbox

Structure:

All-in-one

Material:

Zinc Alloy

Type Of Teeth:

Helix Teeth

Reduction Ratio:

1:13

Rated Tolerance Torque（N.m）:

2.0

Momentary Tolerance Torque （Nm）:

6.0

Gearbox Length(mm):

52.7

Number Of Gear Trains:

Efficiency:

81%

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000pcs/month

Highlight:

56mm Dia Planetary Reducer Gearbox

Zinc Alloy Planetary Gear Reducer

6Nm Planetary Gear Reducer

Product Description

PG56A-ZA-HT 56mm dia longer lasting Zinc Alloy Helix Teeth Planetary Reducer Gearbox

The main transmission structure of the planetary gear reducer is: planetary gear, sun gear, and outer ring gear. Due to the structure of the planetary reducer, the minimum single-stage reduction is 3, and the maximum generally does not exceed 10. The number of stages of the reducer generally does not exceed 3. Compared with other reducers, the planetary reducer has high rigidity, high precision, high transmission efficiency, and high Torque, volume ratio, life-long maintenance-free and other characteristics. Because of these characteristics, most planetary reducers are installed on stepper motors and servo motors to reduce speed and increase torque. Match inertia.

Mechanical Dimension

PG56A-ZA-HT Zinc Alloy Helix Teeth Planetary Gear Reducer 56mm Dia 0

Gearbox Specification:

Reduction Ratio	Exact Reduction Ratio	Rated Tolerance Torque (Nm)	Momentary Tolerance Torque (Nm)	Efficiency(%)	Length (mm)	Weight (g)	Number of gear trains
1/13	1/13	2.0	6.0	81%	52.7	400	1

Different reduction ratio, torque, weight and length.

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Powder metallurgy gearbox:long life and low noise

PG56A-ZA-HT Zinc Alloy Helix Teeth Planetary Gear Reducer 56mm Dia 2

Zinc alloy gearbox: low cost

PG56A-ZA-HT Zinc Alloy Helix Teeth Planetary Gear Reducer 56mm Dia 4

Right Angle Gearbox

PG56A-ZA-HT Zinc Alloy Helix Teeth Planetary Gear Reducer 56mm Dia 6

High-quality Raw Materials

​
Gearbox Material Placement

Gearbox Assembled
