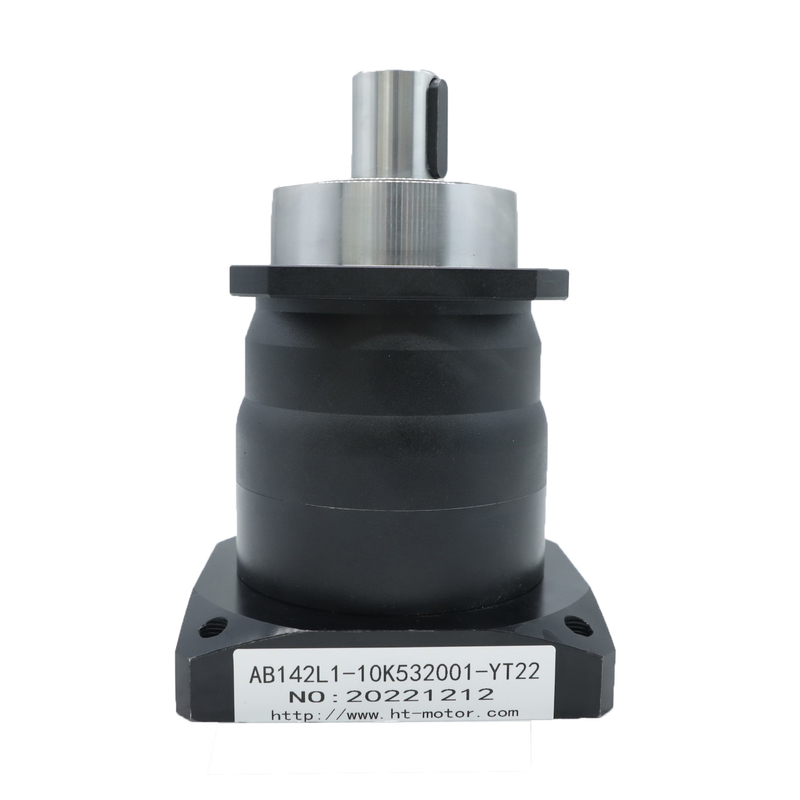

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm

  • Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm
  • Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm
  • Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm
Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number PLF060/090/115/140
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Precision Gearbox Model Of Gearbox PLF060/090/115/140
Mechanical Dimensions 60mm/90mm/104mm/115mm Reduction Ratio Different
Number Of Gear Trains 1/2 Fault Stagnation Torque（Nm） 3 Times Rated Output Torque
Average Life Expectancy 20000
High Light

High Reduction Ratio Gearbox 90mm

,

Precision Gearbox 60mm

,

ROHS High Reduction Ratio Gearbox
Leave a Message
Product Description

Precision gearbox High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm

Advantages of planetary gearbox:

1. Large transmission speed ratio. The gear meshing transmission of the planetary reducer has multiple sets, the number of gear sets is large, and the transmission speed ratio increases accordingly.

2. High carrying capacity. This is because the reducer has many teeth meshing with the gear transmission at the same time, and the material used for the rack is very strong. After precision machining, the overall carrying capacity of the planetary reducer is effectively improved.

3. High transmission precision. The meshing precision between the gears is high, which can be less than 1 arc minute. Compared with other types of reducers, it is a high-precision reducer.

4. High efficiency and stable movement.



Mechanical Dimension

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 0



Specification:

Model unit PLF060 PLF090 PLF115 PLF140 Reduction ratio Number of
gear trains
Rated output torque N.m 18 50 120 240 3 1
27 75 180 360 4
27 75 180 360 5
27 75 180 360 7
18 50 120 240 10
35 90 180 450 15 2
37 96 230 450 16
37 96 230 564 20
37 96 255 585 25
37 96 230 564 28
27 87 180 360 30
37 96 255 585 35
37 96 230 564 40
37 96 255 585 50
27 87 180 360 70
18 50 120 240 100
Fault stagnation torque N.m 3 times rated output torque /
Rated Input Speed rpm 3000 3000 3000 2000 /
Maximum Input Speed rpm 6000 6000 6000 3500
Maximum Radial Force N 1200 2400 4300 9100
Maximum Axial Force N 1100 2200 3900 8200
Efficiency % 95%
Average life expectancy h 20000
Backlash arcmin ≤5 1
≤7 2
Torsional rigidity N.m/arcmin 7 14 25 50 / /
Noise dB 60 62 62 68
Lubrication / Synthetic Grease
Protection class / IP65



Different reduction gearboxs

Engineering plastic gearbox: low cost and low noise

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 1



Powder metallurgy gearbox:long life and low noise

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 2Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 3



Zinc alloy gearbox: low cost

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 4Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 5



Right Angle Gearbox

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 6Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 7



L type gearbox

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 8Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 9



Worm Gearbox

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 10Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 11







High-quality Raw Materials

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 12



Gearbox Assembled

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 13

​

Gearbox Material Placement

Precision High Reduction Ratio Gearbox 60mm 90mm 104mm 115mm 14
