Gearbox Brushless Motor
Created with Pixso. 42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm

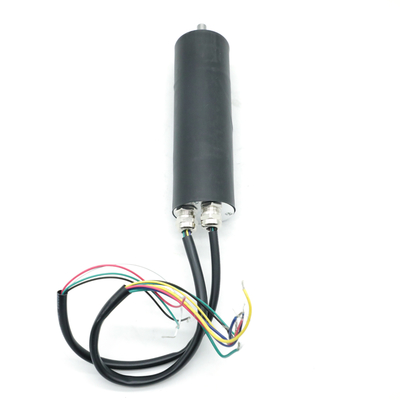

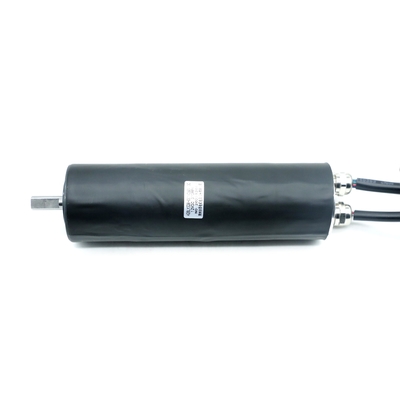

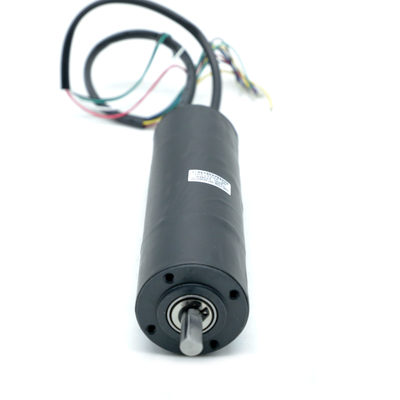

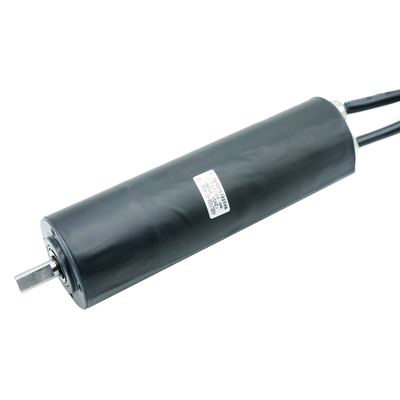

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm

Brand Name: Hetai
Model Number: 42BLY328-001AG6SV100
MOQ: 50
Price: USD
Delivery Time: 28-31
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE ROHS ISO
Product Name:
Gearbox Brushless Motor
Nominal Voltage:
24 V
Rated Speed:
370 RPM
Rated Speed Of Motor:
2300rpm
No-load Current:
0.5 A
Rated Torque Of Motor:
0.13 N.m
Rated Torque:
0.6 N.M
Reduction Ratio:
1:6
Dielectric Strength:
500V AC 1 Minute
Certification:
CE ROHS ISO
Packaging Details:
Carton with Inner Foam Box, Pallet
Supply Ability:
5000pcs/month
Highlight:

IP65 Brushless Dc Gear Motor

,

Brushless Dc Gear Motor 370rpm

,

Waterproof Gearbox Brushless Motor

Product Description

42BLY Series 0.6N.M IP65 Waterproof 0.5A 24v 370rpm Brushless Dc Gear Motor

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 0



Advantages of brushless geared motors:

1. Brushless, low interference

The brushless motor removes the brush, and the most direct change is that there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of electric sparks on remote control radio equipment.

2. Low noise and smooth operation

There are no brushes in the brushless motor, the friction force is greatly reduced during operation, the operation is smooth, and the noise will be much lower. This advantage is a huge support for the stability of the model operation.

3. Long service life and low maintenance cost

Without the brushes, the wear of the brushless motor is mainly on the bearings. From a mechanical point of view, the brushless motor is almost a maintenance-free motor. When necessary, it only needs to do some dust removal maintenance.
With the downward trend of the cost of brushless controllers and the development and market competition of brushless technology at home and abroad, the brushless power system is in the stage of rapid development and popularization, which also greatly promotes the development of domestic brushless motors.



Electrical Specification:

Product Name
Brushless Gearbox Motor
Model
42BLY328-001AG6SV100
Reduction Ratio
1:6
Voltage (V)
24 V
Rated Speed with gearbox (RPM)
370
Rated Torque with gearbox (N.M)
0.6
Power (W)
31
Insulation class
B


Mechanical Dimension

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 1



High-quality Raw Materials

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 2



Automatic assembly line

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 3



​Brushless Motor Final Inspection

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 4
Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle
42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 5
Measure the Screw Hole Distance Measure the Length of Wire Measure the Length of PVC
42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 6
Test the Resistance Listening Test the speed



CNC Center

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 742BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 842BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 9



Package&Delivery

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 10

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 11



Certification of Hetai

42BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 1242BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 1342BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 1442BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 1542BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 1642BLY Series 0.6N.M IP65 Waterproof Brushless Dc Gear Motor 0.5A 24v 370rpm 17
