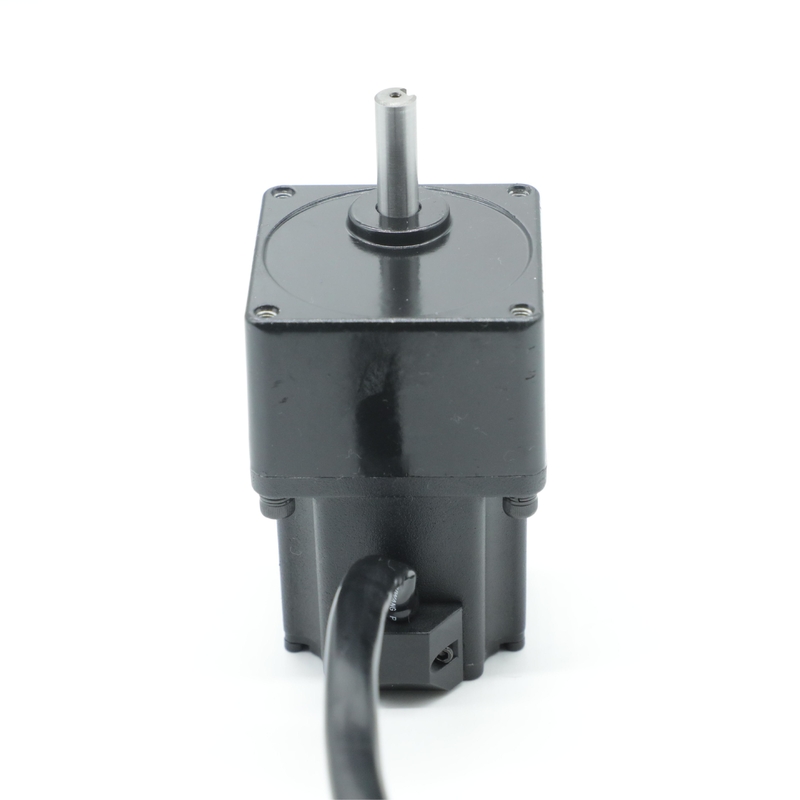

70BLF01-002AG25 Dc Brushless Motor With Planetary Gearbox 4N.M 24V 72RPM

Name: 70BLF01-002AG25 Dc Brushless Motor With Planetary Gearbox 4N.M 24V 72RPM
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 70BLF01-002AG25
Availability: InStock

Brand Name:	Hetai
Model Number:	70BLF01-002AG25
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Gearbox Brushless Motor

Nominal Voltage:

24 V

Resistance:

1.2 Ohms

Rated Speed:

72 RPM

Rated Speed Of Motor:

1800 Rpm

Reduction Ratio:

1:25

No-load Current:

1 A

Rated Torque Of Motor:

0.25 N.m

Rated Torque With Gearbox:

4 N.M

Certification:

CE ROHS ISO

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000pcs/month

Highlight:

Planetary Gearbox Dc Brushless Motor

72RPM Dc Brushless Motor

Gearbox Brushless Motor 24V

Product Description

70BLF01-002AG25 dc brushless motor with planetary gearbox 4N.m 24V 72RPM

The stator of the brushless deceleration motor is composed of permanent magnet steel. Its main function is to generate a magnetic field in the air gap of the motor. After the armature winding of the motor is energized, a reactive magnetic field is generated. The brush motor commutates through the brush, while the brushless motor The commutation is by placing the armature winding on the stator and the permanent magnet on the rotor, which is exactly the opposite of the DC brushed motor, but this can only fix the magnetic field and cannot interact with the permanent magnetic field generated by the moving rotor magnet. function, to generate a single direction of torque to drive the rotor to rotate, so the brushless motor needs to be equipped with a position sensor, a control circuit and a power logic switch in addition to the stator and the rotor to form the motor, so that the stator winding of the brushless motor during operation The generated magnetic field and the permanent magnetic field generated by the rotating rotor magnets are always kept at an electrical angle of about (π/2) rad in space.

Electrical Specification:

Product Name	Brushless Gearbox Motor
Model	70BLF01-002AG25
Reduction Ratio	1:25
Voltage (V)	24 V
Rated Speed with gearbox (RPM)	72
Rated Torque with gearbox (N.M)	4
Power (W)	47
Insulation class	B

Mechanical Dimension
70BLF01-002AG25 Dc Brushless Motor With Planetary Gearbox 4N.M 24V 72RPM 0

Product Range

70BLF01-002AG25 Dc Brushless Motor With Planetary Gearbox 4N.M 24V 72RPM 1

Stepping Motor & Planetary Gearbox Motor & DC Brushless Motor & Servo Motor

Hetai Motor Production Process
70BLF01-002AG25 Dc Brushless Motor With Planetary Gearbox 4N.M 24V 72RPM 2

High-quality Raw Materials


​Brushless Motor Final Inspection

			Measure the Motor Length
			Measure the Shaft Length
			Measure the Ouler Circle

			Measure the Screw Hole Distance
			Measure the Length of Wire
			Measure the Length of PVC

			Test the Resistance
			Listening
			Test the speed

Professional motor testing equipment

Package&Delivery

70BLF01-002AG25 Dc Brushless Motor With Planetary Gearbox 4N.M 24V 72RPM 9

70BLF01-002AG25 Dc Brushless Motor With Planetary Gearbox 4N.M 24V 72RPM 10
