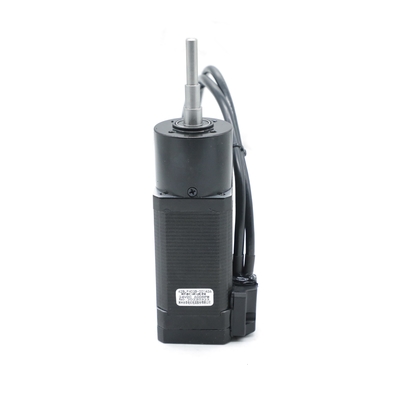

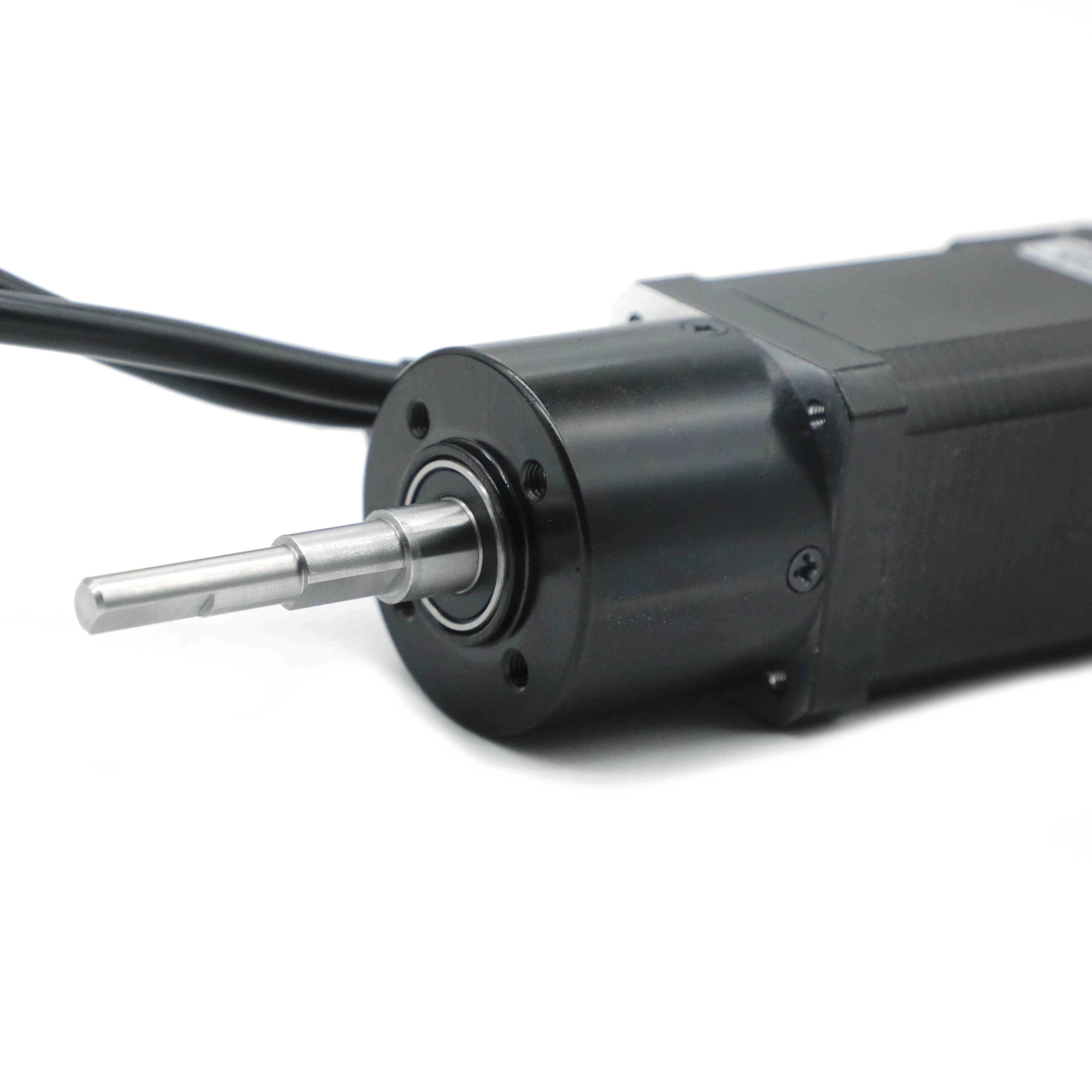

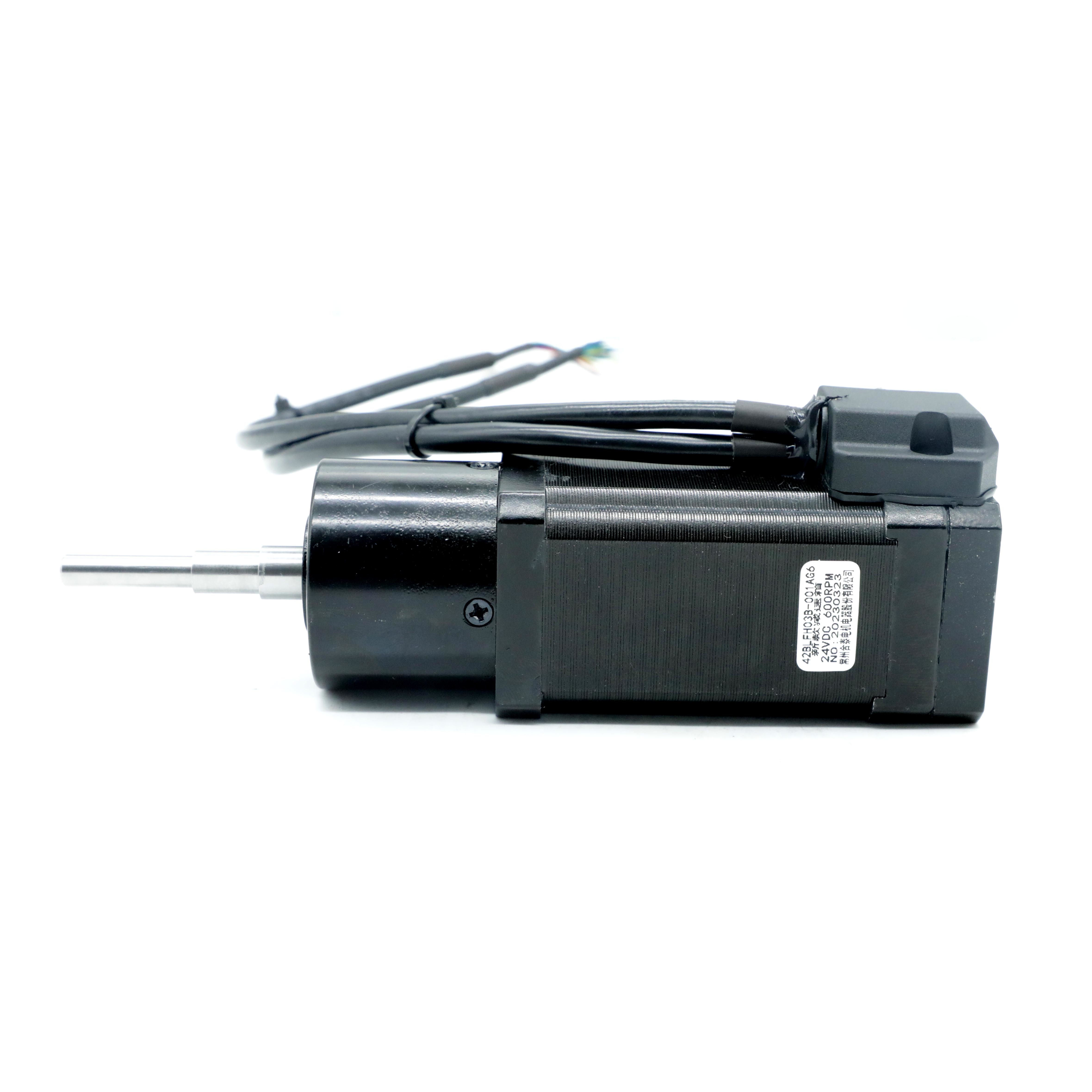

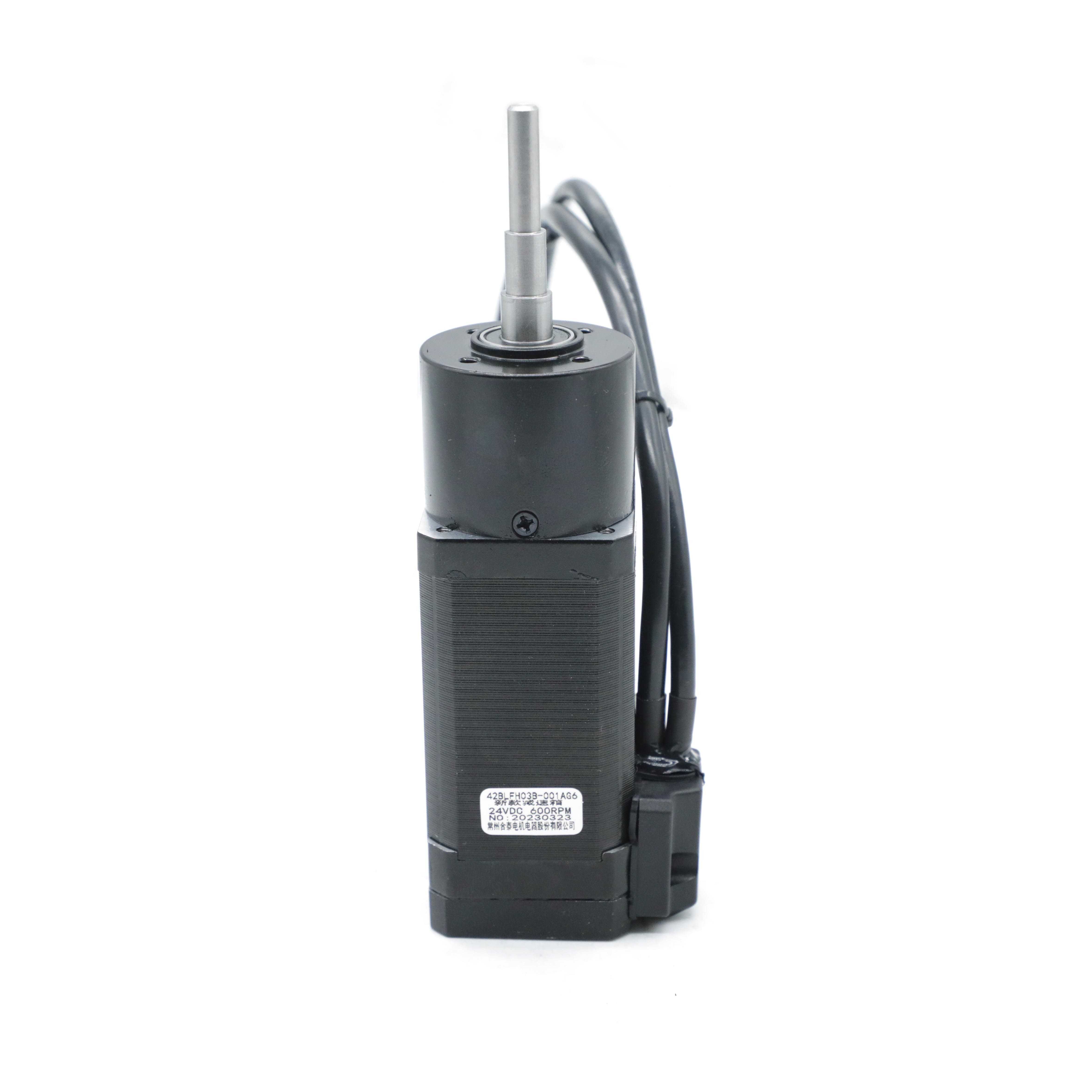

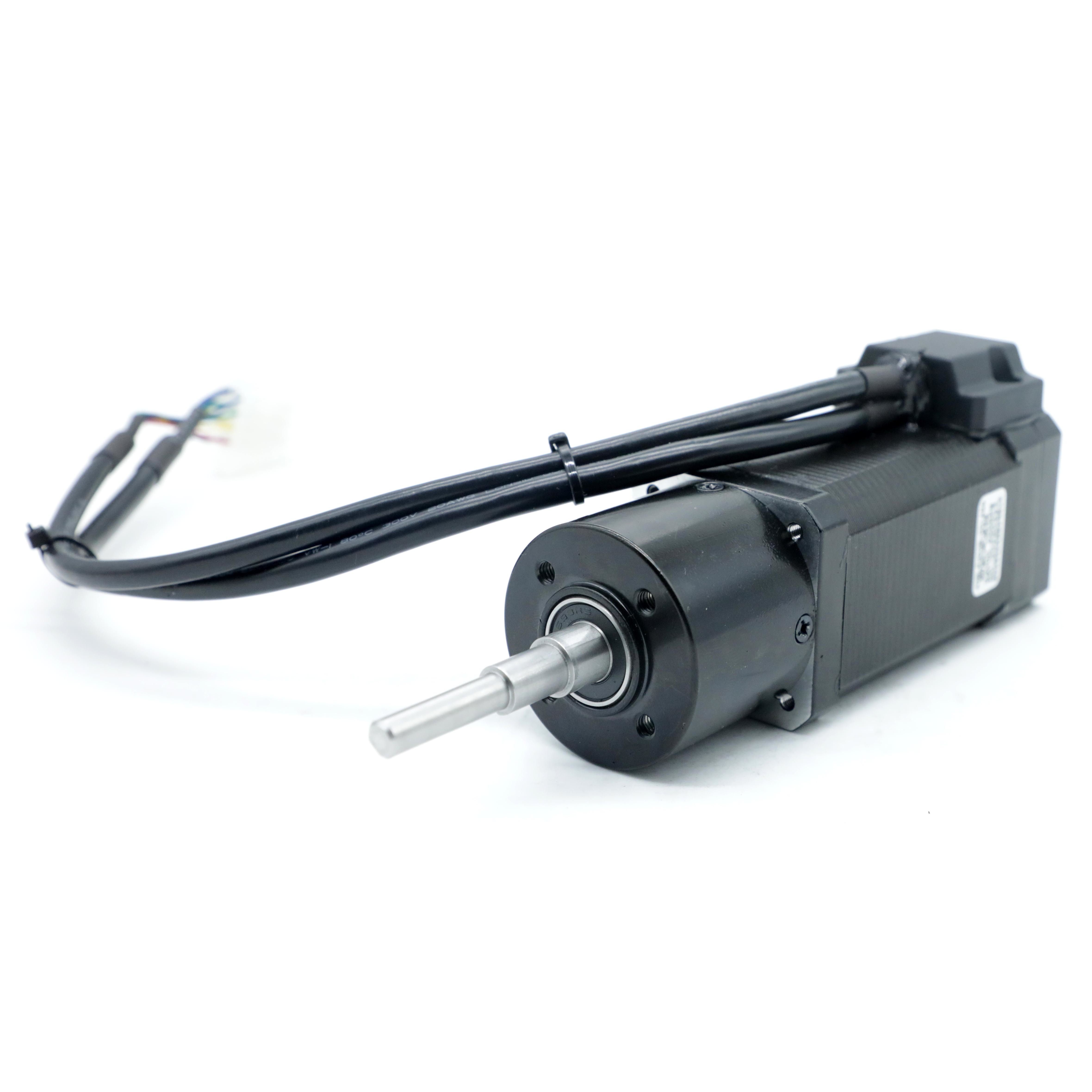

24V 113W 42BLFH Planetary Gearbox Brushless Motor Low Noise ≤60dB
| Place of Origin | Changzhou |
|---|---|
| Brand Name | hetai |
| Certification | CE ROHS ISO |
| Model Number | 42BLFH03B-XXAG6 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Powder Metallurgy | Power | 113W |
|---|---|---|---|
| No-load Current | 0.2A | Voltage | 24V |
| Product Name | Gearbox Brushless Motor | Warranty | 1 Year |
| Load Current | 7.5A | Gear Ratio | 1:6 |
| Output Torque | 1.42nm | ||
| High Light | ≤60dB Gearbox Brushless Motor,24V Gearbox Brushless Motor,≤60dB Gearbox Brushless Motor 24V |
||
Product Description
Product Description:
Introducing the Gearbox Brushless Motor, a reliable and high-performance brushless motor designed to meet all your requirements. This motor is made of high-quality materials and features a load current of 7.5A, a gear ratio of 1:6, a warranty of 1 year, and a compact size of 42mm*42mm. It can be used in a variety of applications, such as robotics, drones, RC vehicles, and more. The Gearbox Brushless Motor is designed to provide high torque and low noise operation, enabling you to optimize your system for maximum performance. This brushless motor is the perfect choice for your next project.
Features:
- BL Electric Motor: Gearbox Brushless Motor
- Noise: ≤60dB
- Output Speed: 600RPM
- Torque: 1.4N.m
- Voltage: 24V
- BL Gearbox Motor: Gearbox Brushless Motor
- Brushless Machine Motor: Gearbox Brushless Motor
Technical Parameters:
| Product Feature | Value |
|---|---|
| Product Name | Gearbox Motor, Brushless Gearbox Motor, Brushless Electric Motor |
| Weight | 1.2Kg |
| No-load Speed | 5000 RPM |
| No-load Current | 0.2A |
| Warranty | 1 Year |
| Material | Powder Metallurgy |
| Power | 113W |
| Gear Ratio | 1:6 |
| Output Speed | 600 RPM |
| Voltage | 24V |
| Output Torque | 1.42Nm |
| Load Current | 7.5A |
Applications:
The Hetai 42BLFH03B-XXAG6 Gearbox Motor is an ideal choice for applications that require reliable and efficient power. Made from high-grade powder metallurgy, it is designed to provide outstanding performance and durability. It features a power rating of 113W and a torque rating of 1.4N.m, as well as a load current of 7.5A. This brushless gearbox motor offers superior reliability and durability, making it an ideal choice for a wide range of applications. It also comes with a one-year warranty, so you can be sure it will stand up to the test of time. Whether you need a reliable Brushless Machine Motor or a Brushless Gearbox Motor, the Hetai 42BLFH03B-XXAG6 Gearbox Motor is an excellent choice.
Customization:
Motor Inspection
Support and Services:
- Technical Support:
- 24/7 online technical support
- Detailed FAQs and troubleshooting guides
- Phone and email support
- Services:
- Installation and setup guidance
- Regular maintenance and repair
- Warranty service
- Upgrades and component replacements
