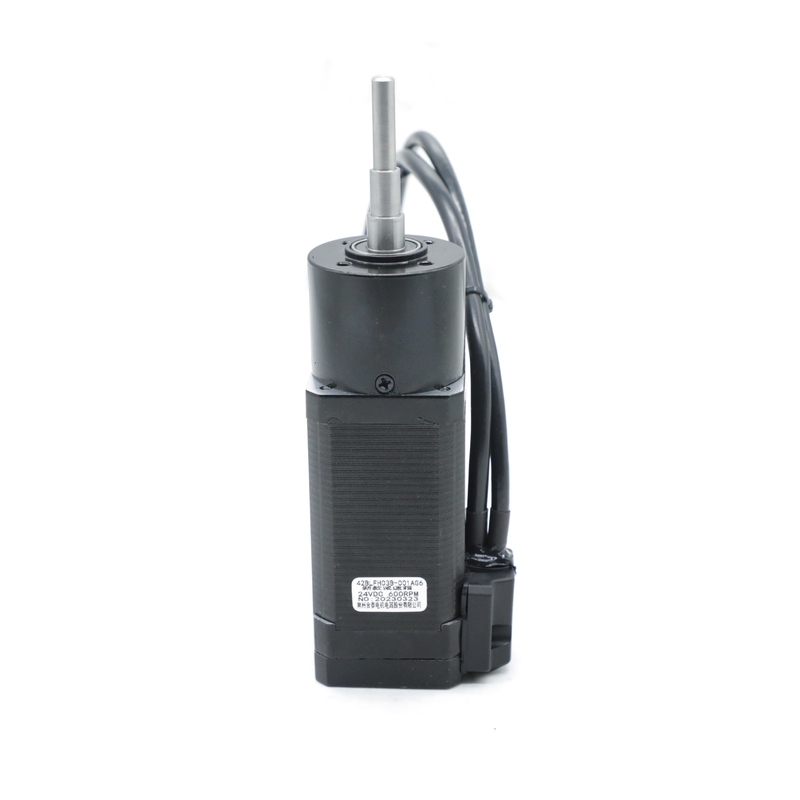

24V Gearbox Brushless Motor Low Noise≤60dB

Place of Origin Changzhou
Brand Name hetai
Model Number 42BLFH03B-XXAG6

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Powder Metallurgy Power 113W
No-load Current 0.2A Voltage 24V
Product Name Gearbox Brushless Motor Warranty 1 Year
Load Current 7.5A Gear Ratio 1:6
High Light

≤60dB Gearbox Brushless Motor

,

24V Gearbox Brushless Motor

,

≤60dB Gearbox Brushless Motor 24V

Leave a Message
Product Description

Product Description:

Introducing the Gearbox Brushless Motor, a reliable and high-performance brushless motor designed to meet all your requirements. This motor is made of high-quality materials and features a load current of 7.5A, a gear ratio of 1:6, a warranty of 1 year, and a compact size of 42mm*42mm. It can be used in a variety of applications, such as robotics, drones, RC vehicles, and more. The Gearbox Brushless Motor is designed to provide high torque and low noise operation, enabling you to optimize your system for maximum performance. This brushless motor is the perfect choice for your next project.


Features:

  • BL Electric Motor: Gearbox Brushless Motor
  • Noise: ≤60dB
  • Output Speed: 600RPM
  • Torque: 1.4N.m
  • Voltage: 24V
  • BL Gearbox Motor: Gearbox Brushless Motor
  • Brushless Machine Motor: Gearbox Brushless Motor

Technical Parameters:

Product Feature Value
Product Name BL Gearbox Motor, Brushless Gearbox Motor, Brushless Electric Motor
Weight 1.2Kg
No-load Speed 5000 RPM
No-load Current 0.2A
Warranty 1 Year
Material Powder Metallurgy
Power 113W
Gear Ratio 1:6
Output Speed 600 RPM
Voltage 24V
Load Current 7.5A

Applications:

The Hetai 42BLFH03B-XXAG6 Gearbox Motor is an ideal choice for applications that require reliable and efficient power. Made from high-grade powder metallurgy, it is designed to provide outstanding performance and durability. It features a power rating of 113W and a torque rating of 1.4N.m, as well as a load current of 7.5A. This brushless gearbox motor offers superior reliability and durability, making it an ideal choice for a wide range of applications. It also comes with a one-year warranty, so you can be sure it will stand up to the test of time. Whether you need a reliable Brushless Machine Motor or a Brushless Gearbox Motor, the Hetai 42BLFH03B-XXAG6 Gearbox Motor is an excellent choice.


Customization:

Gearbox Brushless Motor

Brand Name: Hetai

Model Number: 42BLFH03B-XXAG6

Place of Origin: Changzhou

No-load Current: 0.2A

Load Current: 7.5A

Material: Powder Metallurgy

Output Speed: 600RPM

Voltage: 24V

Features: BL Electric Motor, BL Electric Motor, BL Machine Motor, BL Brushless Motor
