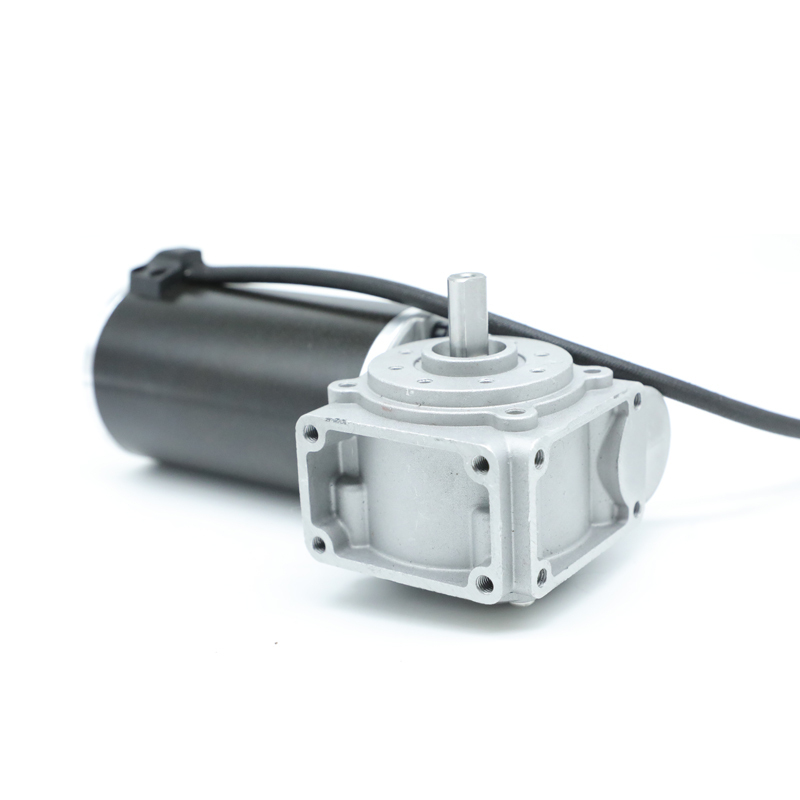

BL Gearbox Motor 7.5A Load Current ≤60dB Noise

  • BL Gearbox Motor 7.5A Load Current ≤60dB Noise
  • BL Gearbox Motor 7.5A Load Current ≤60dB Noise
Place of Origin Changzhou
Brand Name hetai
Model Number 42BLFH03B-XXAG6

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gearbox Brushless Motor Gear Ratio 1:6
No-load Speed 5000RPM Size 42mm*42mm
Power 113W Load Current 7.5A
Noise ≤60dB Output Speed 600RPM
High Light

7.5A BL Gearbox Motor

,

≤60dB BL Gearbox Motor

,

7.5A BL Gearbox Motor ≤60dB
Leave a Message
Product Description

Product Description:

Gearbox Brushless Motor is a BL Gearbox Motor with 1:6 gear ratio, optimized for high performance with noise lower than 60dB and maximum load current of 7.5A. This Brushless Gearbox Motor can reach a maximum output speed of 600RPM, making it an ideal choice for applications needing efficient and quiet power. With its reliable construction and versatile features, Gearbox Brushless Motor is an excellent choice for a variety of industrial applications.


Features:

  • Product Name: Gearbox Brushless Motor
  • Material: Powder Metallurgy
  • No-load Current: 0.2A
  • No-load Speed: 5000RPM
  • Size: 42mm*42mm
  • Keyword: Brushless Electric Motor, Brushless Machine Motor, BL Machine Motor

Technical Parameters:

Product Name Gearbox Brushless Motor
Weight 1.2Kg
Torque 1.4N.m
Noise ≤60dB
Load Current 7.5A
Gear Ratio 1:6
No-load Speed 5000RPM
No-load Current 0.2A
Material Powder Metallurgy
Warranty 1 Year

Applications:

The Brushless Gearbox Motor from Hetai is a high-torque, high-power motor designed for a variety of industrial and commercial applications. This BL Gearbox Motor has an impressive torque of 1.4N.m and a no-load current of 0.2A, making it perfect for applications where a high degree of power and control are required. The gear ratio of 1:6 provides a smooth and fast operation and the 24V voltage ensures optimal efficiency. This Brushless Electric Motor is model number 42BLFH03B-XXAG6 and is sourced from Changzhou. This motor is ideal for applications such as robotics, automation, and power generation.


Customization:

Customized Service for Gearbox Brushless Motor

We provide BL Gearbox Motor, Brushless Machine Motor, BL Electric Motor with the following properties:

  • Brand Name: Hetai
  • Model Number: 42BLFH03B-XXAG6
  • Place of Origin: Changzhou
  • Torque: 1.4N.m
  • Material: Powder Metallurgy
  • Size: 42mm*42mm
  • No-load Current: 0.2A
  • Warranty: 1 Year

Support and Services:

Gearbox Brushless Motor Technical Support and Service

Gearbox Brushless Motor offers an extensive range of technical support and service options to ensure that your motor operates optimally and meets your needs. Our technical support team is available to answer any questions or concerns you may have. We provide support by phone, email or online chat, and our team is committed to ensuring your satisfaction with every interaction.

Our service team is available for installation, repair, maintenance and troubleshooting of your motor. We provide on-site service to ensure that your motor operates at its best. We also offer preventative maintenance services to keep your motor running efficiently and for a longer period of time.

We are committed to providing the highest level of support and service for your Gearbox Brushless Motor. With our knowledgeable team and extensive range of solutions, we are confident that we can help you get the most out of your motor.
