1.2 Amps Peak Current DC BRUSHLESS Insulation Resistance 100MΩ Min.500V DC

Place of Origin China
Brand Name Hetai
Model Number 36BLX
Minimum Order Quantity 50
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 30day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Output Power 6Watts Rated Torque 0.02 N-m
Winding Type Star Ambient Temperature Range -20℃~+50℃
Torqueconstant 0.054N-m/Amps Insulation Resistance 100MΩ Min.500V DC
Body Length (L) 40mm Peak Torque 0.06 N-m
Leave a Message
Product Description

Product Description:

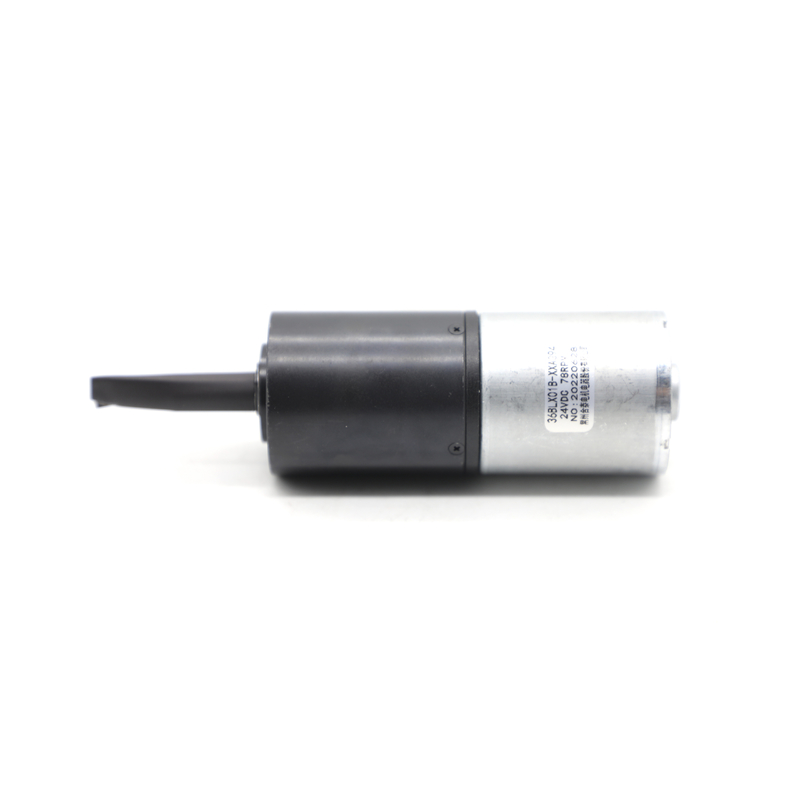

Product Description: Small size 36mm diameter and 40mm body length for easy integration into

space-constrained equipment. Lightweight: weight 0.15KG, suitable for weight-sensitive applications.


The motor has a Hall effect electrical angle of 120º, which gives it high accuracy and reliability.


The rotor inertia is 23g-cm2. this characteristic makes it very responsive and ensures that high levels of torque and power are available when required. With a speed of 3,000 rpm, the motor is capable of meeting some of the demands of high speed operation. The brushless design reduces noise and vibration during motor operation for smoother running.


The Brushless DC Motor is a high quality product with a range of features and benefits that make it ideal for a variety of industrial applications. Whether you are looking for a motor for use in robotics, electric vehicles or industrial automation, this motor will meet your needs and exceed your expectations.


Technical Parameters:

Body Length (L) 40mm
Back EMF 5.7V/kRPM
Dielectric Strength 700VAC 1minute
Rated Speed 3000rpm
Rated Torque 0.02 N-m
Winding Type Star
Insulation Resistance 100MΩ Min.500V DC
Insulation Class B
Torqueconstant 0.054N-m/Amps
Output Power 6Watts

DC Brushless, High Torque, High Torque



Brushless motors are a type of motor known for their high efficiency, low noise, and high reliability. As a result, they find widespread applications across various fields, including but not limited to:


1. Power Tools: Widely used in power tools such as drills, saws, and wrenches, where their high efficiency and torque provide improved performance and durability.


2. Automotive Industry: Used in electric vehicles for propulsion systems, electric power steering systems, electric seat adjustment systems, and other vehicle systems, offering higher energy efficiency and lower noise levels.


3. Aerospace: Widely applied in aircraft for operations like cabin door actuation, landing gear operations, and drone propulsion systems, meeting the efficiency and weight requirements of the aerospace sector.


4.Household Appliances: Found in various household appliances like washing machines, refrigerators, and vacuum cleaners, providing lower energy consumption and noise levels, enhancing appliance performance and user experience.


5.Industrial Automation: Utilized in automation equipment and robots for tasks such as automated assembly lines, logistics conveyor systems, and welding robots, achieving high efficiency and precise control.


6. Medical Devices: Commonly used in medical pumps, surgical instruments, imaging equipment, and more, where their low noise and high reliability make them an ideal choice for medical applications.


7. Consumer Electronic: Brushless motors are extensively used in consumer electronics products like smartphones for vibration motors, autofocus systems in camera modules, drones, and more, offering improved performance and user experience.


Therefore, due to their high efficiency, low noise, and reliability, brushless motors have significant application value across various fields, with their scope of application continuously expanding and deepening.

1.2 Amps Peak Current DC BRUSHLESS Insulation Resistance 100MΩ Min.500V DC 0


When it comes to customizing motor products, customers may need to meet specific application requirements or space limitations. Here are some customization options:


Wire Customization:

Customers may require wires of specific lengths or types to fit their particular installation scenarios or electrical layouts. Customized wires can ensure better connectivity and reliability.


Flange Customization:

Flanges are critical components that connect motors to external mechanical systems. According to customer requirements, flanges can be customized to fit specific installation dimensions, bolt hole layouts, or special material requirements.


Shaft Customization:

Customers may need customized shafts to adapt to specific connection requirements or to fit with other mechanical components.


Screw Customization:

Screws are crucial components in some motor systems, such as stepper motors or linear actuators. Customers may require customized screws to meet specific pitch, diameter, material, or corrosion resistance requirements.


Encoder Customization:

Encoders are used to measure the position and speed of motor rotation. Customized encoders can meet specific resolution, interface type, housing material, or environmental requirements.


Brake Customization:

Brakes are used to stop or hold motors in specific positions. Customized brakes can provide specific braking force, release time, installation methods, and other functionalities according to customer needs.


Gearbox Customization:

Gearboxes are used to adjust the speed and torque of motors. Customizing different types of gearboxes can meet specific speed ratios, output shaft configurations, load capacities, or noise requirements.


Other Customization Needs:

Customers may also require other customization options such as special housing designs, protection ratings, customized labeling, or packaging requirements. These customization options can help customers obtain motor products that meet their specific application needs and ensure their performance and reliability in particular environments.

1.2 Amps Peak Current DC BRUSHLESS Insulation Resistance 100MΩ Min.500V DC 1

Order Delivery Process

1. Receive order

2. Procure materials

3. Stator production

4. Testing

5. Rotor production

6. Testing

7. Packaging

8. Delivery to customer
