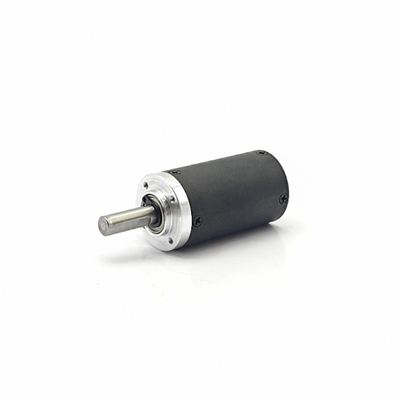

24MM Planetary Powder Metallurgy 1/14~1/576 90% ≤3° for medical equipment, with Brushless motor
| Place of Origin | Changzhou |
|---|---|
| Brand Name | Hetai |
| Certification | CE ISO |
| Model Number | PG24A-PM-ST |
| Minimum Order Quantity | 50 |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 30days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Powder Metallurgy | Bearing At Output | Porous Bearing |
|---|---|---|---|
| Radial Load (10mm From Flange) | ≤20 | Shaft Axial Load | ≤10 |
| Fit Force Max | ≤60 | Radial Play Of Shaft | ≤0.08 |
| Thrust Play Of Shaft | ≤0.3 | Backlash At No-load | ≤3° |
| Highlight | 1/14~1/576 Planetary Powder Metallurgy,90% Planetary Powder Metallurgy,Brushless Motor Planetary Powder Metallurgy |
||
Product Description
Product Description:
This product is a powder metallurgy reduction gearbox with a diameter of 24MM. It is specially designed for compact space and integrates high-precision powder metallurgy technology and advanced transmission mechanism. Its length ranges from 23.5 MMto 42MM, and its weight is light, ranging from 45g to 80g, making it easy to integrate into various small devices.
The reduction gearbox adopts precision manufacturing technology to ensure that it can maintain excellent performance in a wide range of working environments.
Technical parameters:
| Reduction | Absolute | Rated Tolerance Torque |
Momentary Tolerance Torque |
Efficiency | Length | Weight | Number of gear trains |
| Ratio | Reduction Ratio |
(Nm) |
(Nm) |
(%) | (mm) | g | |
| 1/4 | 1/4 | 0.1 | 0.3 | 90% | 23.5 | 45 | 1 |
| 1/6 | 1/6 | ||||||
| 1/24 | 1/24 | 0.4 | 1.2 | 80% | 29.2 | 55 | 2 |
| 1/144 | 1/144 | 0.8 | 2.5 | 72% | 34.7 | 65 | 3 |
| 1/576 | 1/576 | 1.0 | 3.0 | 65% | 43 | 80 | 4 |
Advantage Introduction:
High reduction ratio range: Provides a wide range of reduction ratio options from 1/4 to 1/576 to meet the precise needs for speed adjustment in different application scenarios.
High efficiency: The efficiency range is between 90% and 65%, which can maintain low energy consumption even during high-speed operation, improving overall system efficiency.
Strong carrying capacity: The rated allowable load ranges from 0.1NM to 1NM, suitable for handling a variety of tasks from light to medium loads, ensuring long-term stable operation.
Durability: The use of oil-impregnated bearings can effectively reduce friction and wear and increase service life. At the same time, the radial load capacity reaches 20N, adapting to a variety of complex working conditions.
Low backlash: The backlash is controlled within 3° to ensure transmission accuracy and is suitable for precision equipment with high requirements for position control.
Application areas:
Automation equipment: such as robot joints and precision transmission components in automatic assembly lines.
Consumer electronics: small drones, smart toys, camera gimbals and other products that require precise control and lightweight.
Medical equipment: such as surgical robots and transmission components in precision testing instruments.
