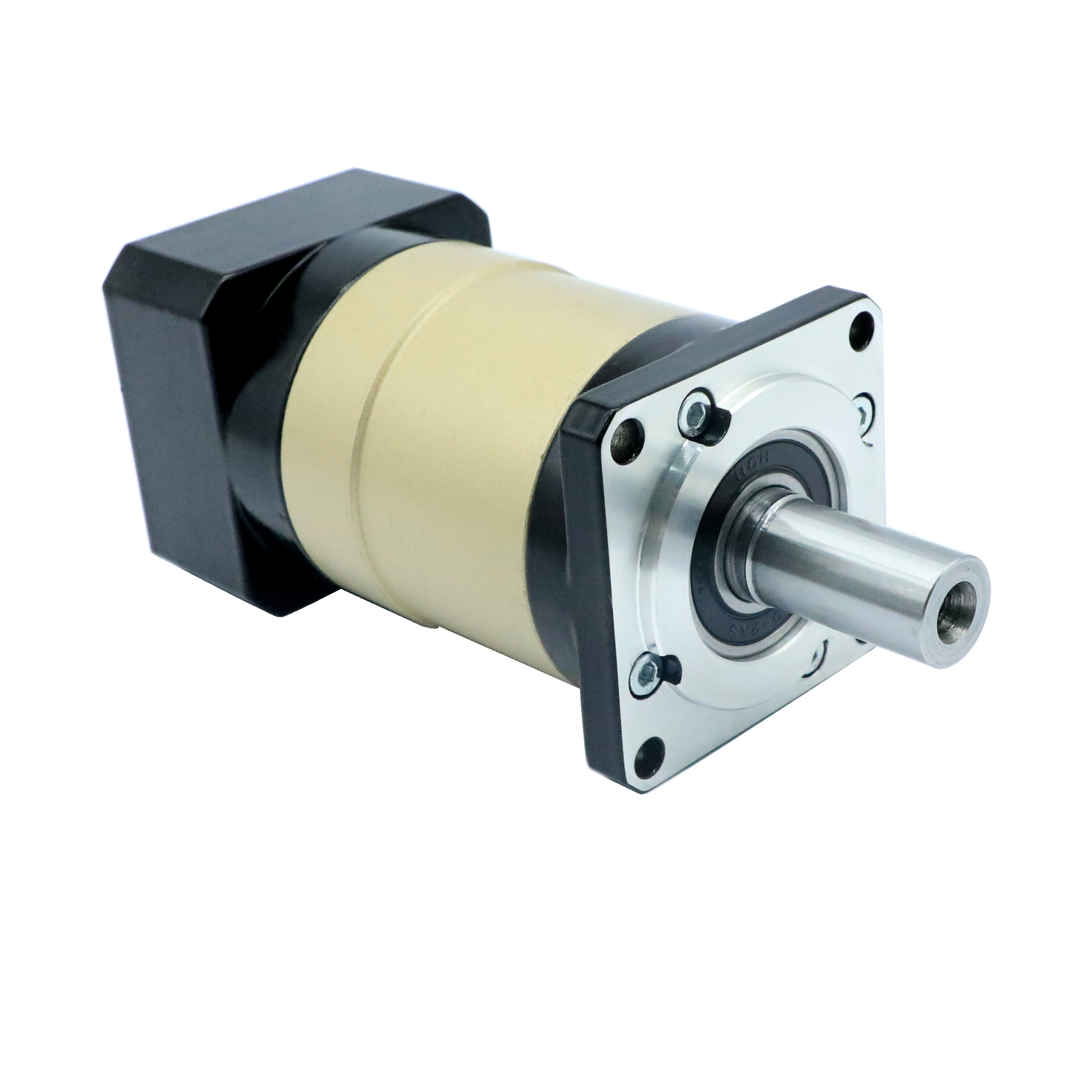

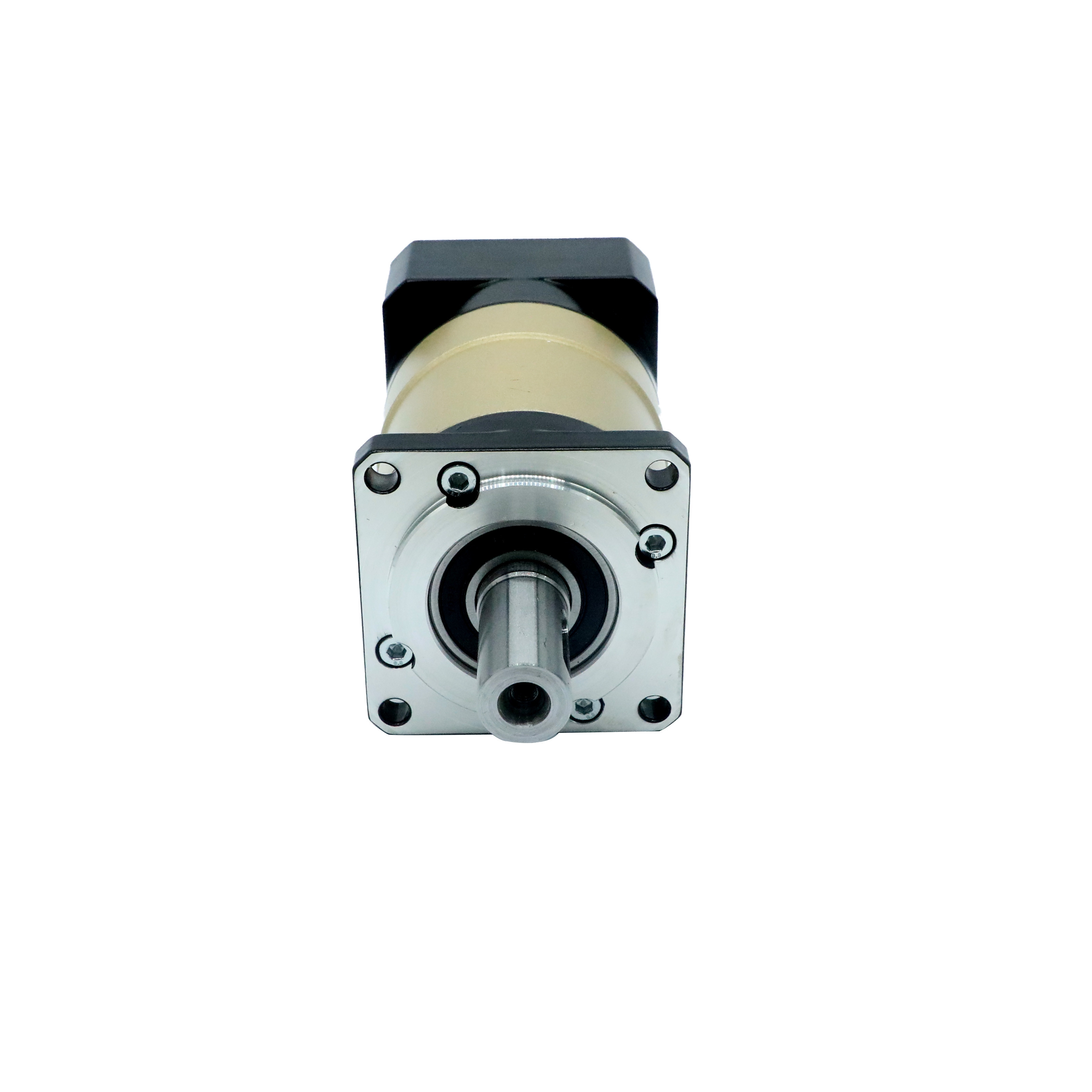

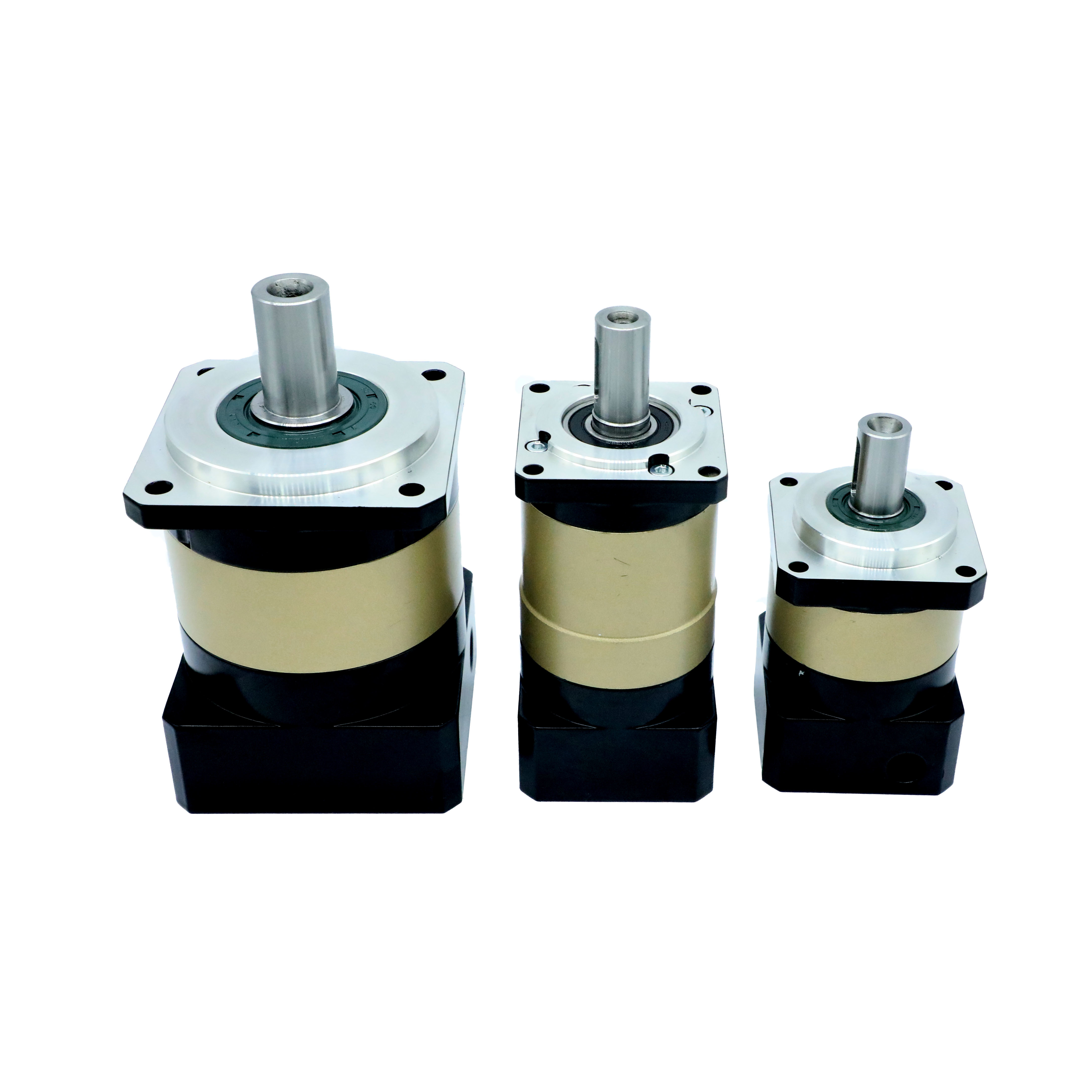

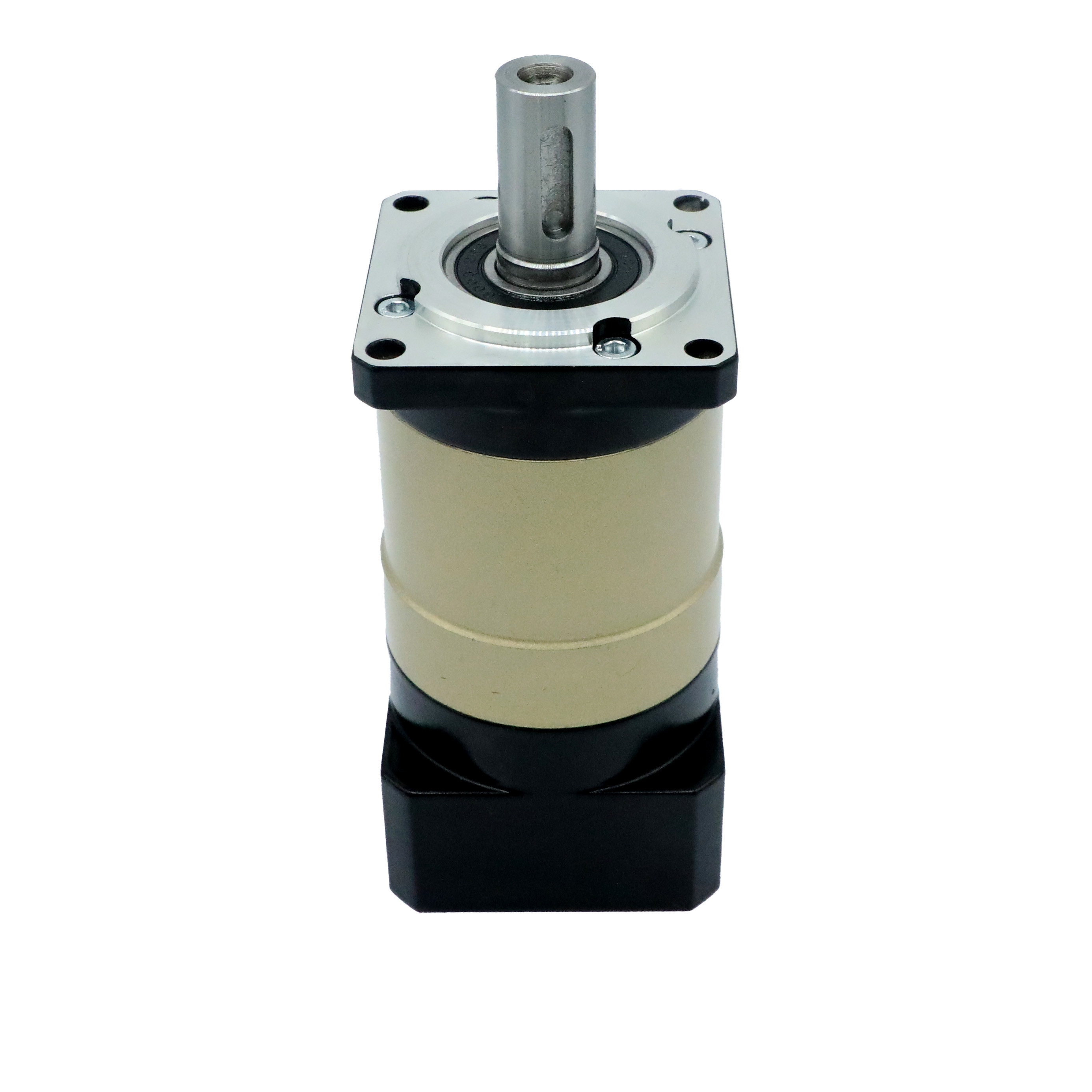

NEMA 24 TB60 Efficient Planetary Reducer Gearbox with Less Than 5 Arcmin Backlash
| Place of Origin | Changzhou |
|---|---|
| Brand Name | Hetai |
| Certification | CE ISO |
| Model Number | TB60 |
| Minimum Order Quantity | 50 |
| Delivery Time | 30days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Torque | Up To 588N.m | Product Name | Planetary Reducer Gearbox |
|---|---|---|---|
| Material | Steel | Ratio | 3-100 |
| Cooling Method | Air Cooling, Oil Cooling | Efficiency | Up To 97% |
| Lifetime | 15000(S1), 30000(S5) | Vibration | Less Than 5mm/s |
| Radial Force | 1170 N | Axial Force | 590 N |
| Operaring Temp | -10℃~+90℃ | Protection Class | IP65 |
Product Description
Download data sheet of:TB High-precision gearboxes.pdf
Product Description:
Planetary Reducer Gearbox — High Precision Gearbox with Low Noise and Vibration
Our Planetary Reducer Gearbox is designed to provide maximum efficiency and reliability with low noise and vibration. It is suitable for a wide range of applications, such as manufacturing, automotive, marine, and agriculture. The gearbox is equipped with high-precision gears and is capable of providing a backlash of less than 5 arcmin. It has a noise level of less than 65dB, and a vibration level of less than 5mm/s. The gearbox can be cooled by air cooling or oil cooling, depending on the specific application.
Our Planetary Reducer Gearbox is designed to provide high performance and durability. It is made of high-grade materials and undergoes rigorous quality control tests to ensure that it performs reliably and consistently. The gearbox is suitable for a wide range of applications and is easy to install and maintain. It is an ideal choice for those looking for a reliable and high-precision gearbox.
Support and Services:
Our Planetary Reducer Gearbox product comes with comprehensive technical support and services to ensure smooth operation and maximum efficiency. We offer:
- Installation assistance and guidance
- Product training and education
- Maintenance and repair services
- 24/7 technical support hotline
- Customization options to meet specific needs and requirements
Our team of experienced engineers and technicians are dedicated to providing exceptional service and support to our customers. Contact us for any technical assistance or service inquiries.
Technical Parameters:
| SPECIFICATION | ||||||||||||||
| SPEC | Stage | Ratio | TB042 | TB060 | TB090 | TB115 | TB142 | |||||||
| TE050 | TE070 | TE090 | TE120 | TE150 | ||||||||||
| Rate output torque. T2n(N-M) | 1 | 3 | 18 | 42 | 117 | 187 | 351 | |||||||
| 4 | 16 | 45 | 126 | 261 | 516 | |||||||||
| 5 | 16 | 48 | 141 | 311 | 588 | |||||||||
| 8 | 15 | 45 | 117 | 277 | 539 | |||||||||
| 10 | 12 | 36 | 114 | 242 | 505 | |||||||||
| 2 | 15 | 18 | 42 | 117 | 187 | 351 | ||||||||
| 20 | 16 | 45 | 126 | 261 | 516 | |||||||||
| 25 | 16 | 48 | 141 | 311 | 588 | |||||||||
| 30 | 18 | 42 | 117 | 187 | 351 | |||||||||
| 35 | 16 | 48 | 141 | 311 | 588 | |||||||||
| 40 | 16 | 45 | 126 | 261 | 516 | |||||||||
| 50 | 16 | 48 | 141 | 311 | 588 | |||||||||
| 70 | 15 | 45 | 117 | 277 | 539 | |||||||||
| 100 | 12 | 36 | 114 | 242 | 505 | |||||||||
| Emergrncy Stop Torque T2not (N-M)(1) | 1,2 | 3~100 | 3 times of Rate output torque | |||||||||||
| Rate Input Speed n | rpm | 1,2 | 3~100 | 3,000 | 3,000 | 3,000 | 2,000 | 2,000 | ||||||
| Max.Inptut Speed n | rpm | 1,2 | 3~100 | 5,000 | 5,000 | 5,000 | 4,000 | 3,000 | ||||||
| Service Life ** | hr | 1,2 | 3~100 | 15000(S1),30000(S5) | ||||||||||
| Operaring Temp | ℃ | 1,2 | 3~100 | -10℃~+90℃ | ||||||||||
| Protection | 1,2 | 3~100 | IP65 | |||||||||||
| Lubrication | 1,2 | 3~100 | Synthetic grease | |||||||||||
| Mounting Position | 1,2 | 3~100 | Any direction | |||||||||||
| Running Noise | dB(2) | 1,2 | 3~100 | ≦60 | ≦60 | ≦63 | ≦63 | ≦65 | ||||||
| Effciency | % | 1 | 3~10 | ≧97% | ||||||||||
| 2 | 15~100 | ≧95% | ||||||||||||
Mechanical Drawing:
Applications:
Hetai TB42 Planetary Reducer Gearbox: High Precision Gearbox for All Applications
Hetai's TB42 Planetary Reducer Gearbox is a high precision and durable gearbox designed to meet the demands of a wide variety of applications. The TB42 has a strong steel material construction and is suitable for input speeds of 3000-5000rpm. It features an impressive backlash of less than 5 arcmin which allows for precise control and movement. The TB42 is available in a range of ratios from 3 to 100 and can be cooled using either air or oil cooling. It is certified with both CE and ISO and a minimum order quantity of 50. The TB42 is an ideal choice for various applications, including industrial automation, robotics, medical technology, aerospace, and more.
Customization:
Planetary Reducer GearboxBrand Name: Hetai
Model Number: TB42
Place of Origin: Changzhou
Certification: CE ISO
Minimum Order Quantity: 50
Ratio: 3-100
Input Speed: 3000-5000rpm
Output Torque: Up To 588N.m
Cooling Method: Air Cooling, Oil Cooling
Material: Steel
Highlights: Our Planetary Reducer Gearbox is a reliable and powerful solution for industrial applications. It features a 3-100 ratio, input speed up to 5000RPM, and output torque up to 588N.m. It is made of steel and is available with air cooling and oil cooling methods. It is CE and ISO certified and has a minimum order quantity of 50.
Support and Services:
Planetary Reducer Gearbox Technical Support and Service
- 24/7 online technical support
- Expert advice on product selection and application
- On-site troubleshooting and maintenance
- Comprehensive repair and overhaul services
- Technical training and education
- OEM-customized design and development
-
Customization:
Which motor components can be customized?
Additional custom parts include: custom shafts, standard shafts, keyed shafts, D-cut shafts, threaded shafts, etc.
① Custom shafts
② Custom flanges, including flange shape and flange mounting holes
③ Custom performance
④ Custom IP rating
⑤ Custom insulation class
⑥ Custom cables
⑦ Custom connectors
⑧ Custom encoders
⑨ Custom integrated drives and brakes
