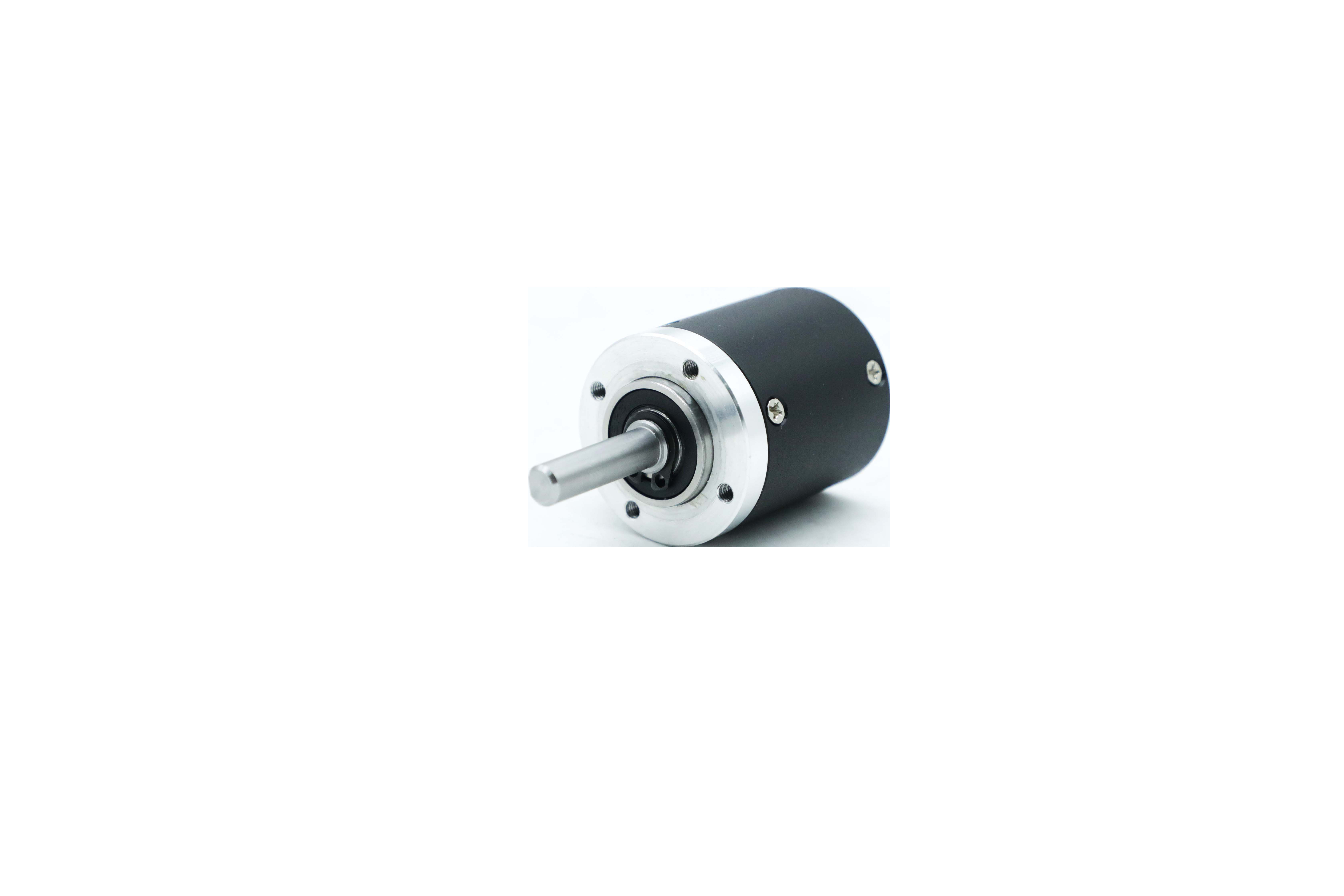

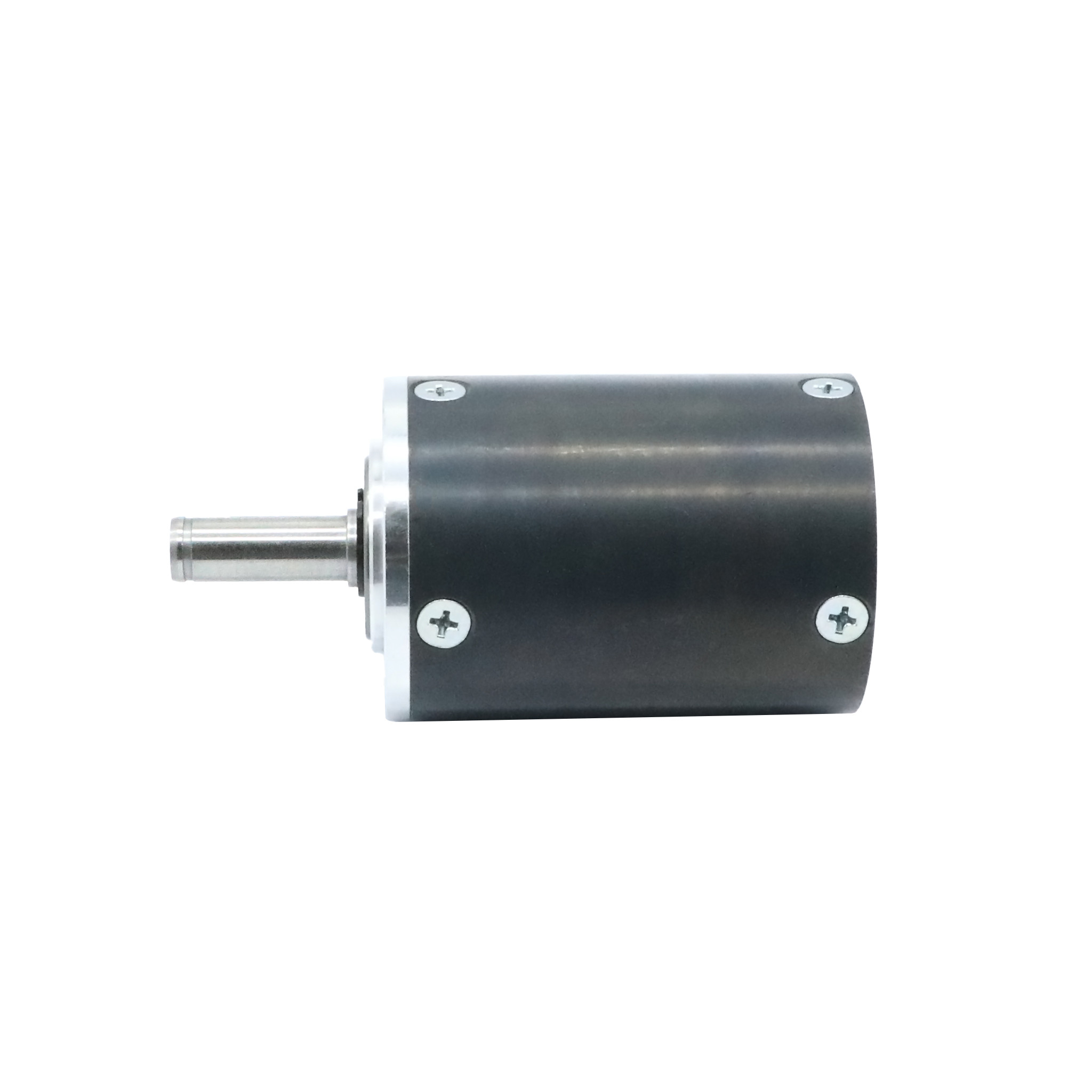

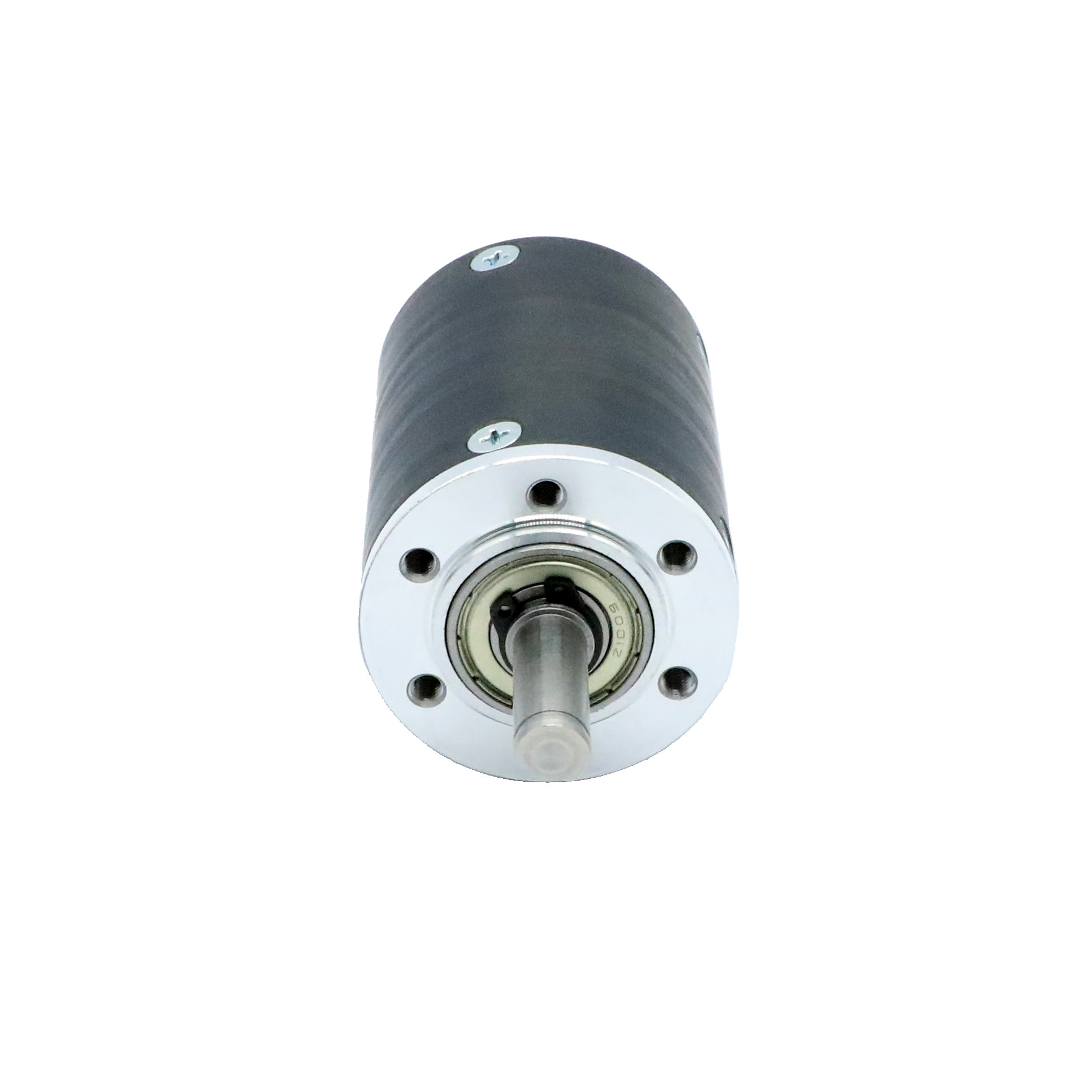

32MM Gearbox 2.5NM Low Noise For Medical Equipment With Brake
| Place of Origin | Changzhou |
|---|---|
| Brand Name | Hetai |
| Certification | CE ISO |
| Model Number | PG32A-PM-ST |
| Minimum Order Quantity | 50 |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 30days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shaft Axialload | ≤30 | Housing Material | Powder Metallurgy |
|---|---|---|---|
| Thrust Play Of Shaft | ≤0.3 | Radial Play Of Shaft | ≤0.07 |
| (N)Shaft Press Fit Force Max | ≤300 | Backlash At No-load | ≤1.5° |
| Radial Load 10mm Form Flange | ≤80 | Weight | 87g |
| Highlight | 32MM Gearbox,Low Noise Gearbox,Medical Equipment Gearbox |
||
Product Description
Down load data sheet of :PG32A-PM-ST.pdf
Product Description:
This is a 32mm diameter reduction gearbox designed for small equipment and high-precision applications.
Its outer casing is manufactured using advanced powder metallurgy technology, ensuring structural sturdiness and durability.
The motor integrates a deceleration function, making the output torque larger and the speed more stable. It is suitable for a variety of occasions that require precise control and efficient transmission.
Features:
Compact design: The diameter is only 32mm, the length ranges from 29.7mm to 43.1mm, and the weight ranges from 87g to 129g, making it ideal for installation environments with limited space.
High-performance materials: The shell is made of powder metallurgy material, which not only improves the overall mechanical strength, but also has good wear resistance and corrosion resistance.
High load-bearing capacity: the radial load does not exceed 80N, the axial load does not exceed 30N, and the maximum pressing force of the spindle does not exceed 300N, ensuring the stable operation of the motor under heavy load conditions.
Precise transmission: backlash is less than or equal to 1.5°, ensuring high-precision transmission and positioning accuracy.
Wide reduction ratio range: The reduction ratio ranges from 1:3.7 to 1:190.1. The appropriate reduction ratio can be selected according to specific needs to meet a variety of application scenarios.
High efficiency: The efficiency is between 90% and 72%, and it can maintain low energy consumption and heat generation even when operating at high speed.
High torque output: The maximum rated allowable load is 2.5Nm, and the maximum instantaneous allowable load is 7.5Nm. It is suitable for applications requiring high torque output.
Technical Parameters:
Reduction Ratio |
Absolute Reduction Ratio |
RatedToleranceTorque (Nm) |
Momentary ToleranceTorque (Nm) |
Efficiency (%) |
Length (mm |
Weight (g) |
Numberof geartrains |
| 1:3.7 | 1:35 | 0.3 | 1 | 90 | 29.7 | 83 | 1 |
| 1:4.8 | 1:4 | ||||||
| 1:5.7 | 1:4 | ||||||
| 1:13.8 | 1:137 | 1.2 | 3.5 | 80% | 36.4 | 108 | 2 |
| 1:17.8 | 1:17 | ||||||
| 1:21.4 | 1:215 | ||||||
| 1:23.0 | 1:23 | ||||||
| 1:27.6 | 1:27 | ||||||
| 1:79.3 | 1:79 | 2.5 | 7.5 | 72% | 43.1 | 129 | 3 |
| 1:85.6 | 1:851 | ||||||
| 1:102.5 | 1:102 | ||||||
| 1:110.6 | 1:1107 | ||||||
| 1:122.8 | 1:1225 | ||||||
| 1:132.5 | 1:132 | ||||||
| 1/158.7 | 1:1587 | ||||||
| 1/190.1 | 1:1902 |
Applications:
This reduction gearbox motor is widely used in various small equipment and high-precision transmission systems, including but not limited to:
- Automation equipment: such as robot joints, precision assembly equipment, etc.
- Medical equipment: such as surgical instruments, rehabilitation equipment, etc.
- Consumer electronics: such as smart door locks, camera heads, etc.
- Laboratory instruments: such as precision measuring equipment, analytical instruments, etc.
Customization:
When it comes to customizing motor products, customers may need to meet specific application requirements or space limitations. Here are some customization options:
Wire Customization:
Customers may require wires of specific lengths or types to fit their particular installation scenarios or electrical layouts. Customized wires can ensure better connectivity and reliability.
Flange Customization:
Flanges are critical components that connect motors to external mechanical systems. According to customer requirements, flanges can be customized to fit specific installation dimensions, bolt hole layouts, or special material requirements.
Shaft Customization:
Customers may need customized shafts to adapt to specific connection requirements or to fit with other mechanical components.
Screw Customization:
Screws are crucial components in some motor systems, such as stepper motors or linear actuators. Customers may require customized screws to meet specific pitch, diameter, material, or corrosion resistance requirements.
Encoder Customization:
Encoders are used to measure the position and speed of motor rotation. Customized encoders can meet specific resolution, interface type, housing material, or environmental requirements.
Brake Customization:
Brakes are used to stop or hold motors in specific positions. Customized brakes can provide specific braking force, release time, installation methods, and other functionalities according to customer needs.
Gearbox Customization:
Gearboxes are used to adjust the speed and torque of motors. Customizing different types of gearboxes can meet specific speed ratios, output shaft configurations, load capacities, or noise requirements.
Other Customization Needs:
Customers may also require other customization options such as special housing designs, protection ratings, customized labeling, or packaging requirements. These customization options can help customers obtain motor products that meet their specific application needs and ensure their performance and reliability in particular environments.
