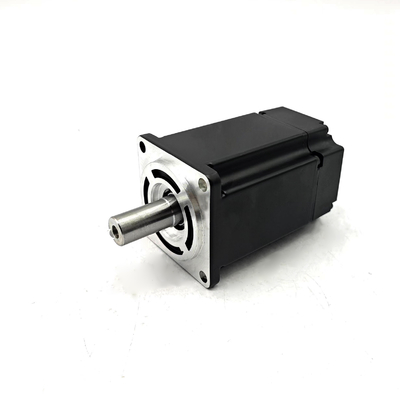

3000RPM 0.16NM 400mm Diameter AC Servo Motor With Brake For Automation Equipment

TS Series Servo Motor (40mm diameter) Product Description:

TS Series Servo Motor is a compact, high-performance drive device designed for precision control scenarios.

Powered by 220VAC voltage, it has high efficiency, fast response and lightweight features, suitable for space-constrained automation systems.

Supports braking function to ensure emergency braking safety and meet high standards in industrial and medical fields.

Product highlights:

Compact and efficient:

With a diameter of only 40mm, a length of 61.3mm and a weight of 0.4kg,

it can be easily integrated into a small space and is suitable for embedded installation.

High dynamic performance:

Rated speed of 3000rpm, peak value of 6000rpm, with low rotor inertia (0.03 kg·m²),

quick response and improved equipment cycle efficiency.

Safe and reliable:

Electromagnetic brakes can be optionally installed to prevent load slippage during power failure or failure,

ensuring high-precision positioning safety.

Energy-saving and stable:

Low rated current (0.56A) and optimized electromagnetic design reduce energy consumption,

reduce heat generation and extend service life.

Technical Parameters Drawings:

1:With brake
2:Without brake

Specifications	TS4005A-05S30	TS4005A-10S30
Rated voltage (VAC)	220	220
Rated current (Amps)	0.56	1.20
Rated power (W)	50	100
Rated torque (N.m)	0.16	0.32
Peak torque (N.m)	0.48	0.96
Rated speed (RPM)	3000	3000
Maximum speed (RPM)	6000	6000
Back EMF constant (V/kRPM)	16	16
Torque constant (N.M/Amps)	0.13	0.27
Rotor inertia (Kg.m²)	0.03	0.045
Line resistance (Q)	23	11
Line inductance (mH)	16	8
Electrical time constant (Ms	0.86	0.86
Weight without brake (Kg)	0.40	0.50
Weight with brake (Kg)	0.83	0.93
Length (mm)	61.3	73.3
Level	10
Protection level	IP65
Insulation level	F
Working environment temperature	0~+40℃
Working environment humidity	<90%RH without condensation)

Application areas:

Industrial automation: Robotic arms, conveyor belt positioning, CNC indexing devices.

Medical equipment: Precision infusion pumps, surgical robot joint drives.

Intelligent robots: AGV trolleys, collaborative robot joint control.

Precision instruments: ptical focusing systems, laboratory automation equipment.

Light industrial machinery: Packaging machine sealing modules, textile machine tension control.
