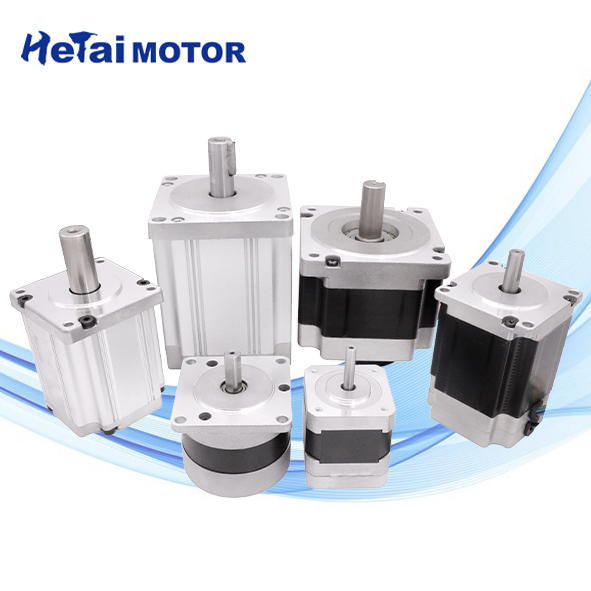

HETAI Brushless DC Motor 22mm--110mm

Brand Name:	Hetai
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Brushless DC Motor

Commutation:

Brushless

Reduction Ratio:

1：76

Output Torque:

1.5 N.m

Output Speed:

94 RPM

Max Radial Load:

≤ 120N

Shaft Axial Load:

≤ 80N

Protection Level:

IP40

Winding Type:

Star

Hall Effect Angle:

120° Electrical Angle

Insulation Class:

Ambient Temperature:

-20℃~+50℃

Insulation Resistance:

100MΩ Min.500VC DC

Dielectric Strength:

500VAC 1 Minute

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

1000pcs/month

Highlight:

nema 14 36mm 2.5nm

brushless motor electric lawn mower

gearbox for nema 14

Product Description

Hota Electric Brushless Motor Series

High Efficiency • Precision Control • Modular Design

Product Overview

Hota’s brushless motor series covers a wide range of sizes (22mm–110mm diameter), power outputs (5W–2000W), and speeds (300–10,000 RPM), delivering high torque density, low noise, and long service life. Compatible with gearboxes, brakes, and encoders, these motors offer flexible solutions for diverse industrial applications.

Key Advantages

Advantage	Details
High Efficiency	>90% efficiency, saving 15–30% energy vs. brushed motors.
Wide Speed Range	Constant torque/power adjustment, supporting 300–10,000 RPM.
Modular Expansion	Integrates with gearboxes (5–100 ratio), brakes (<20ms response), and encoders (17bit).
Maintenance-Free	Brushless design, >20,000 hours lifespan, IP54 protection.
Smart Control	Supports PWM/analog signals and CANopen/RS485 communication (optional).

HETAI Brushless DC Motor 22mm--110mm 0

HETAI Brushless DC Motor 22mm--110mm 1

Typical Applications

Industrial Automation: Robotic arms, conveyors, CNC index tables.
Medical Equipment: Centrifuges, ventilator pumps, surgical tools.
New Energy: AGV drives, EV charging station cooling fans.
Smart Home: Premium appliances, automated curtain motors.

FAQ

1.Are you a factory?

Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.

2.Can I test the sample?

Yes, samples and freight are charged.

3.Can I get a Customized product?

Sure, all the products can be customized based on special requests.

4.How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

5. What are the payment terms?

T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

6. Is this your final price? May I have the discount?

Our price is the factory price. If you have a large quantity, we can negotiate about the discount.

7.What is the Warranty for your products?

Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
