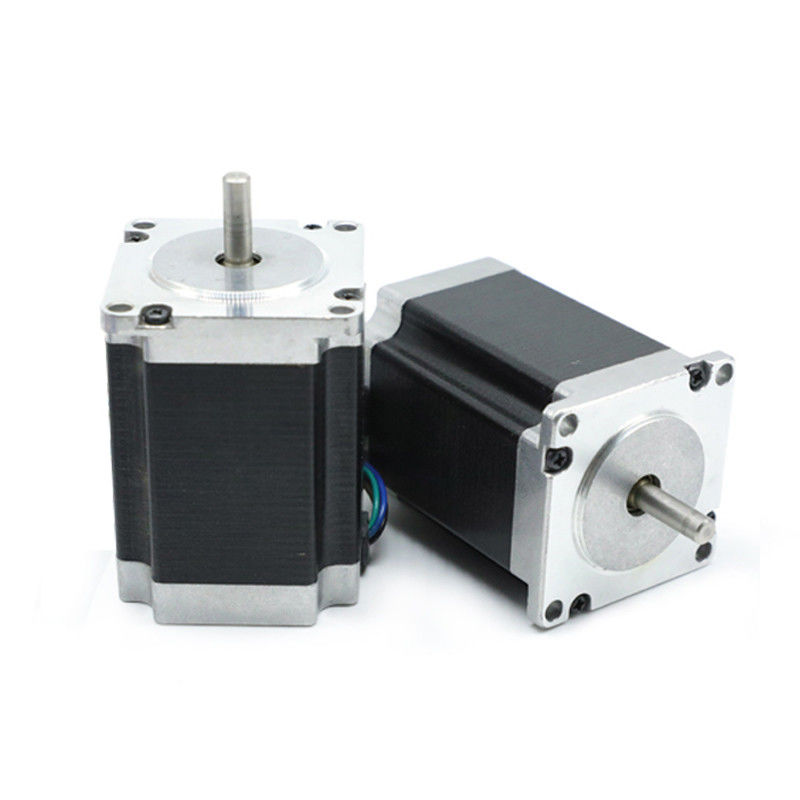

2 Phase Hybrid Stepper Motor Nema 23 2 Nm 369 Oz In

Name: 2 Phase Hybrid Stepper Motor Nema 23 2 Nm 369 Oz In
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 57BYGH
Availability: InStock

Brand Name:	Hetai
Model Number:	57BYGH
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Hybrid Stepping Motor

Step Angle:

1.8 °

Step Accuracy:

± 5%

Temperature Rise:

80 ℃ Max

Ambient Temperature:

-20℃~+50℃

Insulation Resistance:

100MΩ Min.500VC DC

Dielectric Strength:

500VAC 1 Minute

MAX Radial Force:

75N (10mm From Front Flange)

MAX Axial Force:

15N

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

10000 pcs/month

Highlight:

Motor Nema 23 2 Nm 369 Oz In

step motor 57bygh 369 Oz In

57bygh stepper motor 369 Oz In

Product Description

57BYGH 2 phase 2nm micro nema23 Hyrid stepping motor

The ADVANTAGE of Step motor:

Advantages of step motors are low cost, high reliability, high torque at low speeds, and simple, rugged construction that operates in almost any environment. The main disadvantage in using a stepper motor is the resonance effect often exhibited at low speeds and decreasing torque with increasing speed.

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (G.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57BYGH001A	1.8	4	6.0	0.5	12	20	3.5	41	0.45
57BYGH048-11	1.8	4	4.4	2.0	2.2	5.0	6.0	41	0.45
57BYGH201-22A	1.8	4	6.6	0.6	11	25	7.0	51	0.65
57BYGH218-45	1.8	4	2.6	2.0	1.3	4	8.0	51	0.65
57BYGH420-77	1.8	6	3.8	2.0	1.9	3.5	9.0	56	0.70
57BYGH432-63A	1.8	6	2.4	3.0	0.8	1.2	9.0	56	0.70
57BYGH633-131	1.8	6	3.0	3.0	1.0	1.8	13.5	78	1.00
57BYGH639-10E	1.8	4	2.1	4.2	0.5	1.6	18	78	1.13
57BYGH801-01	1.8	6	3.3	3.0	1.1	2.5	16	84	1.13
57BYGH815	1.8	4	7.36	1.6	4.6	16	20	84	1.13

Electrical Specification:

2 Phase Hybrid Stepper Motor Nema 23 2 Nm 369 Oz In 0

2 Phase Hybrid Stepper Motor Nema 23 2 Nm 369 Oz In 1

***Note: The products can be customized by your request. Please contact us for more details.
