50vdc 2.5 A Stepper Motor Controller Driver Two Phase Industrial
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE |
| Model Number | HTD525 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 7~10 working days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stepping Motor Driver | Usage | Drive Motor Of 28,35,39,42mm |
|---|---|---|---|
| Use Occasion | Avoid Dust, Oil And Corrosive Gases | Cooling Mode | Natural Or Forced Cooling |
| MAX Viration | 5.9m/S2 Max | Working Temperature | 0~+40°C |
| Highest Environment Humidity | 90%RH(No Condensation) | Net Weight | 0.273 Kg |
| Size | 93*97.1*21mm | ||
| High Light | Industrial Stepper Motor Controller,Two Phase Stepper Motor Controller,50vdc stepper motor controller |
||
Product Description

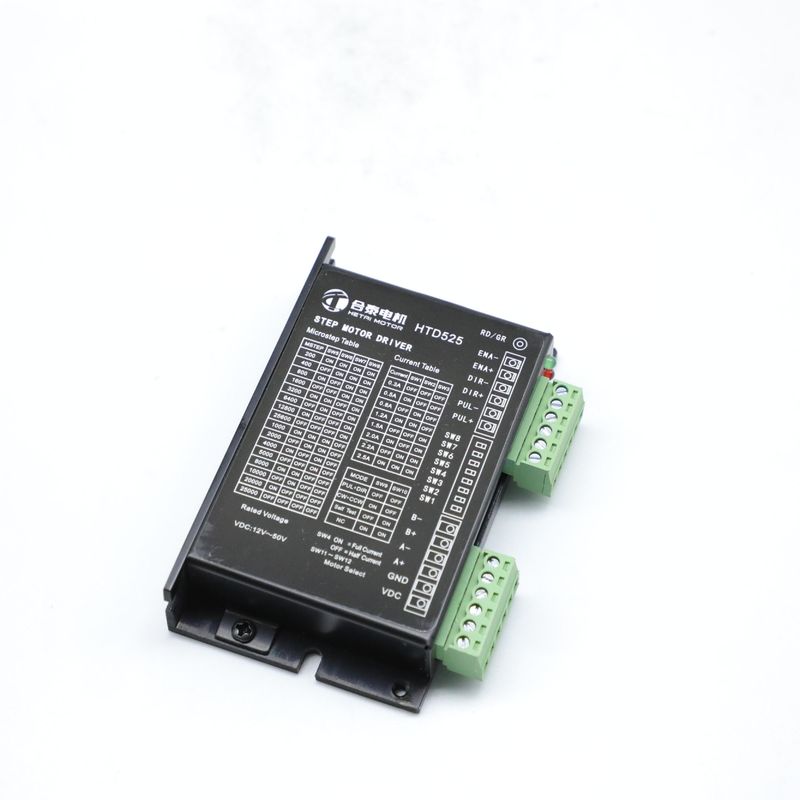

HTD525 CE certified DC50V 2.5A max Stepping Motor Driver
HTD525 is a 2-Phase Stepper Motor Driver with super low-noise and large torque. Its extraordinary quiet and high-speed effects have been trusted and praised by customers. This kind of driver suits 28, 35, 39, 42 2-phase stepper motor, etc. The maximum output current is 2.5A. HTD525 stepper drive is the most competitive high-performance product currently on sale.
●New ARM core M4 32-bit processor
●Maximum output current - 2.5A
●Maximum input voltage 50VDC
●Maximum input pulse frequency: above 2MHZ
●Maximum number of subdivisions: 25600
●Double pulse and pulse & direction mode switching
●Pulse, direction, enable 5~24V input
●Matching Motor parameter selection for best results
●The self-test function detects motor and drives status
Electrical Indicators
| Drive parameters | MIn | Rated | Max | Unit |
|---|---|---|---|---|
| Input voltage DC(V) | 12 | 24 | 50 | VDC |
| Drive current (A) | 0.3 | - | 2.5 | A |
| Input pulse frequency(Hz) | 1 | - | 1M | Hz |
| Input pulse width (ns) | 250 | - | 5E+8 | ns |
| Input signal voltage (VDC) | 3.6 | 5 | 24 | VDC |
Environmental indicators
|
Cooling method |
Natural cooling or forced cooling |
|
Use occasions |
Avoid dust, oil and corrosive gases |
|
Operating temperature |
0°C--40°C |
|
Environmental humidity |
90%RH (no condensation) |
|
Storage temperature |
-10°C--70°C |
|
Vibration |
5.9m/S㎡ max |
Stepper motor drivers are specifically designed to drive step motors, which are capable of continuous rotation with precise position control, even without a feedback system. Our stepper motor drivers offer adjustable current control and multiple-step resolutions, and they feature built-in translators that allow a stepper motor to be controlled with simple step and direction inputs. These modules are generally basic carrier boards for a variety of stepper motor driver ICs that offer low-level interfaces like inputs for directly initiating each step. An external microcontroller is typically required for generating these low-level signals.
