Created with Pixso. 4 Pole 4000 Rpm Brushless Dc Motor 33mm 24V 2A
  • Name
  • Name

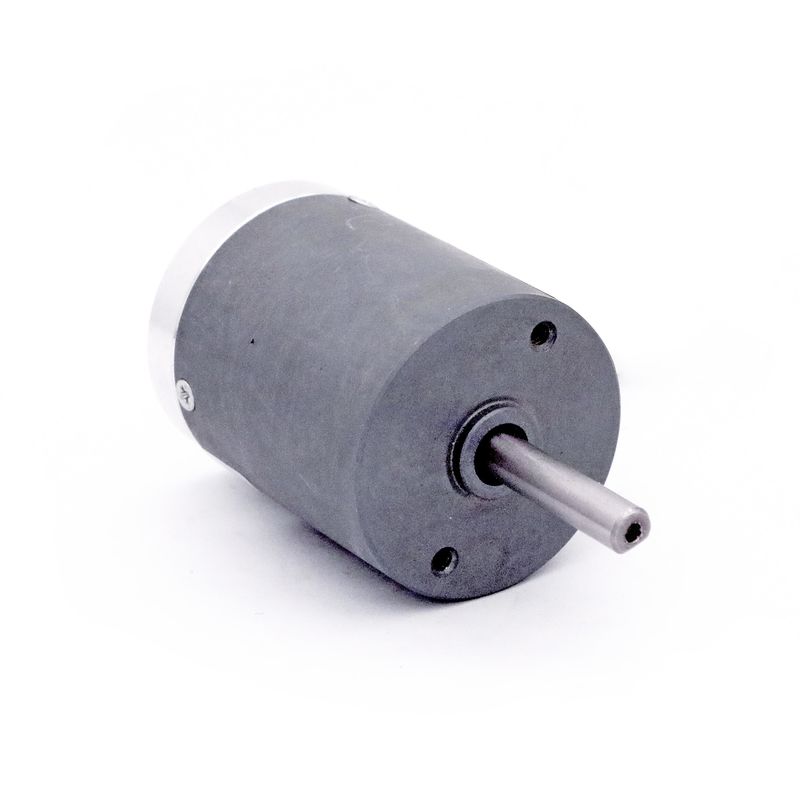

4 Pole 4000 Rpm Brushless Dc Motor 33mm 24V 2A

Brand Name: Hetai
Model Number: 33BL01C
MOQ: 50
Price: USD
Delivery Time: 28-31
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ROHS ISO
Product Name:
Brushless DC Motors
Winding Type:
Star
Hall Effect Angle:
120° Electrical Angle
Insulation Class:
B
Ambient Temperature:
-20℃~+50℃
Insulation Resistance:
100MΩ Min.500VC DC
Dielectric Strength:
600VAC 1 Minute
MAX Radial Force:
15N (10mm From Front Flange)
MAX Axial Force:
10N
Protection Level:
IP40
Packaging Details:
Carton with Inner Foam Box, Pallet
Supply Ability:
5000pcs/month
Highlight:

4000rpm brushless dc motor 33mm

,

3 phase 4 pole brushless dc motor 33mm

,

4 pole bldc motor 33mm

Product Description

33BL 3 phase 24V 4000RPM 2A micro electric brushless dc motor

  • Excellent controllability
  • Reliable operation and durable
  • Easy to install
  • Low noise
  • Better Longevity
Product Name Brushless DC Motors Winding Type Star
Hall Effect Angle 120° Electrical Angle Insulation Class B
Ambient Temperature -20℃~+50℃ Insulation Resistance 100MΩ Min.500VC DC
Dielectric Strength 600VAC 1 Minute MAX Radial Force 15N (10mm From Front Flange)
MAX Axial Force 10N Protection Level IP40



For the 33BL series, it is lightweight and space-saving, very suitable for those who are tight in install space.



Electrical Specification:



    Model
Specification Unit 33BL01C
Number Of Phases Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 24
Rated Speed Rpm 4000
Rated Current A 0.43
Rated Torque N.m 0.02
Rated Power W 8.3
Peak Torque mN.m 0.06
Peak Current Amps 1.3
Torque Constant N.m/A 0.045
Back EMF constant V/kRPM  4.8
Body Length mm 42.5
Weight Kg 0.16



4 Pole 4000 Rpm Brushless Dc Motor 33mm 24V 2A 0



***Note: The products can be customized by your request. Please contact us for more details.

*Products can match gearbox 32mm



Wiring Diagram:





ELECTRICAL CONNECTION TABLE
FUNCTION COLOR
+5V RED UL1007 26AWG
HALL A GREEN
HALLB BLUE
HALLC WHITE
GND BLACK
PHASE A YELLOW
PHASE B ORANGE
PHASE C BROWN
