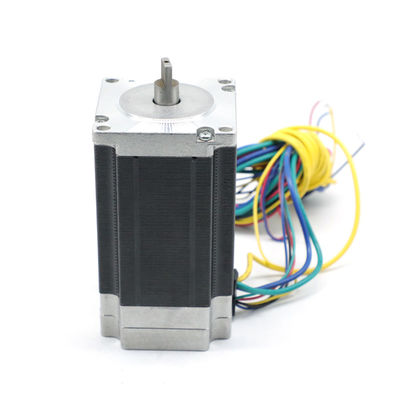

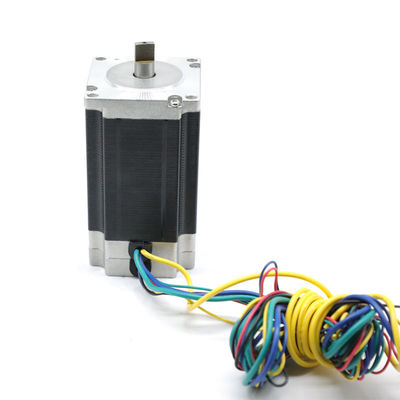

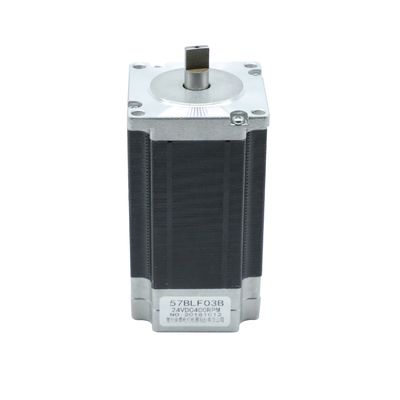

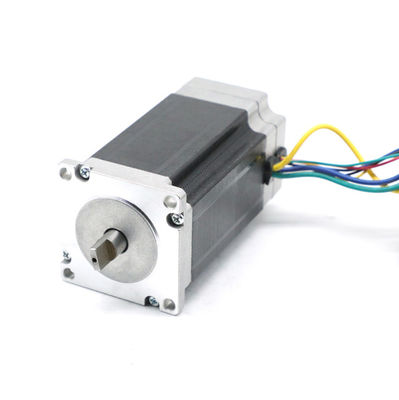

8 Pole 3 Phase Brushless Dc Motor 24v 26W 400RPM 0.3Nm 57BLF03B
| Place of Origin | China |
|---|---|
| Brand Name | HeTai |
| Certification | CE ROHS ISO |
| Model Number | 57BLF03B |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brushless DC Motor | Hall Effect Angle | 120° Electrical Anglel |
|---|---|---|---|
| Winding Type | Star | Insulation Class | B |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
| Ambient Temperature | -20℃~+50℃ | Max Radial Force | 115N (10mm From Front Flange) |
| Max Axial Force | 45N | Weight | 1.59kg |
| High Light | 8 pole bldc motor 0.3Nm,8 pole brushless dc motor 57BLF03B,Brushless Dc Motor 8 Pole 24v 57BLF03B |
||
Product Description
57BLF03B 26W 400PRM CE ROHS ISO customizable high effciency brushless motor
Brushless motors offer several other advantages, including:
Higher torque to weight ratio
Increased torque per watt of power input (increased efficiency)
Increased reliability and lower maintenance requirements
Reduced operational and mechanical noise
Longer lifespan (no brush and commutator erosion)
Elimination of ionizing sparks from the commutator (ESD)
Near-elimination of electromagnetic interference (EMI)
Electrical Specification:
| Specification | Unit | 57BLF03B |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 24 |
| Rated Speed | Rpm | 400 |
| Rated Current | A | 0.3 |
| Rated Torque | N.m | 0.6 |
| Rated Power | W | 26 |
| Peak Torque | N.m | 0.3 |
| Peak Current | Amps | 0.6 |
| Torque Constant | N.m/A | 0.208 |
| Back EMF constant | V/kRPM | 21.8 |
| Body Length | mm | 101 |
| Weight | Kg | 1.59 |
*Products can be customized by special request.
*Products can match gearbox 36,42,56
Wiring Diagram
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALLB | GREEN | |
| HALLC | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL1015 20AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |
Mechanical Dimension
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
