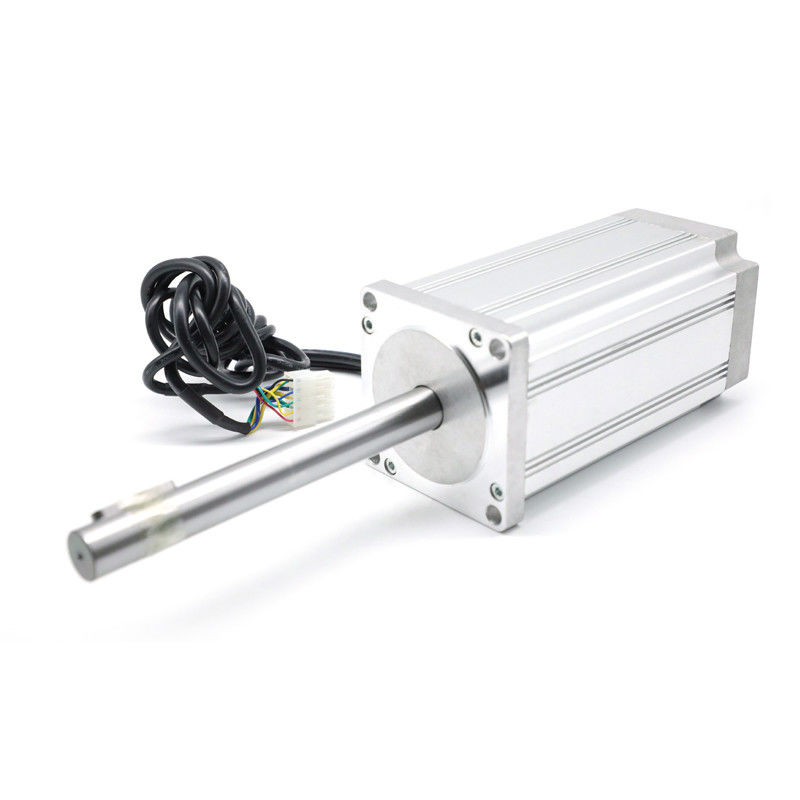

1 Nm Large Industrial Bldc Brushless Motor 2600RPM 310v 270W 80mm 80BL03F
| Place of Origin | China |
|---|---|
| Brand Name | HeTai |
| Certification | CE ROHS ISO |
| Model Number | 80BL03F |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brushless DC Motor | Rated Voltage | 310VDC |
|---|---|---|---|
| Rated Torque | 1 Nm | Insulation Class | B |
| Winding Type | Star | Hall Effect Angle | 120° Electrical Angle |
| Dielectric Strength | 600VAC 1 Minute | Insulation Resistance | 100MΩ Min.500VC DC |
| Max Radial Force | 220N (10mm From Front Flange) | Max Axial Force | 60N |
| High Light | Industrial Brushless Dc Motor 310v 270W,brushless motor 1nm 310v 270W,dc motor 2600 rpm 310v 270W |
||
Product Description
80BL03F 270W 2600RPM CE ROHS ISO stable performance DC Brushless motor
-No-load speed: 3200±10% RPM
-Rated speed: 2600±200 RPM
-No-load current: 0.6A
-Rated current: 3A
-Resistance: 14.8 OHMS
-Insulation class: B
Electrical Specification:
| Specification | Unit | 80BL03F |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Rated Voltage | VDC | 310 |
| Rated Speed | Rpm | 2600 |
| Rated Current | A | 3 |
| Rated Torque | N.m | 1 |
| Rated Power | W | 270 |
| Peak Torque | N.m | 3 |
| Peak Current | Amps | 0.6 |
| Torque Constant | N.m/A | 1.02 |
| Back EMF constant | V/kRPM | 106.9 |
| Body Length | mm | 162.0 |
| Weight | Kg | 3.50 |
*Products can be customized by special request.
Wiring Diagram
| FUNCTION | COLOR | ||
| +5V | RED | UL1007 26AWG | |
| HALL A | YELLOW | ||
| HALLB | GREEN | ||
| HALLC | BLUE | ||
| GND | BLACK | ||
| PHASE A | YELLOW | AF0.75 | |
| PHASE B | GREEN | ||
| PHASE C | BLUE | ||
Mechanical Dimension
A BLDC motor takes the advantages from AC, DC and Universal motor types and combines them into one unit. It has the long life, low maintenance, quiet operation, and variable speed ability of an AC motor; the high starting torque and linear speed-torque curve of a DC motor; and like both AC & DC motors, it works well with gearboxes. Brushless DC motors have a high power density, second only to the Universal motor, and they have the best efficiency rating of 65 to 80 %.
Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
1. Are you a factory?
Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
