Mini Two Phase Stepper Motor Controller Card 48v 4.2A

Place of Origin China
Brand Name Hetai
Certification CE
Model Number HTD542
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 7~10 working days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Product Name Stepping Motor Driver Maximum Output Current 4.2A
Maximum Motor No-load Running Speed 4000RPM Use Occasion Avoid Dust, Oil And Corrosive Gases
Cooling Mode Natural Or Forced Cooling MAX Viration 5.9m/S2 Max
Working Temperature 0~+40°C Highest Environment Humidity 90%RH(No Condensation)
Net Weight 0.273 Kg Size 118*87.5*33mm
Basic Frequency 80MHZ Maximum Input Voltage 50VDC
High Light

2 Phase Stepper Motor Driver

,

stepper motor controller 48v

,

4a Stepper Motor Driver

Leave a Message
Product Description

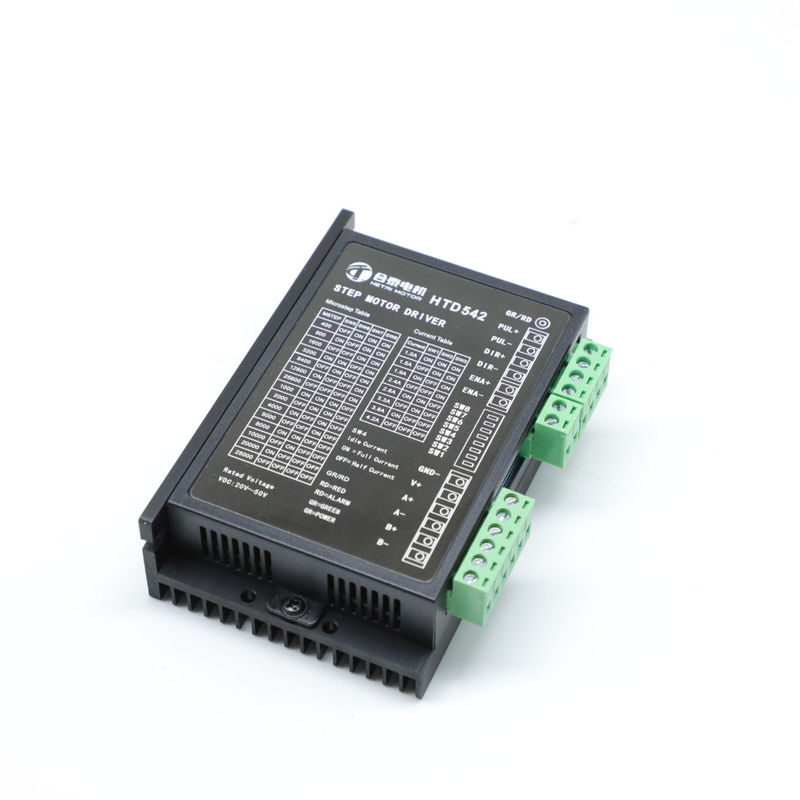

HTD542 Max 50V output 4.2A 2 phase digital stepper motor driver



The 2015-style HTD542 two-phase digital stepper motor driver recently launched by Hetai Electrical Appliance Co., Ltd. features excellent performance, which is used to adapt to the three-phase 57 and 86 stepper motors so as to make the motors have excellent properties of high speed and large torque output, low speed, low vibration, low noise, low heat radiation, etc. Therefore, it is a product with the most excellent performance in the same industry at present.



Basic frequency: 80MHZ

Brand new ARM core M4 technology 32-bit processor

Maximum motor no-load running speed: 4000RPM

Maximum output current: 4.2A

Maximum input voltage: 50VDC

Maximum input pulse frequency: more than 2MHZ

Maximum number of subdivisions: 25000



Electrical Indicators



Drive parameters MIn Rated Max
Input voltage DC(V) 18 48 50
Drive current (A) 1.0 - 4.2
Input pulse frequency(Hz) 1 - 200k
Input pulse width (ns) 250 - 5E+8
External speed regulator (kΩ) 500 - -






Environmental indicators



Cooling method

Natural cooling or forced cooling

Use occasions

Avoid dust, oil and corrosive gases

Operating temperature

0°C--40°C

Environmental humidity

90%RH (no condensation)

Storage temperature

-10°C--70°C

Vibration

5.9m/S㎡ max







Mechanical Dimension







Mini Two Phase Stepper Motor Controller Card 48v 4.2A 0

Interface& Wiring Diagram



Mini Two Phase Stepper Motor Controller Card 48v 4.2A 1



Mini Two Phase Stepper Motor Controller Card 48v 4.2A 2



The stepper motor is widely used in CNC machine tools, medical equipment, engraving machines, 3D printer, electronic processing equipment, automated production lines, and other automated equipment.
