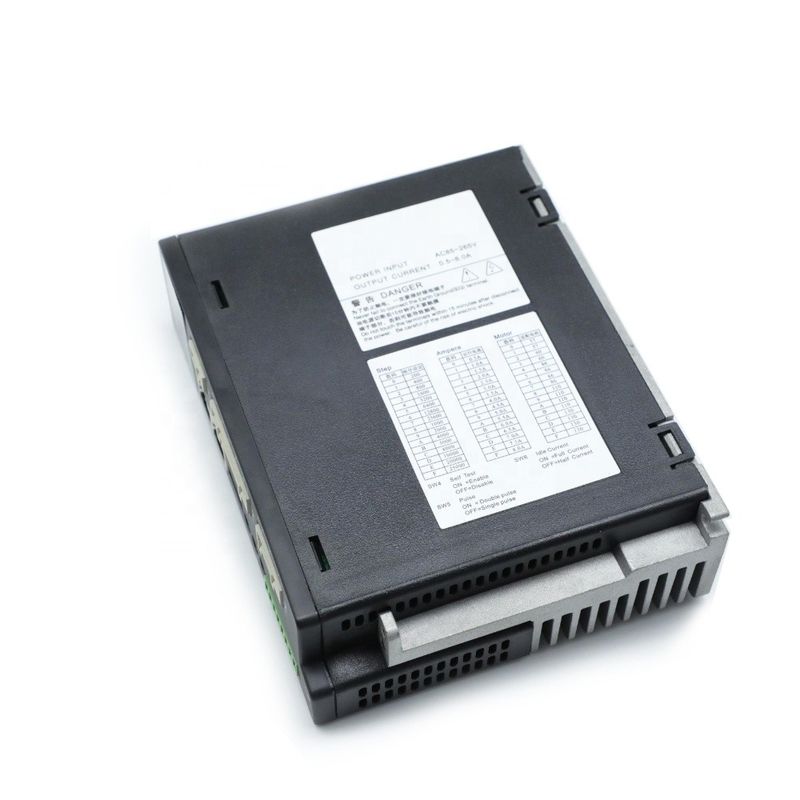

24vdc 2 Phase Stepper Motor Controller Chip 8A HTD2208A MAX220VAC

Place of Origin China
Brand Name Hetai
Certification CE
Model Number HTD2208A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 7~10 working days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Product Name Stepping Motor Driver Usage Match For Step Motor 86,110 And 130mm
Basic Frequency 80MHZ Cooling Mode Natural Or Forced Cooling
Use Occasion Avoid Dust, Oil And Corrosive Gases MAX Viration 5.7m/S2 Max
Working Temperature -10~+50°C Highest Environment Humidity 80%RH(No Condensation)
Net Weight 0.614 Kg Size 202.8*146.81*78mm
High Light

24vdc Stepper Motor Controller

,

Stepper Motor Controller 24v

,

8a stepper motor driver

Leave a Message
Product Description

HTD2208A MAX220VAC 8A digital Driver for 2 phase stepper motor CE mark



The 2015-style HTD2208A two-phase digital stepper motor driver recently launched by He Tai Electrical Appliance Co., Ltd. features excellent performance, which is used to adapt to the three-phase 86 and 110/130 stepper motors so as to make the motors have excellent properties of high speed and large torque output, low speed, low vibration, low noise, low heat radiation, etc. Therefore, it is a product with excellent performance in the same industry at present.



●Basic frequency: 80MHZ

●Pulse, direction, enable 5~24V input

●Brand new ARM core M4 technology 32-bit processor

●Maximum input pulse frequency: more than 2MHZ

●Maximum output current: 8A

●Maximum input voltage: 80~265VAC

●Maximum number of subdivisions: 25600



Electrical Indicators



Drive parameters MIn Typical Max
Input voltage DC(V) 80VAC 265VAC 220VAC
Drive current (A) 0.5 - 8
Input pulse frequency(Hz) 1 - 1







Environmental indicators

Cooling method

Natural cooling or forced cooling

Use occasions

Avoid dust, oil and corrosive gases

Operating temperature

0°C-+40°C

Environmental humidity

90%RH (no condensation)

Storage temperature

-10°C- +70°C

Vibration

5.9m/S㎡ max
