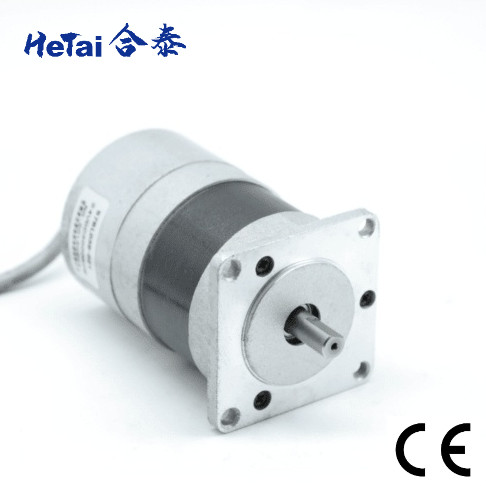

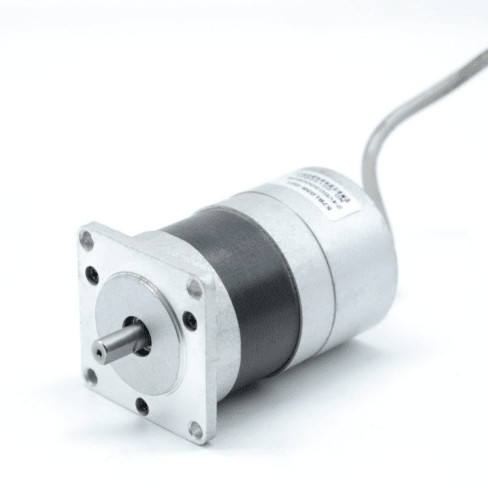

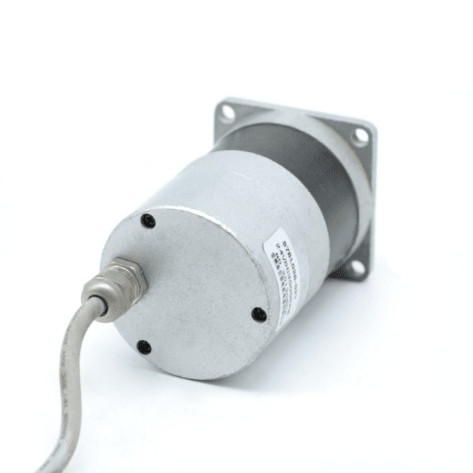

Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021

Name: Multi Metal Brushless Dc Motor Nema 23 57mm 24V 56W 57BL03B-021
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 57BL03B-021
Availability: InStock

Brand Name:	HeTai
Model Number:	57BL03B-021
MOQ:	50
Price:	USD
Delivery Time:	25 DAYS
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Brushless DC Motor

Winding Type:

Star

Hall Effect Angle:

120° Electrical Angle

Nominal Voltage:

24 VDC

Resistance:

0.8 OHMS

Insulation Class:

No-load Speed:

3800± 10%

No-load Current:

0.5 AMPS

Rated Speed:

3000± 10%

Rated Torque:

0.18 N.m

Ambient Temperature:

-20℃~+50℃

Max Radial Force:

75 N (10mm From Front Flange)

Max Axial Force:

15 N

IP Level:

IP40

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

10000 PCS/MONTH

Highlight:

Multi Metal Brushless Dc Motor 24V

Nema 23 Brushless Dc Motor

57mm Bldc Brushless Motor

Product Description

57mm 24V Multi-metal 56W57BL03B-021 High QualityBrushless Dc Motor Nema 23

Brushless dc motors have significantly higher efficiency and performance, and a lower susceptibility to mechanical wear than their brushed counterparts. So if you're someone who does a fair amount of serious projects that require a drill, going with a brushless could make a lot of sense. It'll give you higher speeds and power, and require less maintenance.

The 57BL series is a cylindrical BLDC motor. The speed range is from 2500 rpm-3000 rpm, and the rated torque is from 0.057 NM to 0.44 NM.

The advantage of the 57 series is that:
● Excellent speed stability
● Compact and high power
● High efficiency and energy saving
● Low temperature rise, low noise, low vibration
● Long life and low maintenance cost

Electrical Specification

Specification	Unit	57BL03B-021
Nominal Voltage	VDC	24
Resistance	OHMS	0.8
Rated Speed	Rpm	3000± 10%
Rated Torque	N.m	0.18
No-load Speed	Rpm	3800± 10%
No-load Current	Amps	0.5
Torque Constant	N.m/A	0.06
Back EMF constant	V/kRPM	6.3
Insulation Class		B

Wiring Diagram

ELECTRICAL CONNECTION TABLE
FUNCTION	COLOR
+24V	RED
GND	BLACK
AVI	BLUE
DIR	YELLOW

Mechanical Dimension

Technial Specification

		Model	Model	Model	Model	Model	Model
Specification	Unit	57BL01G	57BL02A	57BL03B	57BL04A	57BL05A	57BL06
Number Of Phases	Phase	3	3	3	3	3	3
Number Of Poles	Poles	4	4	4	4	4	4
Rated Voltage	VDC	24	24	24	24	24	24
Rated Speed	Rpm	2500	3000	3000	3000	3000	3000
Rated Current	A	0.77	1.87	3.17	3.67	5.33	7.00
Rated Torque	N.m	0.057	0.11	0.18	0.22	0.33	0.44
Rated Power	W	15	34.5	56	69	104	138
Peak Torque	N.m	0.17	0.33	0.54	0.66	0.99	1.32
Peak Current	Amps	2.3	5.6	9.5	11	16	21
Torque Constant	N.m/A	0.074	0.059	0.057	0.060	0.062	0.063
Back EMF constant	V/kRPM	7.75	6.2	5.9	6.3	6.5	6.6
Body Length	mm	41.5	46.5	56.5	66.5	86.5	106.5
Weight	Kg	0.35	0.44	0.56	0.67	0.95	1.18

*Products can match gearbox 42,52,56

*Products can be customized by special request.

Product Range

Product Name	External Diameter	Voltage Range	Power Range	Power Range	Rated torque
	Sever Motor	40 mm-130 mm	24V, 36V, 48V, 310V	100 W-3000 W	0.12 N.m-20 N.m
	Product Name	External Diameter	Rated Tolerance Torque	Momentary Tolerance Torque	Efficiency
	Planetary Gearbox&Gearbox Motor	22 mm-63 mm	0.1 N.m-20 N.m	0.3 N.m-60 N.m	65 %, 72%, 81%
	Product Name	External Diameter	Speed Range	Power Range	Rated torque
	Dc Brushless Motor	28 mm-110 mm	300 Rpm-10000 Rpm	8 W-2000 w	0.02 N.m-6.5 N.m
	Product Name	External Diameter	Step angle	Holding Torque	Inductance Range
	Stepping Motor	28 mm-110 mm	0.9, 1.2, 1.8	1 Kg.cm-33 Kg.cm	1 mh-42 mh

Brushless Motor Final Inspection
