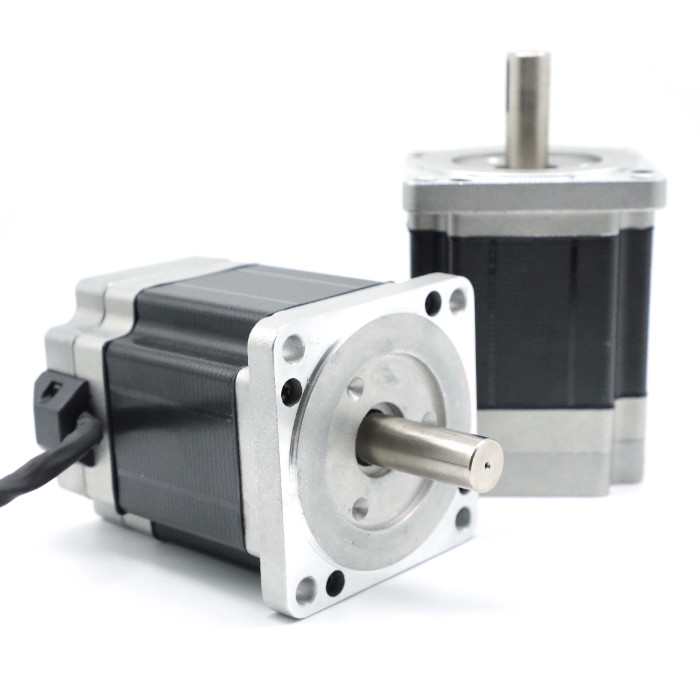

Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 86BLF06C
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Brushless DC Motor No. Of Poles 8 Poles
No. Of Phase 3 Phase Rated Voltage 48V
Rated Current 16.33A Rated Speed 3000RPM
Rated Torque 1.8N.M Rated Power 565W
Winding Type Star Insulation Class B
High Light

Brushless DC Motor 86mm

,

Nema 34 Brushless DC Motor 550w

,

86mm Nema 34 Bldc Motor

Leave a Message
Product Description

Nema 34 86mm 550w nema34 factory supply stable performance bldc motor brushless motor


As an experienced brushless supplier, Hetai has fully understood the advantage Brushless DC motors (BLDC) that feature high efficiency and excellent controllability and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types. The advantage of the brushless motor is that the low noise can be customized and the performance is stable.


Electrical Specification Of Brushless DC Motor

Product Name:
Brushless Motor
Dielectric Strength:
500V AC 1minute
Ambient Temperature:
-20℃~50℃
Insulation resistance:
100MΩ Min.500V DC
Voltage(VDC):
48(VDC)
Power(W):
565
Rated Speed(RPM):
3000
Rated Torque(N.M):
1.8
Rated Current(A):
16.33



Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 0



Mechanical Dimension Of Brushless DC Motor

Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 1
Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 3
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 4
Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 5

Market Range Of Hetai
Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 6
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

CNC Center Of Hetai
 Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 7Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 8

Automatic Assembly Line
Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 9

Packing&Delivery
Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 10Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 11
Certificate Of Brushless DC Motor
Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 12Nema 34 Stable Performance Bldc Brushless DC Motor 86mm 550w 13
