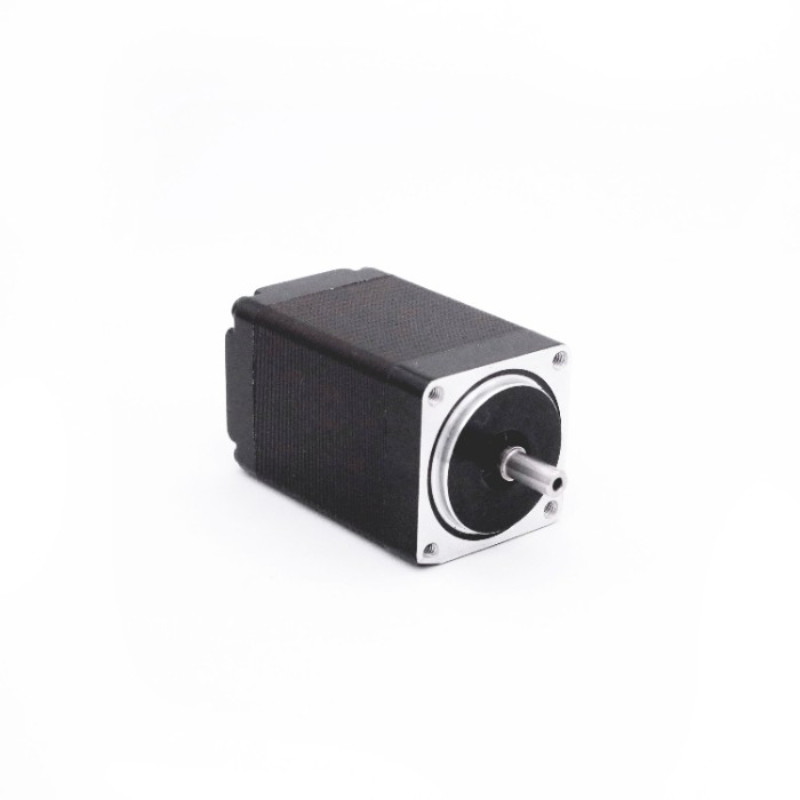

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm

Brand Name:	HeTai
Model Number:	28BYGH102-01
MOQ:	50
Price:	USD
Delivery Time:	28-31 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Hybrid Stepper Motor

Step Angle:

1.8 °

Rated Voltage:

3.9V

Current:

0.67A

Lead Wire:

Dielectric Strength:

500VAC 1 Minute

Resistance:

6.3 Ω

Holding Torque:

0.6 Kg.cm

Inductance:

3.2mH

Certification:

CE ROHS ISO

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000 PCS/MONTH

Highlight:

Low Noise Hybrid Stepper Motor 28mm

Low Noise Stepping Motor 28mm

ROHS Nema11 Hybrid Stepper Motor

Product Description

Hetai Nema11 Hybrid Stepper Motor 28mm High Quality Low Noise Stepping Motor For Sale

Advantages of step motor:

1. When the motor is stopped, it has the biggest torque (when the winding is exciting);

2. Because the accuracy of each step is three to five percent, and the one -step error will not be accumulated to the next step, there is a good position accuracy and repeatability of exercise;

3. Just connect the load directly to the rotation of the motor can also be rotated simultaneously at low speed;

4. Because the speed is proportional to the pulse frequency, there is a wider speed range.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500VAC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	4
Voltage (V)	3.9
Current (A/Phase)	0.67
Holding Torque (N.m)	0.6

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 0

Mechanical Dimension Of Hybrid Stepper Motor

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 1

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 3

Market Range of Hetai

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 4

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas

Europe:France,Germany,Italy,Spain, Norway etc.

North America: USA,Canada

Automatic assembly line

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 5

CNC Center

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 6

Inspection Equipment

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 9

Packing&Delivery

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 10

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 11

Certificate Of Hetai

Nema11 Hybrid Stepper Motor Low Noise Stepping Motor 28mm 12
