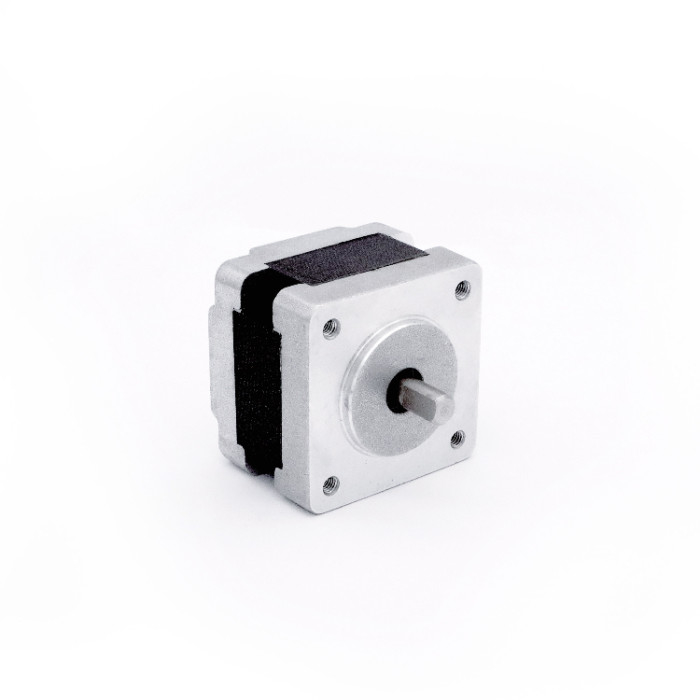

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS

Name: 35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 35BYGX200A
Availability: InStock

Brand Name:	HeTai
Model Number:	35BYGX200A
MOQ:	50
Price:	USD
Delivery Time:	28-31 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Hybrid Stepper Motor

Step Angle:

1.8 °

Lead Wire:

Rated Voltage:

4.2 V

Current:

Resistance:

4.2 Ω

Inductance:

5.5 MH

Holding Torque:

1.25 Kg.cm

Motor Height:

29 Mm

Motor Weight:

0.12 Kgs

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000 PCS/MONTH

Highlight:

Hybrid Stepper Motor 4.2OHMS

Nema13 Mini Hybrid Stepper Motor

ROHS High Torque Stepper Motor

Product Description

Hetai 35BYGX200A 4.2OHMS nema 13 factory direct sale high torque mini stepper motor hybrid stepper motor

Stepper motor is a kind of induction motor. Its working principle is to use electronic circuit to turn DC power into time-sharing power supply, and multi-phase sequence control current. Use this current to power the stepper motor, so that the stepper motor can work normally. The driver is a time-sharing power supply for the stepper motor, a multi-phase sequence controller.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	4
Voltage (V)	4.2
Current (A/Phase)	1
Holding Torque (Kg.cm)	1.25Kg.cm

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 0

Mechanical Dimension Of Hybrid Stepper Motor

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 1

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 3

Market Range of Hetai

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 4

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas

Europe:France,Germany,Italy,Spain, Norway etc.

North America: USA,Canada

Stator Winding Machine

CNC Center

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 7

Inspection Equipment

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 10

Packing&Delivery

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 11

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 12

Patent Certificate

35BYGX200A High Torque Mini Hybrid Stepper Motor Nema 13 4.2OHMS 13
