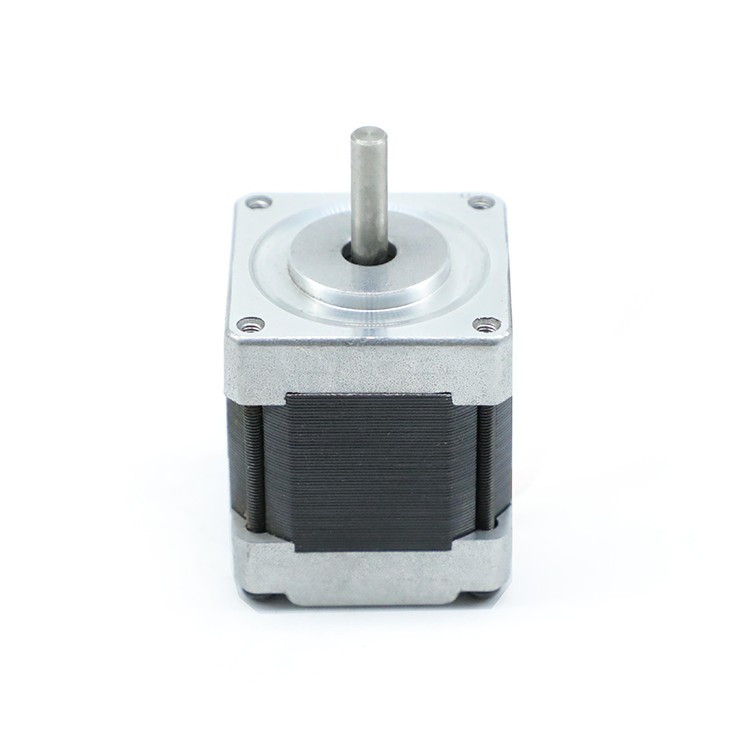

39BYGX100A NEMA16 Hybrid Stepper Motor 1.8deg 12V 0.4A 22mm

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 39BYGX100A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 12V
Current 0.4A Resistance 30 Ω
Inductance 20 MH Holding Torque 1.3 Kg.cm
Motor Height 22 Mm Motor Weight 0.12 Kgs
High Light

NEMA16 Hybrid Stepper Motor 22mm

,

1.8deg Hybrid Stepper Motor

,

0.4A 1.8 Degree Stepper Motor

Leave a Message
Product Description

NEMA16 hot sale 39BYGX100A 12V 0.4A 39mm wholesale high quality high torque stepper motor



Advantages of stepper motors
1. The angle of motor rotation is proportional to the number of pulses;
2. The motor has the maximum torque when it stops (when the winding is excited);
3. Since the accuracy of each step is 3% to 5%, and the error of one step will not be accumulated to the next step, it has better position accuracy and motion repeatability;
4. Excellent start-stop and reverse response.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
1.8°
Lead wire
4
Voltage (V)
12
Current (A/Phase)
0.4
Holding Torque (Kg.cm)
1.3 Kg.cm



39BYGX100A NEMA16 Hybrid Stepper Motor 1.8deg 12V 0.4A 22mm 0


Mechanical Dimension Of Hybrid Stepper Motor

39BYGX100A NEMA16 Hybrid Stepper Motor 1.8deg 12V 0.4A 22mm 139BYGX100A NEMA16 Hybrid Stepper Motor 1.8deg 12V 0.4A 22mm 2
