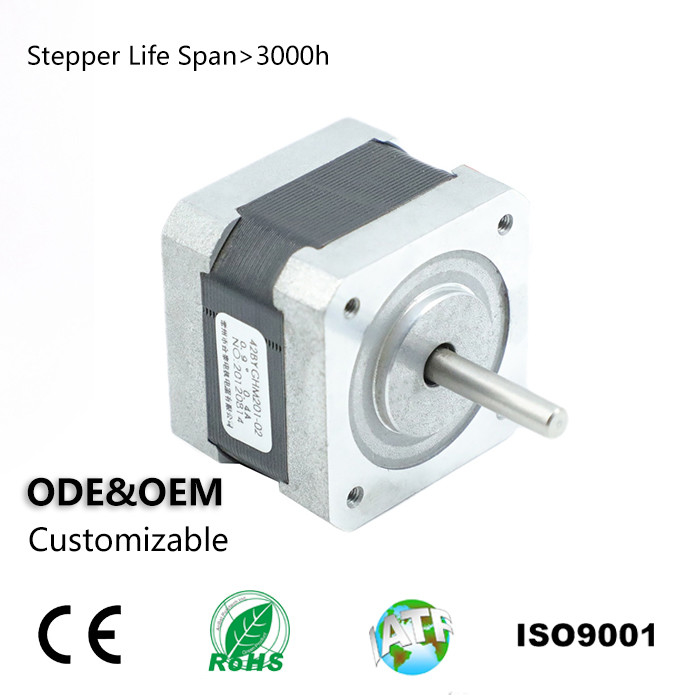

Hybrid Nema17 Stepper Motor High Torque 42BYGHM805

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGHM805
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Rated Voltage 3.5V
Step Angle 0.9 ° Holding Torque 3.7 Kg.cm
Lead Wire 4 Inductance 7.6mH
Resistance 3.5 Ω Rated Current 1A
Motor Height 48 Mm Motor Weight 0.34 Kg
High Light

Hybrid Nema17 Stepper Motor

,

High Torque Nema17 Stepper Motor

,

3.7 Kg.cm Hybrid Stepper Motor

Leave a Message
Product Description

High quality 42BYGHM805 nema17 stepper motor high torque low price hybrid stepper motor

1. The angular displacement of the stepper motor is proportional to the number of electrical pulses, so the speed of the stepper motor is also proportional to the pulse frequency. Within the load capacity range of the stepper motor, its step angle and speed are not affected by voltage fluctuations and load changes, nor are they affected by environmental conditions such as temperature, air pressure, shock and vibration, which are only related to the pulse frequency. Therefore, stepper motors are suitable as actuators in open-loop systems.
2. Some types of stepper motors still have detent torque when the power supply is stopped. Some types of stepper motors still keep the power-on state of some phase windings after stopping, and they also have self-locking ability and do not require mechanical braking devices.
3. The step angle of the stepper motor has a large variation range. In the case of a small step angle, it is often possible to obtain low-speed operation without a reducer.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
0.9°
Lead wire
4
Voltage (V)
3.5
Current (A/Phase)
1
Holding Torque (Kg.cm)
3.7 Kg.cm



Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 0


Mechanical Dimension Of Hybrid Stepper Motor

Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 1



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 3



Market Range of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada

High quality material
Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 5Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 6

Stator Winding Machine
Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 7Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 8
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.


CNC Center

Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 9Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 10Hybrid Nema17 Stepper Motor High Torque 42BYGHM805 11



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition
