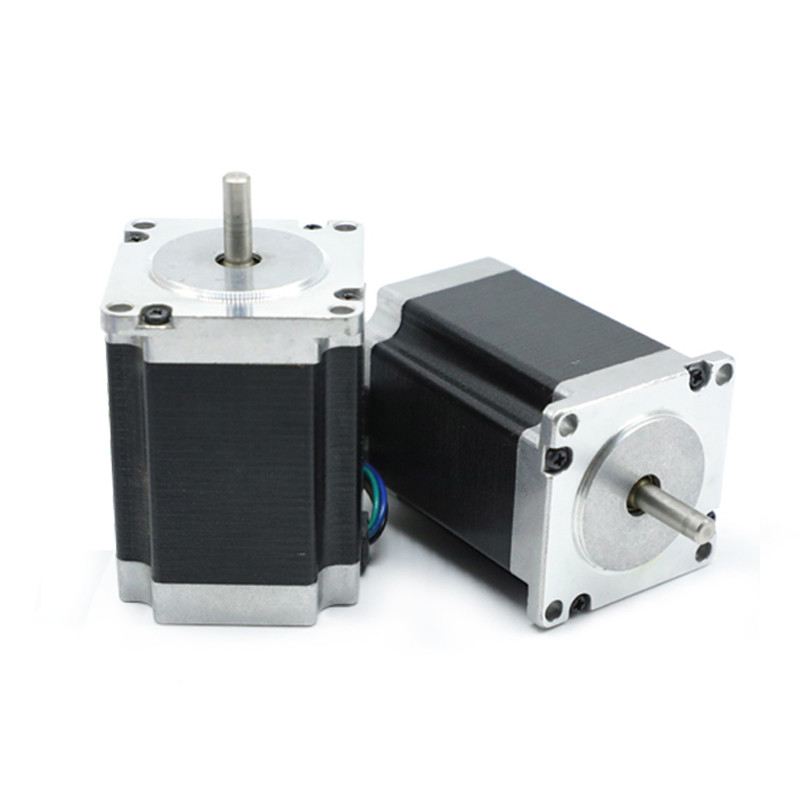

High Performance Hybrid Stepping Motor Nema23 57mm 57BYGH001A

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 57BYGH001A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Holding Torque 3.5 Kg.cm
Rated Voltage 6V Rated Current 0.5A
Inductance 20mH Resistance 12 Ω
Motor Height 41 Mm Motor Weight 0.45 Kg
High Light

57BYGH001A Hybrid Stepping Motor

,

57mm Nema23 Hybrid Stepping Motor

,

Hybrid 1.8deg Stepper Motor

Leave a Message
Product Description

Factory direct sale Nema23 57mm 57BYGH001A high performance stepping motor hybrid stepper motor

1. The accuracy of the stepping motor is generally 3-5% of the stepping angle.
2. The maximum allowable temperature of the stepper motor depends on the demagnetization point of different motor magnetic materials. When the temperature of the stepper motor is too high, the magnetic material of the motor will demagnetize, resulting in a drop in torque or even loss of steps.
3. The torque of the stepper motor will decrease as the speed increases. When the stepping motor rotates, the inductance of each phase winding of the motor will form a back electromotive force; the higher the frequency, the greater the back electromotive force.
4. The stepper motor can run normally at low speed, but it cannot be started above a certain speed, accompanied by whistling.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
1.8°
Lead wire
4
Voltage (V)
6
Current (A/Phase)
0.5
Holding Torque (Kg.cm)
3.5 Kg.cm



High Performance Hybrid Stepping Motor Nema23 57mm 57BYGH001A 0


Mechanical Dimension Of Hybrid Stepper Motor

High Performance Hybrid Stepping Motor Nema23 57mm 57BYGH001A 1
