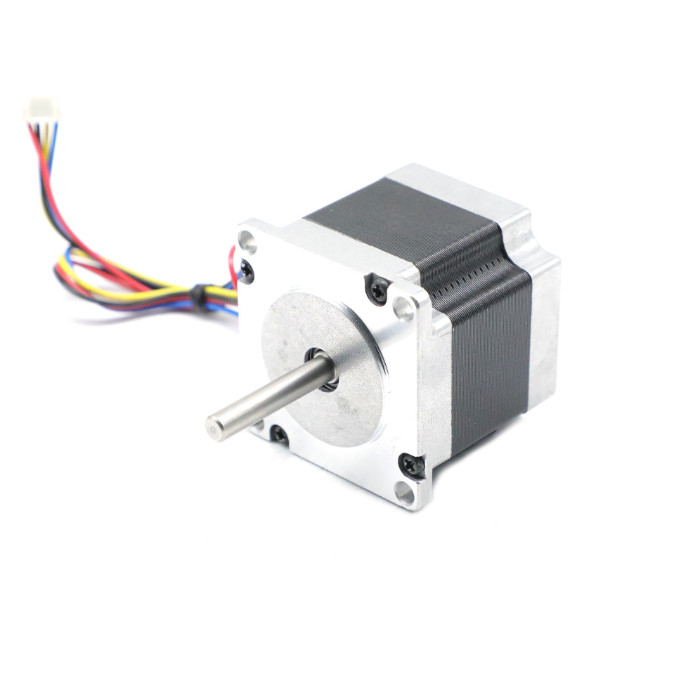

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor

Name: High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 57HN46-005A
Availability: InStock

Brand Name:	HeTai
Model Number:	57HN46-005A
MOQ:	50
Price:	USD
Delivery Time:	28-31 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Hybrid Stepper Motor

Step Angle:

1.8 °

Lead Wire:

Rated Voltage:

2.3V

Rated Current:

4.2A

Resistance:

0.55Ω

Inductance:

1.5mH

Holding Torque:

10.6 Kg.cm

Motor Height:

46 Mm

Motor Weight:

0.54 Kg

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000 PCS/MONTH

Highlight:

4.2A Hybrid Stepper Motor

4Wire Hybrid Stepper Motor

46mm Nema23 Stepping Motor

Product Description

Hetai hot sale High Performance cheap price 57HN46-005A Hybrid Stepper Motor Nema23 Stepping motor

All motors convert electrical power, volts and amps, into mechanical power, torque and speed. The unique feature of stepper motors is that they can be very accurately controlled in terms of speed and rotation angle. Stepper motors are brushless DC motors, and as such, require an electronic driver to commutate the windings. In order to control the rotation, electrical pulses are input into the driver, and the motor rotates one step for each pulse. The excellent stability of the motor results in a simple control circuit, since the motor can be run open-loop and no feedback is required.

There are three types of stepper motors; variable reluctance, permanent magnet and hybrid stepper motors. This article will focus on hybrid stepper motors as well as Oriental Motor's AlphaStep Hybrid Control System for stepper motors.

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500VDC
Step Angle	1.8°
Lead wire	4
Voltage (V)	2.3
Current (A/Phase)	4.2
Holding Torque (Kg.cm)	10.6 Kg.cm

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 0

Mechanical Dimension Of Hybrid Stepper Motor

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 1

Market Range of Hetai

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 2

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas

Europe:France,Germany, Italy, Spain, Norway etc.

North America: USA,Canada

Hetai's Customers

A variety of types of stepper motors are available for you to choose, support customization.

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 4

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 5

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

High Quality Material

Stator Winding Machine

Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.

CNC Center

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 11

Packing&Delivery

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 14

High Performance 57HN46-005A Hybrid Stepper Motor Nema23 Stepping Motor 15

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.
